Product Core Brief

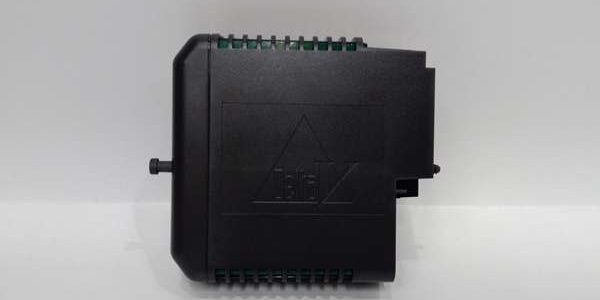

- Model: VE4003S2B1 (cross PN KJ3222X1-BA1, 12P2532X062)
- Brand: Emerson DeltaV
- Series: M-Series Traditional Rack I/O Series 2
- Core Function: 8-channel optically isolated analog input card to acquire 4–20mA signals from HART smart pressure, flow and temperature transmitters
- Product Type: Plug-in rack-mounted AI I/O module, mates with KJ4001X1-CA1 standard termination base
- Key Specs: 8 isolated channels | HART transparent tunneling | 16-bit resolution | 1500VDC channel-to-system isolation
- Note: New original surplus unit; physically incompatible with DeltaV S-series I/O carrier racks
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 8 independent galvanically isolated analog input channels |
| Standard Signal Span | 4–20mA; full measurement range 1–22.5mA overrange detection |
| D/A Conversion Resolution | 16-bit per channel |
| Channel Isolation Rating | 1500VDC optical isolation between field loop and LocalBus backplane |
| HART Support | HART v7 transparent pass-through for AMS device diagnostics and calibration |
| LocalBus Power Draw | 120mA typical simplex, max 150mA at 12VDC rack supply |
| Field Loop Drive | Regulated 24VDC wetting power, max 750Ω allowable transmitter load |
| Hot-Swap Compatibility | Safe live insertion/removal in energized safe zone I/O racks |
| Operating Temperature | -40°C to +70°C operational; -40°C to +85°C storage |
| Environmental Grade | ISA S71.04 G3 corrosive gas resistant, full PCB conformal coating |
| Physical Dimensions | 107mm W × 41mm H × 105mm D; net weight 0.20kg |
| Vibration & Shock | 1mm pp (2–13.2Hz); 0.7g constant (13.2–150Hz); 10g half-sine 11ms shock |
| Hazardous Certifications | FM Class I Div2, ATEX Ex ec IIC Gc (Zone 2 cabinet installation only) |
| Compatibility Restriction | Only fits M-series 8-slot I/O carriers, no S-series mechanical fit |
Product Introduction
This rack-mounted analog input hardware collects 4–20mA process signals from field smart transmitters for DeltaV regulatory control loops. Per-channel optical isolation eliminates ground loop noise on long multi-conductor field cables routed near motor control centers.Built-in HART tunneling lets technicians pull device fault codes, calibration data and process secondary variables directly from the DCS workstation without handheld communicators. Per-channel open/short circuit detection generates real-time alarm flags for broken wiring without field site inspections.
QA & Testing SOP
- Incoming Inspection: Match serial numbers against OEM factory batch logs; inspect gold LocalBus edge connectors for oxidation and conformal coating for peeling. Reject units with cracked plastic housings or bent pin headers.
- Live Functional Testing: Install on matching M-series carrier, supply rack 12VDC LocalBus power via Fluke 115 multimeter. Feed precision 4–20mA signal sweep to each channel and validate consistent value reporting to DeltaV HMI.
- Isolation & Fault Stress Test: Run 1500VDC hipot isolation test between each channel and system ground (>100MΩ pass threshold); simulate wire short/open states to confirm open-loop fault alarms trigger correctly.
- Firmware Logging: Capture factory Series 2 firmware revision through DeltaV Diagnostic Console and save screenshots tied to the unit serial number for full traceability.
- Final QC & Packaging: Blow PCB surfaces with dry nitrogen to remove industrial dust; seal in static-shield bag with printed test report containing 24-hour continuous runtime stability data.
Installation Pitfalls & Guide
❗ ESD Component Failure: Ungrounded contact with backplane pins destroys analog front-end A/D chips; component replacement labor exceeds $2,300. Always attach a grounded anti-static wrist strap to cabinet safety ground before handling the card.❗ Cross-Series Carrier Mismatch: This hardware only seats on M-series racks. Forced insertion into S-series carriers bends backplane gold pins and disables full rack LocalBus communication.❗ Zone 0/1 Hazardous Area Misuse: The card holds only Div2 safety certification. Deploying it in Zone 0 or 1 flammable gas zones voids all safety approvals and creates ignition risks.❗ Overloaded Field Loops: Transmitter load resistance above 750Ω drops loop voltage below the HART communication threshold, triggering intermittent device offline alarms during process transients.❗ EMI Wiring Separation Failure: Run 240VAC power cables a minimum 10cm apart from analog signal wiring. Parallel routing causes persistent analog value jitter and corrupted HART diagnostic data.
4-Step Replacement Guide
- Pre-install: Activate control loop bypass logic on the DeltaV workstation for all 8 associated field transmitter loops; photograph terminal block field wiring layout for reference. Hot-swap is permitted in safe zone cabinets.
- Removal: Release the card’s front retention latch, pull the unit straight outward horizontally to avoid bending backplane edge pins.
- Install: Align the new module’s gold backplane connector with the carrier slot, push fully until the retention latch clicks into locked position. Confirm mechanical key matches CA1 termination block profile.
- Power-on Test: Clear all loop bypasses; sweep 4mA, 12mA, and 20mA reference signals to validate stable analog readings, then pull HART device diagnostic data to confirm unbroken field communication.
FAQ
Q: Can each channel power standard 2-wire HART transmitters?A: Yes, the internal 24VDC loop supply delivers minimum 15VDC at 20mA output, compatible with all industry standard 2-wire smart transmitters within the 750Ω maximum load limit.Q: Does hot-swapping the card disrupt other I/O modules on the same carrier rack?A: The M-series carrier includes buffered hot-swap circuitry; removing or inserting the unit while rack power stays energized will not interrupt signal processing for other installed I/O cards.Q: What physical limitation blocks use with S-series DeltaV racks?A: M-series and S-series carriers use incompatible backplane pinout geometries and LocalBus signaling timings; forced installation permanently damages the carrier’s backplane connector pins.Q: What hardware behavior signals a failed unit?A: One or multiple channels report constant full-scale or zero values, persistent open-loop fault flags on healthy field wiring, full LocalBus communication timeout on the carrier rack, or missing front-panel channel status LED indicators.Q: What warranty coverage applies to new surplus stock?A: A 12-month limited warranty covers factory PCB and assembly defects. Damage from ESD mishandling, overloaded field loops, field-side overvoltage, or deployment in unapproved hazardous zones is excluded from coverage.Q: Can multiple HART transmitters wire in parallel on a single channel?A: No, parallel instruments increase total loop resistance and pull supply voltage below HART operating limits, creating intermittent device disconnection and lost diagnostic data.
