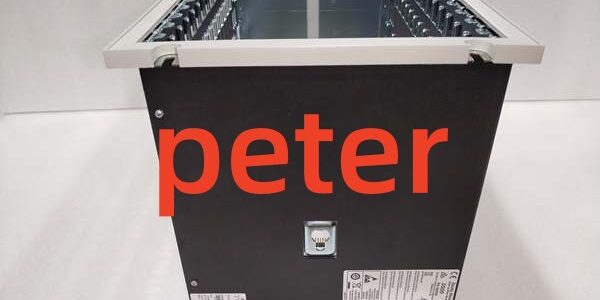

Product Core Brief
- Model: 3500/05 (configurable suffix format: 3500/05-A-B-C-D-E)
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Turbine Supervisory Instrumentation (TSI) Protection Platform
- Core Function: Passive backplane chassis that mechanically mounts, distributes regulated 24VDC power, and enables inter-module high-speed bus communication for all 3500 series monitoring, relay, and communication hardware
- Product Type: Empty modular system rack chassis (no signal processing or power conversion onboard)
- Key Specs: Passive natural convection cooling | Dual half-height power supply bays | 1500VAC backplane channel isolation
- Condition: New Original (New Surplus), active OEM catalog part with no scheduled obsolescence
Key Technical Specifications
| Parameter | Defined Value |
|---|---|
| Available Rack Sizes | Full-size (01): 14 full module slots; Mini (02): 7 full module slots |
| Supported Mount Configurations | Full-size: 01 Panel, 02 19in EIA Rail, 03 Bulkhead (front wiring access); Mini: 04 Panel, 05 EIA Rail (adapter plate required); Bulkhead unavailable for mini units |
| Reserved Left Slots | Two half-height bays for 3500/15 power supplies; Slot 1 dedicated exclusively for 3500/20 TDI gateway module |
| Backplane Construction | Multi-layer passive copper bus, isolated power and signal trace groups |
| Mandatory Cooling Clearance | Minimum 50mm unobstructed vertical space above and below chassis for passive airflow |
| Full-Size Physical Dimensions | 482.6mm W × 274.3mm H × 349.2mm D; empty weight 6.3kg |
| Mini-Rack Physical Dimensions | 304.8mm W × 274.3mm H × 349.2mm D; empty weight 2.0kg |
| Operating Ambient Range | -30°C to +65°C standard cabinet; conformal coated variants rated -40°C to +85°C offshore |
| Front Panel Ingress Rating | IP20, prevents accidental finger contact with live backplane gold pins |
| Max Load Rating | Fully populated slot layout supported only with dual matched redundant 3500/15 power supplies |
| Compliance Standards | Mechanical design aligned with API 670; optional CE, CSA Class I Div 2, ATEX Zone 2 agency approvals via suffix selection |
Product Introduction
This chassis acts as the foundational mechanical and electrical backbone for every complete 3500 machinery protection system. Its integrated passive backplane eliminates point-to-point hardwiring between modules, sharing synchronous Keyphasor timing, alarm flags, and real-time measurement data across all installed cards.
The unit ships empty with no included power supplies or I/O modules. Its three mounting formats remove custom cabinet machining costs, while fan-free passive cooling cuts routine maintenance for unmanned compressor and pump stations. Separate mini and full-size variants match compact auxiliary panels and full multi-bearing turbine monitoring layouts respectively.
Firmware/Software Versions & Upgrade Notes
All modules installed inside the chassis must run matching cross-compatible M-series firmware revisions. Mixed legacy and M-series hardware can physically seat in the backplane, but mismatched firmware builds create persistent TX/RX bus faults and disable TMR redundant voting logic.Mini-size units require 3500/01 System 1 software v2.70 or newer to support full slot configuration and diagnostic reporting; older software revisions fail to recognize mini rack slot mapping.No firmware resides on the chassis itself; all bus communication logic lives on individual monitor, relay, and gateway modules. Always back up full rack channel configuration before swapping any module to avoid rework of transducer scaling and alarm thresholds.
Frequently Asked Questions (FAQ)
- Is hot-swapping individual monitor modules safe while the chassis remains energized?Yes, all full-height and half-height 3500 modules support hot-swap operation with the unit powered. The passive backplane maintains isolated power and signal lanes for remaining active hardware during card removal. The rear terminal bases paired with each front monitor card cannot be detached while powered, as this breaks field transducer wiring isolation.
- Is this chassis obsolescent, and are direct drop-in replacement frames available?The chassis remains an active OEM catalog item with no end-of-life timeline. No revised second-generation chassis exists; all current build batches use identical backplane and slot geometry as older production units for full backward compatibility.
- Will stored channel alarm thresholds or transducer mapping erase if the chassis loses full rack power?No, all measurement scaling, trip limits, and voting logic store in non-volatile flash memory on each individual monitor module and the Slot1 TDI gateway. The frame itself contains zero memory storage components, so full power loss does not permanently erase any system configuration data.
- What warranty terms separate New Surplus inventory from refurbished alternatives?New Surplus chassis carry a 12-month functional warranty covering backplane continuity, slot rail alignment, and chassis grounding integrity. Refurbished units typically offer 3–6 month limited coverage and carry unquantified risks of worn backplane gold contacts, bent slot rails, and unseen thermal fatigue from prior field operation that cause intermittent bus communication faults.
- Why is New Surplus pricing higher than generic used/refurbished rack listings?All New Surplus chassis complete standardized QC validation: serial traceability cross-check against OEM production logs, 24-hour thermal soak bench testing with dummy load modules, 500V megger insulation testing verifying >10MΩ backplane-to-ground isolation, full continuity scan of every slot trace, and anti-static sealed packaging. Refurbished inventory skips this multi-step validation workflow, introducing unplanned downtime risk for safety-critical turbine and compressor protection racks.
- Can mini-rack modules physically plug into a full-size 3500/05 frame?No, mini-rack hardware uses distinct edge connector pinouts and form factor geometry that prevents seating in full-size slot guides. The two chassis variants have non-interchangeable module hardware with no cross-compatibility between slot layouts.
- Does the chassis store vibration waveforms, overspeed fault snapshots, or long-term trending logs locally?No, the passive backplane frame has no on-board data processing or memory hardware. All transient fault capture, historical trending, and event log storage functions are exclusive to the Slot1 3500/20 TDI master communication module installed inside the left reserved bay of the chassis.
