Product Core Brief

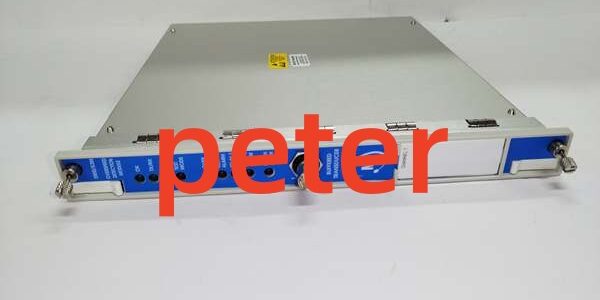

• Full Model: 3500/42M, Front Card PWA 176449-02
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: 4-channel universal monitor that supports eddy-current proximity probes and seismic Velomitor/accelerometers simultaneously, measuring shaft position, radial vibration, casing vibration, eccentricity, differential expansion, REBAM bearing wear and orbit diagnostics for steam/gas turbines and multi-stage compressors
• Form Factor: Single full-height hot-swappable split front/rear base M-series mixed I/O monitor; matches standard external termination rear base PN 140471-01, internal IS barrier rear base PN 135489 series
• Key Specs: 4 paired programmable channels | Dual transducer compatibility | 7.7 W typical power consumption
• Condition: New Original factory sealed with OEM production lead time; fully calibrated refurbished surplus stock ships within 3 working days



Key Technical Specifications

1. Channel Architecture: 4 independent inputs grouped into two configurable pairs (Ch1/Ch2, Ch3/Ch4), two different measurement tasks can run on one module
2. Supported Transducers
   • Proximity: All 3300 XL eddy-current probes (5/8/11/25 mm long-range displacement variants)
   • Seismic: Velomitor velocity sensors, piezoelectric accelerometers
3. Measurable Machine Parameters: Radial vibration, thrust position, eccentricity, differential expansion, REBAM bearing wear, shaft absolute vibration, circular acceptance orbit plots, acceleration/velocity spectra
4. Transducer Excitation: Regulated −24 VDC oscillator supply dedicated to proximity probe coils
5. Frequency Bandwidth: DC ~ 10 kHz; DC static range captures slow thermal shaft displacement
6. Analog Recorder Output: Isolated per-channel 4–20 mA scaled signal, max 550 Ω load resistance for DCS continuous trending
7. Front Buffered BNC Tap: Short-circuit protected coaxial output for field oscilloscope troubleshooting
8. Power Draw: 7.7 W steady-state load supplied via rack 24 VDC backplane bus
9. Galvanic Isolation: 1500 VAC separation barrier between each field input circuit and rack ground bus
10. Operating Ambient: −30 °C ~ +65 °C standard cabinet; conformal coated variants extend range to −40 °C ~ +85 °C offshore platforms
11. Physical Dimensions: 241.3 mm H × 24.4 mm W × 241.8 mm D; total assembly weight 0.91 kg
12. Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4, SIL 2 functional safety
13. Front Panel Indicators: OK (module health), TX/RX (backplane communication), BYPASS (channel inhibit mode)



Product Introduction

Large gas turbines and multi-stage compressors require simultaneous monitoring of shaft displacement (proximity probes) and casing vibration (seismic sensors). This module eliminates the need to deploy separate dedicated proximity-only (3500/40M) and seismic-only (3500/44M) monitor cards, saving valuable rack slots. It integrates native circular acceptance orbit logic to identify shaft rubs and bowing during cold startup transients, a feature unavailable on single-function monitor hardware.

Its split rear terminal base design allows maintenance technicians to rework transducer cabling, install intrinsic safety barriers, or replace damaged terminal blocks without extracting the front measurement card during planned machinery outages.

This hardware cannot process RTD, thermocouple or 4–20 mA process transmitter signals; dedicated 3500/60, 3500/61 and 3500/62 modules handle thermal and analog process variable measurements.Not recommended for pure differential expansion monitoring layouts with zero casing vibration testing, as the dedicated 3500/45 position monitor provides optimized long-range displacement filtering with lower slot cost.



Key Selling Points & Differentiators

1. Dual-transducer compatibility consolidates position and vibration measurement into one rack slot, cutting slot consumption by 50% compared to pairing discrete 3500/40M and 3500/44M cards.
2. Pairwise channel programming enables mixed measurement tasks on one unit (e.g., thrust position on Ch1/2, casing velocity on Ch3/4) matching multi-bearing heavy frame compressor and steam turbine layouts.
3. Built-in circular acceptance orbit monitoring captures subtle shaft rub and eccentricity faults that narrow-band single-function modules cannot resolve.
4. Native TMR triple redundant voting capability meets API 670 single-point failure elimination rules for critical turbomachinery emergency shutdown interlock design.
5. Refurbished surplus units carry a 12-month functional warranty covering analog signal conditioning, backplane communication and 4–20 mA linear scaling circuits; factory-new OEM assemblies ship with a full 36-month manufacturer performance warranty.
6. Per-channel adjustable Alert/Danger threshold time delays suppress nuisance alarms from transient startup load spikes without masking genuine bearing or shaft failure events.



Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM M-series production archives to filter counterfeit assemblies. Inspect PCB proximity oscillator & seismic ADC traces, rear base screw terminals, front BNC port, status LEDs and rack edge gold pins; record photos of corrosion or cracked substrates.
2. Live Bench Test: Mount front card with matched rear base (standard PN 140471-01 / IS barrier PN 135489 series) on calibrated full-size test rack with 24VDC power supply. Run 24-hour thermal soak test with simulated proximity gap and Velomitor vibration waveforms across all four channels, verify linear scaling and stable backplane data transmission to Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms >10 MΩ resistance between each transducer input terminal and rack protective ground; verify short-circuit/overvoltage protection trigger thresholds match OEM factory limits.
4. Firmware & Layout Backup: Flash latest M-series compatible firmware, log exact version number, archive blank 4-channel mixed proximity/seismic configuration file; record LED baseline behavior during TMR voting simulation for post-replacement troubleshooting.
5. Final QC & Packaging: Inject full-scale proximity gap and velocity test signals to validate linear 4–20 mA recorder output across full measurement range. Separate front card and rear base into anti-static foam, attach serialized QC Passed tag with timestamped linearity test data, pack into rigid shock-resistant cardboard crates. Bench calibration logs and raw signal readouts available upon formal written request.



Technical Risk Avoidance Section

1. Firmware Rev Mismatch RiskMismatched rack-wide M-series firmware triggers permanent TX/RX communication faults and disables TMR voting & orbit analysis logic. Unify all rack module firmware versions before replacement; never mix legacy/M-series firmware across slots.Field case: A combined-cycle power plant used mismatched firmware and lost all turbine thrust trip interlocks + orbit diagnostic data for 10 hours during startup commissioning.
2. Rear Terminal Base Mismatch RiskPairing front card with unmatched I/O base breaks mixed proximity/seismic wiring pinouts and removes built-in surge suppression, leading to erratic gap/vibration readings and false machinery fault alarms. Confirm rear base PN matches site wiring requirements (standard 140471-01 or IS barrier 135489 variants).
3. Dual-End Ground Loop Wiring RiskGrounding transducer coaxial cable shield at both rear base and machinery mounting boss creates low-frequency circulating noise that distorts analog linearity, triggering persistent nuisance high-vibration/high-gap alarms.Solution: Terminate cable shield only on the rack side of the wiring run.
4. ESD Damage RiskUngrounded tools touching rear base terminals or front BNC port discharge static and destroy delicate proximity/seismic ADC front-end circuits; OEM PCB repair labor exceeds $1,600 for production M-series hardware. Mandate grounded ESD wrist straps for all energized rack module service work.
5. Missing Mixed Measurement Configuration Backup RiskFailure to export channel pairing, transducer sensitivity and Alert/Danger threshold values before replacement resets all position/vibration protection limits to factory blank defaults, removing critical turbomachinery safety interlock coverage.

Summary: Only pair with OEM matched rear terminal base, unify rack firmware, single-point cable shield grounding, and retain channel configuration backups to eliminate nearly all mixed vibration/position measurement field failures.



FAQ

Q1: Does this module support hot-swap with the rack energized?A: Yes, the front mixed I/O measurement card supports hot-swap without full rack power loss. Existing channel alarm states hold the last valid value during swap, so machinery position/vibration trip interlocks do not drop out mid-service. The rear terminal base cannot be removed while energized.

Q2: Can this unit fully replace separate 3500/40M (proximity-only) and 3500/44M (seismic-only) modules to reduce rack slot consumption?A: Yes, one module processes both eddy-current shaft position and seismic casing vibration signals that would otherwise require two single-function monitor cards, cutting total slot usage in half for multi-measurement turbine/compressor racks.

Q3: What warranty applies to refurbished surplus stock of this mixed proximity/seismic monitor?A: Refurbished assemblies carry a 12-month functional warranty covering analog isolation circuits, backplane communication and channel fault detection hardware. Cosmetic surface scratches and minor terminal screw wear are excluded from warranty coverage. Factory-new OEM units carry a full 36-month manufacturer performance warranty.

Q4: Will rack power cycling erase stored channel pairing, transducer scaling, alarm thresholds and TMR voting configurations?A: No. All position/vibration linearization parameters, trip limits and redundant voting logic are stored in non-volatile onboard flash memory; power loss or full rack shutdown will not clear saved measurement configuration data.

Q5: Can RTD temperature sensors or 4–20mA process transmitters be wired directly to this module’s input channels?A: No. This hardware only processes proximity eddy-current and seismic velocity/acceleration signals. Thermal and analog process variable measurements require dedicated 3500/60, 3500/61 or 3500/62 monitor modules.

Q6: I operate an auxiliary pump rack that only requires two radial vibration channels. Is leaving the remaining two input channels unused acceptable?A: Yes. Unused channels draw no extra backplane power and create no cross-channel signal interference. Install factory blank terminal jumpers on empty terminals to block dust ingress inside the rear base and reduce long-term insulation degradation.

Q7: Does this module locally store transient shaft orbit or vibration fault waveform snapshots on its PCB?A: No. All timestamped transient fault waveform capture and local flash storage is managed exclusively by the rack’s Slot1 TDI master communication module; this component only processes steady-state position/vibration measurements and threshold alarm logic.
