Component Snapshot At-a-Glance

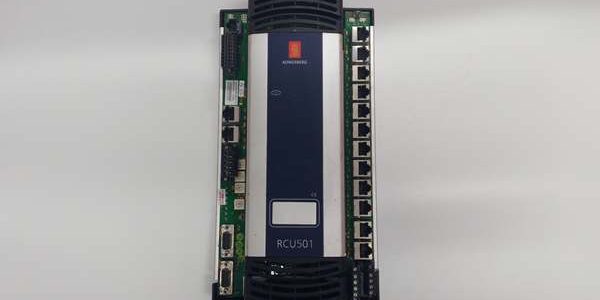

• Model: 603439 (RCU501 Remote Control Unit)
• Alt. P/N: RCU500 (16 serial channel low-spec variant, pinout/backplane incompatible, no drop-in swap)
• Product Series: Kongsberg K-Chief Vessel Automation, K-Pos Dynamic Positioning, K-Thrust Propulsion Control
• Hardware Type: Marinised DIN rail embedded PowerPC real-time control computer
• Key Feature: 32 opto-isolated multi-protocol serial ports, dual redundant LAN/RedundancyNet/RBUS IO bus, Ex Zone 2 certified
• Primary Field Use: Executes DP positioning, thruster closed-loop control, navigation sensor aggregation, and machinery safety logic on vessels and offshore rigs.

Hard-Numbers: Technical Specifications

• Protocol Support: 10/100 Ethernet TCP/IP, RedundancyNet inter-controller bus, RBUS remote IO bus, Modbus RTU/TCP, NMEA0183, PROFIBUS DP, CANopen, RS232/422/485 multi-drop serial
• Port Count: 8 RJ45 serial banks (32 total isolated serial channels); dual RJ45 process LAN; dual RedundancyNet; dual RBUS IO; dual PROFIBUS D-Sub; dual CANBUS; screw terminal 4DI/4DO discrete IO; front Run/Fault/Comms LED array
• Baud/Data Rate: Serial baud 2400–115200bps; DP control scan 1–50Hz configurable; RBUS IO refresh synced to local control scan clock
• Operating Temperature: -15°C to +70°C operational; coated factory variant rated -20°C to +70°C with salt fog resistance
• Isolation Rating: 1500VAC galvanic isolation on all serial, field bus, and Ethernet ports for marine cable surge suppression
• Power Draw: Max 20W continuous; nominal 24VDC supply range 18–30VDC; peak inrush startup current 2.7A
• Memory Specs: 64MB 133MHz SDRAM, 16MB non-volatile flash application storage; hardware watchdog hard reset logic
• Certifications: DNV/ABS marine class, ATEX Ex nA II T4 Zone 2, Achilles Level 1 cyber certification
• Physical Mount: TS35 vertical DIN rail; IP20 cabinet enclosure; hot-swappable in redundant paired RCU deployments

The Real-World Problem It Solves

RCU500 only carries 16 serial ports. DP vessels and FPSOs stack dozens of navigation sensors, thruster servos, and third-party analyzers that overflow limited serial capacity. Adding external serial converters piles vibration-loose wire splices that drop critical positioning data mid-operation.Single-bus non-redundant RCUs create total DP failure risk if one network cable cuts out, leading to platform drift or vessel station-keeping loss offshore.Where you’ll typically find it:

• Offshore drilling rig K-Pos DP2/DP3 racks running position hold and thruster thrust allocation logic
• Container ship K-Chief engine room cabinets handling main engine remote control, tank level, and machinery alarm monitoring
• FPSO Zone 2 hazardous control rooms using coated RCU501 hardware to resist salt fog and hydrocarbon condensationDual fully redundant bus architecture eliminates single-link failure downtime, 32 isolated serial ports remove extra communication expansion hardware, and hard deterministic scan timing maintains DP positioning precision without workstation dependency.

Hardware Architecture & Under-the-Hood Logic

This unit runs standalone real-time control via a dedicated PowerPC core; all DP thrust calculations, analog loop regulation, and protocol conversion execute locally. Operator HMI panels only pull display data and hold zero process control authority.

1. Marine 24VDC input feeds multi-stage EMI filtered isolated power rails; three separate supply branches power CPU core, network transceivers, and serial bus hardware to block VFD/propulsion drive electrical noise.
2. Dual independent Process LAN + RedundancyNet redundant inter-controller buses. Paired RCU501 units sync all logic and IO data live; seamless failover if one controller faults with no scan interruption.
3. All 32 serial channels have independent TVS surge protection. A short on one serial line cannot crash the full serial bank; auto-detects NMEA, Modbus, and servo serial protocols without manual jumper rework.
4. Dual RBUS remote IO buses connect RHUB IO marshalling blocks to sample engine room analog transmitters, valve limit switches, and fire/gas hardwired alarms; onboard 4DI/4DO taps local cabinet door, ventilation, and power status contacts.
5. Hardware watchdog monitors scan cycle timing; logic lockup triggers hard reset and logs timestamped fault history to flash memory. All bus heartbeat loss, serial disconnect, and overtemp alarms push direct tags to vessel HMI.
6. Conformal coated PCB variants seal PowerPC core, Ethernet isolation transformers, and serial signal conditioning circuits against unconditioned cabinet salt fog and condensation.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Serial/Ethernet Shield Cables

New techs ground cable shielding at both the RCU501 cabinet ground bar and remote sensor/thruster junction boxes. Vessel hull multi-point potential differences create ground loop interference, causing NMEA navigation data flicker, DP position drift, and intermittent Modbus tag dropouts during VFD blower cycling.Field Rule: Terminate all serial and Ethernet cable shielding only at the RCU rack chassis ground stud; fully tape and isolate shield braid at all remote field enclosures to block ground loop formation.

Substituting RCU500 Low-Serial Unit In Place Of 603439 RCU501

Field crews swap spare RCU500 hardware into DP core control slots without matching part numbers. The 16 serial port limit cuts navigation and thruster communication channels, mismatched RBUS pinouts trigger steady red FAULT LED, and the DP system automatically degrades to manual station-keeping mode.Quick Fix: Strict part number matching for DP/main propulsion racks: only deploy 603439 RCU501. Reserve RCU500 exclusively for small auxiliary machinery standalone monitoring skids.

Skipping Unified Firmware Logic Download After Hot-Swap Replacement

Techs hot-swap a spare and skip loading validated vessel control strategy. Mismatched firmware revision breaks RedundancyNet cross-controller sync, DP thrust calculation offset develops, and slow platform drift risk activates offshore.Field Rule: Download full validated site-specific control logic, DP gain curves, and serial protocol parameter sets to replacement . Complete dual-controller redundant switchover test and verify all serial sensor data before returning vessel to automatic DP operation.
