Component Snapshot At-a-Glance

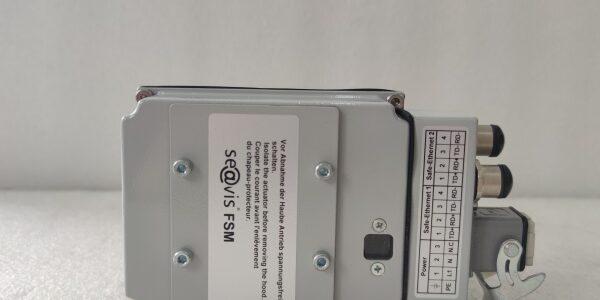

• Model: FSM 006A64 (SAACKE burner dedicated servo actuator)
• Alt. P/N: FSM006A62 (lower torque variant, non-interchangeable drop-in)
• Product Series: SAACKE industrial boiler/furnace combustion control actuator platform
• Hardware Type: Closed-loop brushless servo motor with integrated position controller
• Key Feature: 0–90° stroke, built-in 4–20mA position feedback, Modbus RTU, electronic overload stall protection
• Primary Field Use: Modulate combustion air dampers, fuel oil/gas valve actuators for refinery process heaters, power plant boiler burner control loops.

Hard-Numbers: Technical Specifications

• Protocol Support: Modbus RTU RS485, 4–20mA analog setpoint input, 4–20mA position feedback output
• Port Count: Terminal block for 24VDC power; analog setpoint terminals; analog feedback terminals; RS485 Modbus screw terminals; local manual override shaft
• Baud/Data Rate: Modbus baud range 2400–19200; internal position sampling 100Hz; analog loop update 100ms
• Operating Temperature: -20°C to +70°C standard; coated variant withstands cabinet radiant heat up to +85°C
• Isolation Rating: 1000VAC galvanic isolation separating Modbus/analog signal circuits from power stage
• Power Draw: Max 28W peak stall current; operating supply 24VDC ±10% DC
• Mechanical Stroke: 0–90° rotary output; repeat positioning accuracy ±0.2°; stall torque 6 Nm
• Diagnostic Hardware: Stall detection, overcurrent lockout, internal overtemp cutback, loss-of-feedback fault flag
• Physical: IP54 enclosure; weight 1.2kg; standard ISO burner flange mounting
• Certifications: CE industrial EMC; Class I Div 2 / ATEX Zone 2 non-incendive furnace cabinet approval

The Real-World Problem It Solves

Separate low-torque damper actuators drift under furnace radiant heat, breaking air/fuel ratio balance and raising NOx emissions. External position transmitters add extra wiring splices that corrode in hot burner cabinets, creating unmonitored loss of combustion modulation.

• Where you’ll typically find it:
  • Refinery crude heater burner racks modulating combustion air and natural gas inlet dampers
  • Combined-cycle power plant auxiliary boiler furnace fuel valve and flue gas recirculation dampers
  • Chemical plant process furnace hazardous Zone 2 burner cabinets using coated FSM 006A64 for heat and dust resistanceIntegrated servo drive + position feedback eliminates external POT/transmitter hardware, electronic stall protection prevents damper mechanical seizure from jamming combustion control, and Modbus provides full actuator health telemetry to DCS burner logic.

Hardware Architecture & Under-the-Hood Logic

This unit contains an onboard dedicated servo microcontroller that executes closed-loop position control independent of upstream DCS PID blocks; all position comparison, stall detection and analog signal conversion run locally inside the actuator housing.

1. 24VDC input feeds isolated dual-stage internal PSU; separate power rails isolate brushless motor power stage from analog/Modbus signal conditioning to cut electrical noise interference.
2. Internal non-contact absolute position sensor continuously samples shaft angle at 100Hz; value converted to stable 4–20mA feedback signal for DCS loop tracking.
3. Setpoint from DCS 4–20mA analog input or Modbus register feeds position error comparator; servo drive adjusts motor torque to eliminate position offset.
4. Continuous motor current monitoring triggers stall lockout if damper jams; internal NTC thermistor reduces drive torque automatically at high cabinet temperatures to avoid winding burnout.
5. RS485 Modbus port exposes real-time position, motor current, internal temperature and fault codes to DCS historian; fault latches persist until power cycle reset.
6. Conformal coated internal PCB variants seal servo control electronics against burner cabinet dust, condensation and radiant furnace heat.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Analog/Modbus Shield Cables

New techs ground shield braid at both FSM 006A64 terminal block and DCS marshalling cabinet. Ground loop AC noise skews 4–20mA feedback values, triggering unstable air/fuel ratio hunting and high emission alarms during VFD blower cycling.

• Field Rule: Terminate all analog/Modbus cable shield only at DCS rack chassis ground bar; tape and fully isolate shield conductors at burner actuator enclosure.

Substituting Low-Torque FSM006A62 In Place Of FSM 006A64

Rookies install smaller torque A62 spare on large furnace air dampers. Insufficient stall torque cannot overcome dust/carbon buildup friction, leading to uncommanded damper drift and unstable combustion ratios.

• Quick Fix: Strict part number matching: FSM 006A64 for large main air/gas dampers; A62 reserved only for small pilot burner trim valves.

Disabling Stall Protection To Clear Nuisance Faults

Techs adjust parameters to raise stall current threshold to eliminate jam alarms from dirty dampers. Disabling stall detection removes protection against seized dampers, risking uncontrolled fuel flow and furnace trip events.

• Field Rule: Keep factory stall protection thresholds active; clean and lubricate damper linkages instead of overriding actuator safety diagnostics.
