Component Snapshot At-a-Glance

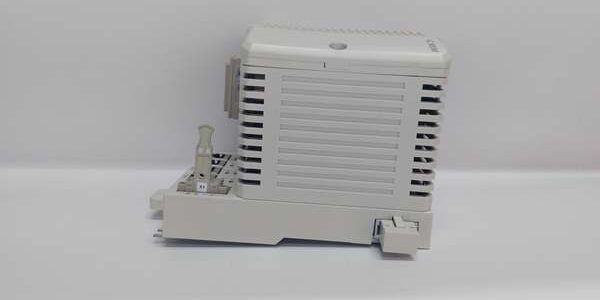

• Model: PU410K01
• Factory Part Number: 3BSE051826R1
• Core Unit Inside Kit: PU410 Communication Box (3BSE056478R1)
• Product Series: ABB Advant Master OCS / 800xA Integration Platform (Legacy MB300 DCS)
• Hardware Type: Complete RTA (Remote Terminal Access) communication kit, standalone external gateway for MB300 MasterBus backplane systems
• Kit Full Contents:1× PU410 main communication unit, global region power cable, TK852V010 shielded MB300 bus cable, mounting brackets (desktop / 19” rack), installation manual, accessory terminal kit
• Key Feature: Dual redundant Gigabit Ethernet ports, point-to-point or redundant connection to Advant MB300/eDCN/CBA backplane, remote engineering access for legacy AC410/AC450 controllers, built-in cooling fan, ATEX II 3G hazardous location certification
• Primary Field Use: Bridge aging Advant Master MB300 rack-based DCS to modern 800xA HMI, engineering workstations and plant historians; enable remote Control Builder A programming, data trending and fault diagnostics for power plant boilers, paper mills and refinery process units.

Hard-Numbers: Technical Specifications

• Supported Protocols: MB300 MasterBus, eDCN, CBA internal DCS bus, TCP/IP Gigabit Ethernet, Control Builder A engineering communication
• Port Layout:
  • 2× RJ45 10/100/1000Mbps auto-negotiate Ethernet ports (redundant network)
  • 1× dedicated bus RJ45 port for TK852 shielded cable connection to Advant racks
  • Detachable screw terminal block for 24VDC power input
  • Front multi-color LED array: Power, Bus Link, Ethernet Link/Activity, System Fault
• Power Supply: 24VDC nominal input, operating range 19.2–30VDC, ±10% tolerance; typical power consumption 12W, max 25W under full bus load
• Operating Temperature: -25°C to +60°C full rated communication performance; storage range -40°C to +70°C; 5%–95% RH non-condensing humidity tolerance
• Isolation Rating: 1500VAC galvanic isolation between field bus and plant Ethernet network to block ground loop interference
• Mechanical Data:
  • Net weight of PU410 main unit: 0.39kg; full kit weight ~0.45kgABB Group
  • Dimensions: 45 × 443 × 243 mm (H×W×D)
  • Mount options: Desktop flat placement, wall mount, standard 19” industrial rack bracket
• Cooling: Integrated replaceable axial cooling fan (spare fan part: 3BSC830036E1) for passive-active heat dissipationABB Group
• PCB Treatment: Factory conformal coating to resist oil mist, condensation and industrial dust in turbine/paper mill enclosures
• Certifications: CE, UL, ATEX II 3G, Class I Div 2 non-incendive rating for hazardous refinery cabinet installation
• Hot Swap Support: The unit itself is not hot-swappable; upstream 24VDC power must be fully isolated before disconnection.

The Real-World Problem It Solves

Legacy Advant Master DCS racks lack native Ethernet interfaces and cannot directly connect to modern 800xA supervisory systems or remote engineering stations, requiring costly custom interface hardware. Single-bus communication gateways create full process data blackout if one link fails, while unisolated bus adapters allow VFD-induced ground loop noise to corrupt cyclic I/O data and crash controller scans. Separate loose cables and mounting hardware increase retrofit labor hours; the PU410K01 pre-assembled kit consolidates all wiring, cabling and mounting accessories into one OEM package. Unfanned passive communication boxes overheat in high-temperature turbine houses, triggering permanent bus disconnection and loss of boiler/paper machine control visibility.Where you’ll typically find it deployed:

1. Coal-fired power plant Advant AC450 boiler control rack retrofits for 800xA HMI migration
2. Large paper mill AC410 legacy DCS cabinets providing remote engineering access to paper web tension control logic
3. Refinery distillation unit hazardous location control rooms requiring ATEX-certified -to-Ethernet gateway hardwareDual redundant Ethernet eliminates single network failure risks, built-in galvanic isolation removes external signal isolators, complete OEM kit reduces spare part inventory, and integrated cooling fan maintains stable bus communication in high-temperature industrial enclosures.

Hardware Architecture & Under-the-Hood Logic

This standalone RTA gateway operates as an independent protocol translator between legacy parallel backplane bus and modern TCP/IP Ethernet networks; it stores Advant controller mapping tables in non-volatile flash memory and acts as a transparent data bridge without altering process control logic running on AC410/AC450 CPUs.

1. 24VDC filtered input power feeds isolated regulator circuits for the onboard bus processor, dual Gigabit Ethernet transceivers and cooling fan.
2. Dedicated bus RJ45 port communicates with Advant rack backplanes via TK852 shielded twisted-pair cable, converting parallel MasterBus cyclic data frames to IP packets for Ethernet transmission.
3. Two independent Gigabit Ethernet ports run active/standby redundant network mode; all process trending, engineering download and fault log traffic automatically reroutes to the healthy port if one switch link drops offline.
4. Onboard flash memory retains node address mapping, IP addressing schemes and firmware images through complete 24VDC power loss; no backup lithium battery required for configuration retention.
5. Front panel multi-color LED bank delivers instant visual diagnostics: DC power status, bus active link, per-Ethernet link/transmit activity, red fault LED for fan failure, bus overload or communication timeout.
6. Replaceable built-in fan forces convection airflow across the PCB heat sink to prevent thermal throttling and bus communication latency in sealed hot control cabinets.
7. Galvanic isolation barriers fully separate the low-voltage field bus side from plant corporate Ethernet to block common-mode AC noise generated by motor VFDs and large rotating machinery.

Field Service Pitfalls & Standard Compliance Rules

1. Improper TK852 Cable Shield Grounding Creates Severe Bus Data Corruption

New technicians ground the TK852 bus cable shield braid at both the PU410 unit and Advant rack terminal blocks. Parallel ground loop currents distort MasterBus differential signals, triggering constant bus timeout alarms and intermittent loss of all Advant process tags on the HMI.Field Rule: Terminate TK852 cable shielding only at the PU410 communication unit ground terminal; fully tape and isolate shield conductors at all Advant rack bus connectors.

2. Running Bus Cable Parallel With High-Current AC Power Wiring

Junior field staff route the TK852 bus harness alongside 380V motor power cables without minimum separation clearance. Inductive electromagnetic interference corrupts cyclic I/O scan data, causing flickering valve/pump status tags and delayed alarm reporting.Quick Fix: Maintain a minimum 30cm physical separation between bus cables and all AC motor/VFD power wiring; route communication cables in dedicated isolated cable trays.

3. Neglecting Fan Inspection Causes Chronic Thermal Bus Disconnect Faults

Field technicians skip quarterly fan cleaning and replacement cycles; clogged fan filters or seized fan motors block cooling airflow, pushing internal PCB temperature above +60°C rated limit and triggering uncommanded bus disconnection.Field Rule: Inspect the PU410 cooling fan every 90 days; replace the spare fan part (3BSC830036E1) immediately if abnormal noise or stopped rotation is detected in oily refinery/turbine environments.

4. Mismatched Firmware With Advant Master Controller Software

Technicians upgrade AC410/AC450 Advant rack firmware without matching the gateway firmware revision. Version incompatibility breaks bus-to-Ethernet protocol translation, generates persistent red system fault LED alarms and blocks all remote engineering workstation access.Field Rule: Load matched firmware revisions for both RTA unit and all connected Advant Master controllers; run full bus node scan and redundant Ethernet failover test before restoring plant supervisory visibility.

Commercial Availability & Pricing Note

Please note: All technical content above is for reference only and does not constitute binding quotation terms. Final unit cost, lead time, warranty and bulk discount terms shall be negotiated based on stock availability, order quantity and site project delivery requirements.
