Component Snapshot At-a-Glance

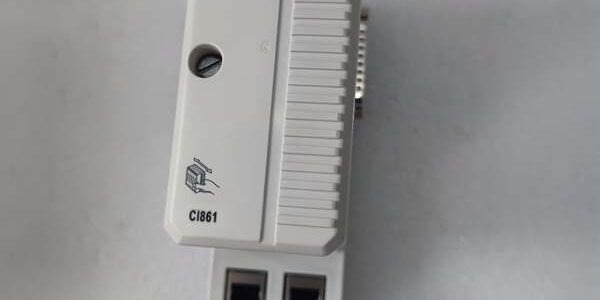

- Model: CI861K01
- Alt. P/N: 3BSE058590R1
- Product Series: ABB AC 800M / System 800xA DCS Compact Product Suite
- Hardware Type: VIP (Versatile Industrial Protocol) multi-protocol communication gateway module
- Key Feature: Dual RJ45 Ethernet ports, powered entirely via CEX backplane bus (no external 24V field feed)
- Primary Field Use: Bridge AC800M CPU to Profinet, Modbus TCP and third-party intelligent drives/remote I/O racks
Hard-Numbers: Technical Specifications
- Protocol Support: Profinet IRT, Modbus TCP, VIP Virtual I/O Protocol
- Port Count: 2 x 10/100Mbps RJ45 Ethernet ports
- Baud/Data Rate: Ethernet auto-sensing 10/100 Mbps full/half duplex
- Operating Temperature: 0 °C to +55 °C (cabinet forced cooling required above 50°C)
- Storage Temperature: -40 °C to +70 °C
- Isolation Rating: 1500 VAC isolation between CEX backplane and field Ethernet circuits
- Power Draw: Typical 7 W, supplied over CEX bus from rack power supply
- Baseplate Requirement: TP853 terminal base (60 mm width DIN rail mount)
- Module Dimensions: 59 mm W × 185 mm H × 127.5 mm D
- Weight: 0.621 kg
- Ingress Protection: IP20, indoor cabinet-only mounting
- Hot Swap: Not hot-swappable; rack power must be isolated before removal/replacement
The Real-World Problem It Solves
Single-protocol CI series comm cards force separate rack slots for each fieldbus type, eating up critical cabinet space on tight-layout refinery and power plant control racks. Older single-port gateways create single points of failure; cable damage or port lockup drops all third-party device communications at once.
Where you’ll typically find it:
- Thermal power plant boiler auxiliary drive racks linking AC800M to VFD fans, feedwater pumps via Profinet
- Refinery FCC unit distributed I/O racks connecting remote tank level transmitters over Modbus TCP
- Pulp mill multi-motor synchronization panels interfacing third-party servo drives to 800xA controllers
Bottom-line value statement: Multi-protocol dual-port design consolidates fieldbus connections into one rack slot, with dual Ethernet paths enabling redundant field network setups to eliminate full comm loss events.
Hardware Architecture & Under-the-Hood Logic
This card plugs into the AC800M rack’s CEX expansion bus slot and runs its own independent communication processor; it does not offload scan load to the PM864AK01 main CPU. Isolation transformers separate sensitive backplane logic from electrical transients on plant Ethernet cables.
- CEX backplane delivers isolated 24V power and high-speed internal data to the CI861K01 without external wiring
- Onboard dedicated communication microprocessor buffers all fieldbus tag data independently of the main controller scan cycle
- Configurable protocol firmware partitions each RJ45 port to run separate Profinet or Modbus TCP traffic
- Built-in signal isolation blocks ground loop noise from unshielded plant Ethernet cabling
- Diagnostic logic continuously polls port link status, cable faults and remote device heartbeat signals
- Fault codes and comm counters push real-time diagnostic data back to the AC800M CPU via CEX bus for operator alarm display
Field Service Pitfalls: What Rookies Get Wrong
Forgetting TP853 Baseplate Compatibility
New technicians attempt to fit CI861K01 onto narrow TP830 baseplates without checking width clearance. Module fails to lock into CEX bus contacts, triggering constant CEX timeout alarms that mimic CPU hardware faults.
- Field Rule: Only use matching TP853 60mm wide baseplate; visually verify latch full engagement before restoring rack power.
Unshielded Ethernet Cable Routing Next to VFD Outputs
Junior crews run unshielded CAT5 Ethernet parallel with motor drive power cables. High-frequency switching noise corrupts Profinet cyclic data, causing random drive dropouts and interlock spurious trips.
- Quick Fix: Separate field Ethernet cabling from VFD power runs by minimum 30cm; use fully shielded CAT6 with single-end cabinet shield grounding.
Mismatched VIP Firmware Between CPU and CI Module
Field crews flash PM864AK01 controller firmware but skip matching CI861K01 firmware updates. Protocol handshakes break entirely, no field device tags populate in Control Builder.
- Field Rule: Sync CI module firmware revision to match the AC800M CPU build number; run CEX bus diagnostic scan post-upgrade to validate link health.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
