Component Snapshot At-a-Glance

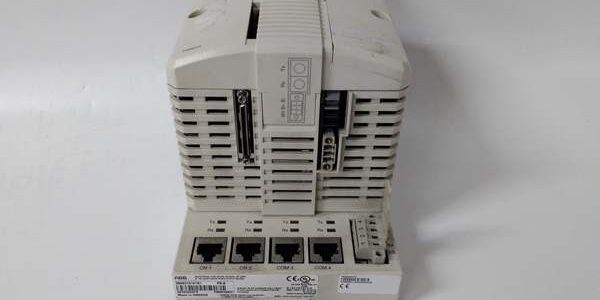

- Model: PM864AK01
- Alt. P/N: 3BSE018161R1
- Product Series: ABB AC 800M / 800xA DCS Platform
- Hardware Type: Hot-redundant CPU main controller module
- Key Feature: Onboard isolated power supply for bumpless master-backup switchover
- Primary Field Use: Execute process logic and equipment interlocks for refineries, thermal power plants, and paper mills
Hard-Numbers: Technical Specifications
- Protocol Support: Profibus DP, Modbus TCP/RTU, AF100, OPC UA
- Port Count: 2 Ethernet ports, 1 RS485 port, 1 AF100 fieldbus interface
- Baud/Data Rate: RS485 max 115.2 kbps; Ethernet 10/100 Mbps auto-sensing
- Operating Temperature: 0 °C to +60 °C (max 50 °C without forced cabinet cooling)
- Isolation Rating: 1500 VAC isolation between power, backplane bus and chassis ground
- Power Draw: Typical 12 W, peak 15 W
- Redundancy Support: 1:1 hot standby parallel redundancy
- Memory Allocation: 4 MB program memory, 8 MB data cache
- Input Power: 24 VDC operating range 19.2 V ~ 30 V DC
- Ingress Protection: IP20, restricted to sealed industrial control cabinet mounting
The Real-World Problem It Solves
Older single-CPU controllers force full process shutdown during hardware failure. Program re-download and tag resync work takes minimum two hours, triggering heavy production losses on continuous-run assets. Non-isolated standard CPUs pick up harmonic noise from VFDs and large motors, spamming comm loss alarms and false interlock trips.
Where you’ll typically find it:
- Thermal power plant boiler and turbine DCS cabinets for drum level and furnace pressure interlock control
- FCC unit control racks inside high-temperature, high-vibration hazardous refinery zones
- Large pulp & paper mill production lines running synchronized multi-motor sequence logic
Bottom-line value statement: Native hardware redundancy plus full electrical isolation eliminates unplanned process downtime triggered by single controller card faults or electrical interference.
Hardware Architecture & Under-the-Hood Logic
This card carries a dedicated standalone 32-bit industrial microprocessor; backplane only handles data exchange, no shared computing load. Complete physical separation exists between low-voltage logic and external field circuits to stop transient surges frying core chips.
- Isolated onboard 24VDC power stage filters and stabilizes input power, supplying separate regulated rails for the CPU and communication ICs
- AF100 fieldbus polls analog and digital remote I/O signals, loading all tag data into local high-speed cache
- Onboard processor runs user control logic on fixed scan cycles, sending calculated output commands to local and remote I/O modules
- Redundancy link continuously syncs full program sets and live process data, comparing master and backup operating states every millisecond
- Backup unit instantly takes over all processing if master hardware fault is detected; zero logic interruption and stable output signals during switchover
- Dual Ethernet ports push real-time process metrics, alarm logs and historical trend data to the 800xA operator server layer
Field Service Pitfalls: What Rookies Get Wrong
Improper Cabinet Thermal Load Calculation
New techs stack high-power CPU and relay cards without accounting for combined heat output. Internal temperature creeps past 50 °C even at nominal ambient, triggering random watchdog resets and comm timeouts.
- Field Rule: Maintain minimum 2U empty rack space above and below each ; add cabinet exhaust fans if plant ambient hits 40 °C or higher.
Unshielded RS485 AF100 Termination Wiring
Junior engineers skip twisted-pair shield grounding or leave bus end resistors uninstalled. Motor switching noise creates signal reflections, causing intermittent I/O dropouts that take days to replicate.
- Quick Fix: Ground cable shield at one cabinet end only; install factory-supplied 120 Ω termination resistors on both physical endpoints of the AF100 trunk line.
Mismatched Firmware Versions Between Redundant Pairs
Many field crews flash only the primary CPU after platform upgrades. Version mismatch breaks redundancy sync, disabling automatic failover capability entirely.
- Field Rule: Always upload identical firmware revisions to both master and backup units; verify redundancy link health via control builder diagnostic viewer post-upgrade.
