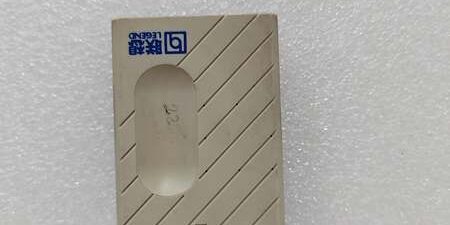

Component Snapshot At-a-Glance

• Model: LC-608
• Alt. P/N: No direct cross-compatible transceiver; generic industrial media converters lack S100 bus timing matching and SOE 同步功能
• Product Series: ABB S100 I/O, Advant OCS, Advant Controller 450 (PM511V16 CPU) legacy DCS platform
• Hardware Type: Compact DIN rail mount Ethernet transceiver, one side 19-pin DB19 male connector (match S100 communication card front port), one side RJ45 Ethernet port, front SOE ON/OFF configuration toggle switch
• Key Feature: Galvanically isolated signal conversion between S100 serial bus and industrial Ethernet, built-in SOE 事件时序同步开关，signal regeneration for long plant Ethernet trunk runs
• Primary Field Use: Convert proprietary MB300/VIP serial bus signals to standard Ethernet TCP/IP, connect Advant master racks to remote SCADA servers, historian workstations and plant time synchronization systems

Hard-Numbers: Technical Specifications

• Protocol Support: ABB proprietary MB300 MasterBus 300, VIP serial protocol, convert to standard TCP/IP Ethernet, IEC 60870-5 compatible framing
• Port Count: 1×DB19 male serial port ( communication card mating), 1×RJ45 10/100Base-TX Ethernet port
• Baud/Data Rate: Native MB300/VIP 19.2 kbps serial, auto-negotiate 10/100Mbps Ethernet
• Operating Temperature: -20°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation between serial domain and Ethernet field network domain
• Power Draw: Max 2.8W total module load, input 100–240VAC / 24VDC dual power supply compatible
• SOE Function: Front toggle switch enables event sequence timestamp synchronization for power plant fault logging
• Max Transmission Distance: 100m standard industrial shielded CAT5e Ethernet cable
• Mounting Standard: 35mm standard DIN rail snap-in installation
• Physical Weight: 0.39 kg, compact vertical cabinet footprint, IP20 cabinet-only rating
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Legacy CS513 MB300 / CI546 VIP serial communication cards only provide DB9 serial output, cannot directly connect to modern plant Ethernet SCADA/historian servers; external third-party media converters lose native SOE event timestamping and break Advant bus timing synchronization.Unisolated serial-to-Ethernet adapters create cross-cabinet ground loop currents between RF522 master racks and control room server cabinets; VFD and transformer EMI distorts serial-Ethernet converted telegrams, triggering frozen HMI screens and lost fault event logs.Custom serial-Ethernet conversion wiring lacks factory-matched impedance for MB300 token-passing bus; long trunk runs generate signal reflection noise, causing inconsistent operator screen refresh rates and missing alarm records.Where you’ll typically find it:

• Combined cycle power plant RF522 turbine master racks paired with CS513 communication modules, linking unit HMI and SOE fault historian servers via Ethernet
• Refinery central Advant OCS DCS chassis converting VIP serial data to Ethernet for plant-wide central SCADA data archiving
• Pulp mill recovery boiler master control racks transmitting web speed, safety interlock and liquor flow data to remote production line monitoring servers over plant EthernetThis factory-matched dedicated Ethernet transceiver retains native SOE timing synchronization, electrically isolates serial and Ethernet domains, and eliminates uncertified third-party conversion hardware for legacy Advant DCS Ethernet integration.

Hardware Architecture & Under-the-Hood Logic

This unit integrates dedicated serial-Ethernet protocol conversion ASIC and dual isolated differential transceivers; all /VIP frame parsing, signal regeneration and SOE timestamp synchronization run locally without burdening the PM511 main CPU.

1. Dual-range power input feeds internal EMI filters, isolated DC-DC power converters splitting serial side and Ethernet network side power domains, front panel SOE switch logic circuit.
2. DB19 serial signal lines pass discrete TVS surge suppression to block ESD and cabinet transient spikes from communication card front ports.
3. Galvanic isolation barrier fully separates master rack chassis ground and control room server cabinet ground, eliminating circulating ground loop noise currents that corrupt converted Ethernet data frames.
4. Onboard conversion ASIC repackages token-based / VIP serial frames into standard TCP/IP Ethernet packets; SOE toggle switch enables high-precision event timestamp tagging for power plant fault sequence analysis.
5. Internal status LED indicators (hidden ventilation grille) display serial bus link active, Ethernet transmit/receive traffic and conversion fault state; communication error counters forward to PM511 CPU via backplane registers for HMI alarming.

Field Service Pitfalls: What Rookies Get Wrong

Substituting Generic Off-Shelf Serial-Ethernet Media Converters To Replace LC-608

Junior technicians install universal third-party converters without matching bus timing. Missing native token stack and SOE synchronization logic corrupts alarm timestamps, operator screens show blank process values and fault sequence logs lose precision.

• Field Rule: Only deploy LC-608 for Advant /VIP serial-to-Ethernet conversion; generic media converters cannot be used as permanent replacement.

Running Unshielded Office-Grade Ethernet Cable For Field Trunks

Field crews deploy cheap unshielded CAT5 cable routed parallel to medium voltage power and VFD wiring. Inductive EMI distorts differential Ethernet signals, triggering daily HMI data dropout and missing SOE fault event records during peak production shifts.

• Quick Fix: Install industrial shielded CAT5e Ethernet cable; single-point ground cable shield only at the LC-608 DIN rail cabinet end, leave server room switch side shield floating to avoid dual-ground loops.

Disabling SOE Switch For Power Plant Turbine Control Racks

Maintenance staff toggle SOE switch to OFF during routine testing. Loss of synchronized event timestamping makes post-trip fault sequence analysis impossible for turbine safety trip troubleshooting.

• Field Rule: Keep SOE switch ON for all power plant critical control racks; only toggle OFF during offline bench firmware testing.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
