Component Snapshot At-a-Glance

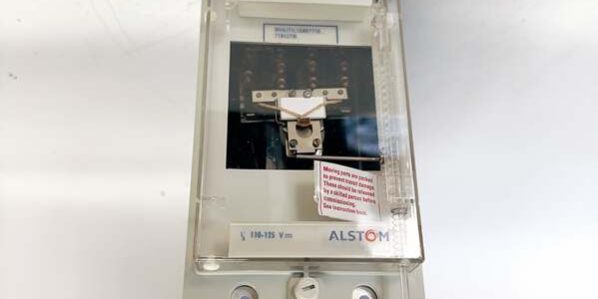

• Model: MVAJ21L1GB0771B
• Alt. P/N: MVAJ21B1GB0771B (medium-burden coil variant, higher continuous DC draw); MVAJ27 (fixed drop-off delay latch); MVAJ53 (mechanical hand-reset flag, no economiser circuit)
• Product Series: MVAJ Midos electromechanical trip relay family, unified rack base footprint with MCGG/MVAX/MVTT protection relays
• Hardware Type: Full withdrawable plug-in attracted armature trip relay, blue aluminum industrial chassis, transparent front inspection window
• Key Feature: L-series low-burden 110/125VDC coil, internal economising resistance circuit to cut steady-state DC load post-operation, self-reset design, multi-stack magnetic blowout changeover contacts
• Primary Field Use: Amplify weak protection relay contact signals to drive breaker trip coils; built-in economiser eliminates sustained high DC drain after trip actuation, resist stray capacitance leakage on long trip wiring.

Hard-Numbers: Technical Specifications

• Protocol Support: Pure electromechanical hardware, no digital bus communication; volt-free heavy-duty trip/alarm changeover contact outputs
• Port Count: Main DC coil supply terminals, multi-pole independent contact terminal stacks for breaker trip, local alarm and SCADA remote indication
• Baud/Data Rate: No serial data transmission
• Operating Temperature: -10°C to +55°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2000Vrms dielectric withstand between coil winding and contact wiring
• Power Draw: Low-burden L coil, economiser circuit drops holding wattage by 70% post-trip
• Nominal Coil Voltage: 110/125 VDC station control battery, reliable pickup at 70% rated voltage
• Economiser Function: Internal series resistance engages instantly after armature pull-in to reduce continuous DC load
• Reset Method: Electrical self-reset; contacts return to normal state once coil de-energizes
• Operate Speed: ≤10ms full armature pull-in at rated DC voltage
• Contact Continuous Rating: 5A @300VDC resistive load; 40W DC inductive breaking capacity with integrated magnetic blowout plates
• 3s Fault Make/Carry Rating: 30A peak transient trip coil switching capacity
• Mechanical Endurance: 10,000 loaded fault switching cycles minimum
• Physical Weight: 0.42kg fully assembled draw-out unit

The Real-World Problem It Solves

Standard non-economiser MVAJ trip relays draw full coil wattage continuously when held energized. Long-duration fault lockout drains station DC battery reserves and creates severe bus sag across densely packed protection panels.Remote trip wiring runs hundreds of meters between protection cubicles and breakers; stray line capacitance leakage generates spurious trip signals that nuisance-operate standard low-burden auxiliary relays.Medium-burden MVAJ21B coils draw heavy steady-state DC load during extended fault maintenance hold periods; multiple energized trip relays simultaneously collapse battery voltage and disable critical backup protection logic.Stacking discrete external economiser resistors adds extra rack slots and wiring splices that vibrate open after years of plant thermal cycling.Where you’ll typically find it:

• Fossil power plant generator, main transformer and boiler feeder remote trip protection panels
• Refinery MV compressor and long-distance process feeder breaker trip amplification schemes
• Urban distribution primary substation ring bus remote feeder trip control cabinetsThis single draw-out low-burden trip relay integrates internal economiser load reduction circuitry, delivers capacitance leakage immunity, and eliminates sustained heavy DC battery drain for long-duration trip hold circuits.

Hardware Architecture & Under-the-Hood Logic

This unit uses a hinged armature electromagnetic coil with dedicated internal economiser resistance branch, no onboard microprocessor or signal sampling ICs. It shares standardized Midos rack mechanical design with all ALSTOM Midos protection hardware for consistent cabinet layout.

1. Weak fault contact from main protection relay energizes the L low-burden main coil; magnetic flux pulls armature closed and switches all multi-stack trip/alarm contacts simultaneously.
2. Auxiliary contact on the main contact stack closes immediately after pull-in, inserting factory series economiser resistance in-line with the main coil winding.
3. Economiser resistance cuts steady-state coil power draw drastically during sustained energization, limiting total DC load on station battery to avoid panel bus sag during multi-circuit fault hold events.
4. Silver alloy contact tips paired with magnetic blowout plates extinguish DC inductive arcs from breaker trip coils, preventing permanent contact welding during repeated fault switching.
5. Self-reset spring tension returns all contacts to normal state the instant fault coil drive power drops to zero; no manual front-panel flag reset required.
6. Rear Midos rack terminal base pre-fitted with factory CT short-circuit jumpers; full chassis withdrawal possible without disconnecting CT secondary wiring to eliminate lethal open CT kilovolt surge hazards.

Field Service Pitfalls: What Rookies Get Wrong

Swapping MVAJ21B Medium-Burden Coil Variant For MVAJ21L Low-Burden Unit

New technicians install MVAJ21B spare stock without matching model suffix. During extended fault lockout maintenance, continuous high DC load spikes collapse station battery voltage; upstream backup protection relays dropout and fail to clear secondary equipment faults.Field Rule: MVAJ21L low-burden variant mandatory for dense multi-relay remote trip panels; segregate L and B coil MVAJ21 spares in clearly labeled locked storage bins.

Skipping CT Short Jumper Installation Before Withdrawing Draw-out Relay

Apprentices pull the relay chassis straight out without shorting CT terminals on the rack base. Open CT secondary windings generate kilovolt surge that damages upstream MCGG overcurrent relay sampling boards and creates cabinet electric shock hazard.Quick Fix: Always install factory CT short-circuit jumpers on the Midos base terminal strip before removing any draw-out MVAJ trip relay unit.

Bypassing Internal Economiser Circuit With External Jumpers

Maintenance crews jumper across the built-in economiser resistance to eliminate minor voltage drop across the coil. The relay draws full unregulated DC load continuously during fault hold periods, draining station battery and triggering low DC supply alarms in SCADA.Field Rule: Never bypass the internal economiser contact/resistance branch; the load reduction circuit is mandatory for all long-run remote trip wiring schemes.

Deploying MVAJ21 On Circuits Requiring Permanent Mechanical Fault Latching

Techs use self-reset MVAJ21 for transformer lockout schemes that require visible latched fault indication. Once fault drive power drops, all contacts reset automatically; operators lose permanent local fault flag without dedicated mechanical latch relays like MVAJ53.Field Rule: MVAJ21 only suited for self-resetting trip amplification circuits; select MVAJ53 hand-reset latching variants for lockout schemes requiring persistent fault visual indication.
