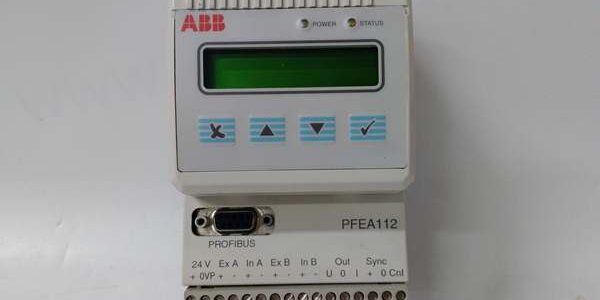

Component Snapshot At-a-Glance
- Model: PFEA112-20
- Alt. P/N: 3BSE050091R20
- Product Series: ABB Pressductor® PFEA112
- Hardware Type: Dual-channel digital tension controller/amplifier
- Key Feature: Native Profibus-DP + 20kN max load cell rating, no external A/D needed
- Primary Field Use: Precision tension measurement and transmission for high-speed web/coil processing.
Hard-Numbers: Technical Specifications
- Protocol Support: Profibus-DP (12 Mbps max)
- Port Count: 2×sensor inputs, 1×analog out, 1×Profibus-DP, 1×digital input
- Data Rate: 330Hz sensor excitation; 15–1500ms selectable filtering
- Operating Temperature: +5°C to +55°C
- Isolation Rating: 1500V channel-to-chassis
- Power Draw: 24VDC (18–36V range), 7.5W max
- Input Type: ABB Pressductor (PFTL/PFCL) load cells, 0.5A rms excitation
- Outputs: -5 to +11V analog out; digital input for remote zero
- Accuracy: ±0.5% full scale
- Mounting: 35mm DIN rail, IP20
- Display: 2×16 LCD, shows A/B/A+B/A-B tension values
The Real-World Problem It Solves
Analog tension modules suffer from noise, drift, and signal loss over long cable runs. Older units lack digital communication, adding external A/D hardware and wiring complexity.
Where you’ll typically find it:
- Metal coil processing (steel, aluminum) – cold rolling, annealing lines
- High-speed paper, film, and foil slitting/rewinding lines
- Lithium battery electrode and separator coating lines
This unit converts sensor signals to digital at the source, sending clean tension data over Profibus-DP directly to PLC.
Hardware Architecture & Under-the-Hood Logic
32-bit RISC processor-based standalone unit; no backplane required. Isolated signal conditioning for each sensor input.
- Two Pressductor load cells connect to channel A/B; 330Hz excitation drives sensors.
- Analog front-end amplifies and filters raw strain-gage signals.
- High-resolution ADC converts analog tension data to digital.
- Onboard processor calculates A, B, sum (A+B), and difference (A-B) values.
- Digital data transmitted via Profibus-DP to controller; analog output available for legacy systems.
- LCD and LEDs provide local display and diagnostics; digital input triggers remote zero.
Field Service Pitfalls: What Rookies Get Wrong
Incorrect Profibus-DP wiring and terminationTechs forget terminators or wire them wrong. Causes intermittent communication drops, flickering status LEDs, and missing tension data.
- Field Rule: Terminate both ends of DP bus; set last node terminator to ON; use shielded twisted pair.
Mismatched load cell rating (ignoring -20 suffix)Users hook up 50kN sensors to . Triggers constant overrange alarms and invalid readings.
- Quick Fix: -20 = max 20kN load cells (e.g., PFCL201C); match sensor rating to module suffix.
Poor cabinet airflow causing overtemp faultsMounting units tight against adjacent gear blocks cooling. High ambient causes random resets and communication errors.
- Field Rule: 20mm clearance all sides; avoid mounting next to VFDs or heat-generating devices.
