Component Snapshot At-a-Glance

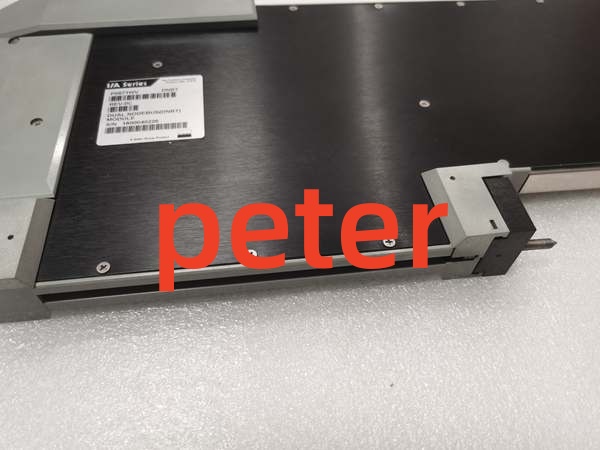

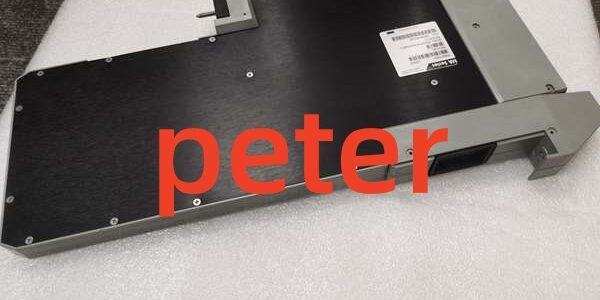

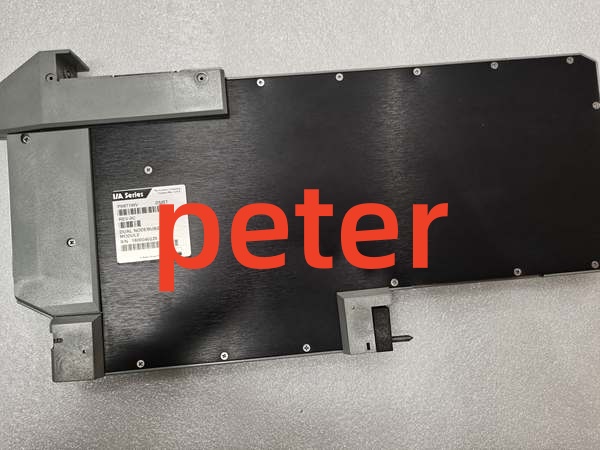

- Model: P0971WV (DNBT)
- Alt. P/N: -DNBT
- Product Series: Foxboro I/A Series DCS
- Hardware Type: Dual-node fieldbus communication/gateway processor module
- Key Feature: Dual 2Mbps fieldbus nodes, redundant comm, IP65/NEMA 4X rated
- Primary Field Use: Interfaces FBM I/O racks to I/A controllers; supports redundant plant-wide fieldbus networks.
Hard-Numbers: Technical Specifications
- Protocol Support: HDLC Fieldbus, RS-485, Modbus RTU
- Port Configuration: 2×2Mbps fieldbus channels (dual-node)
- Data Rate: 2Mbps (fieldbus); 10Mbps Ethernet (option)
- Operating Temperature: -40°C to +85°C
- Isolation Rating: 1500V RMS channel-to-channel isolation
- Power Draw: 24VDC, 8.5W max; redundant power compatible
- Memory: 16MB SDRAM, 32MB Flash
- Max Nodes: 32 FBMs per channel; 64 total per module
- Enclosure Rating: IP65, NEMA 4X
- Mounting: DIN rail or baseplate
- Dimensions: 140×100×30mm; weight 0.77kg
- Certifications: CE, RoHS, ATEX, UL
The Real-World Problem It Solves
Single-channel fieldbus modules create single points of failure; high-noise areas cause data corruption and I/O drops. Copper-only links limit distance and rack density.
Where you’ll typically find it:
- Power plants linking boiler/turbine FBMs to redundant controllers
- Refinery process units with high EMI and distributed I/O clusters
- Chemical plants requiring dust/waterproof (IP65) field-mounted comms
This module provides dual-node redundancy, electrical isolation, and environmental protection to keep fieldbus up in harsh conditions.
Hardware Architecture & Under-the-Hood Logic
is a self-contained gateway with a dedicated RTOS processor and isolated transceivers. It handles two independent fieldbus segments.
- 24VDC redundant power feeds internal DC-DC converter; reverse-polarity protected.
- Dual HDLC controllers manage two independent 2Mbps fieldbus channels.
- Isolated RS-485 transceivers provide 1500V isolation between channels and ground.
- Onboard 32-bit RISC processor runs diagnostics, routing, and redundancy logic.
- Data buffers (16MB SDRAM) handle burst traffic; 32MB Flash stores firmware/logs.
- Redundancy logic syncs dual channels; switchover <50ms on fault.
- IP65 enclosure seals against dust/water; conformal coating for vibration/humidity.
- P0971WV
Field Service Pitfalls: What Rookies Get Wrong
Overlooking Dual-Node Termination
Techs terminate only one channel, causing signal reflections and intermittent CRC errors on the second node.
- Field Rule: Terminate both fieldbus channels (120Ω); measure 60Ω between A/B wires at module.
Mismatched Redundancy Firmware
Different firmware revisions on redundant P0971WVs cause sync loss and switchover failures.
- Quick Fix: Flash both modules to identical firmware; verify CRC match before commissioning.
Ignoring IP65 Gasket Seating
Rookies pinch or misalign door gaskets, letting moisture/dust in and causing early corrosion.
- Field Rule: Inspect gasket for cuts; torque door screws evenly to 1.2Nm; seal cable glands properly.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
