Component Snapshot At-a-Glance

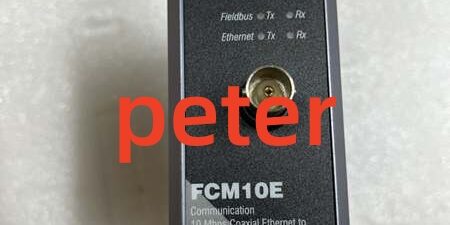

- Model: FCM10E
- Alt. P/N: P0914YM
- Product Series: Foxboro I/A Series & Evo DCS
- Hardware Type: Fieldbus communication converter module
- Key Feature: Galvanic isolation plus 1:1 module redundancy support
- Primary Field Use: Converts 10Mbps Ethernet to 2Mbps fieldbus to connect remote FBM units.
Hard-Numbers: Technical Specifications
- Protocol Support: 10Mbps Ethernet, 2Mbps I/A proprietary fieldbus
- Port Count: 1 Ethernet port, 1 fieldbus port
- Data Rate: 10 Mbps (Ethernet), 2 Mbps (fieldbus)
- Operating Temperature: -20°C to +70°C, G3 environment rated
- Isolation Rating: 1500V RMS between Ethernet and fieldbus circuits
- Power Draw: 24VDC input, 7W maximum power consumption
- Max Connected Devices: Supports up to 30 FBM modules per bus segment
- Hot Swap: Yes, allows online replacement without bus shutdown
- Mounting Style: Standard DIN rail mount
- Cable Type: RG-62 coax for Ethernet segment
The Real-World Problem It Solves
Long cable runs between main control cabinets and remote I/O racks introduce signal loss and electrical interference on legacy DCS networks. Mismatched baud rates also require extra converter hardware that adds more failure points.
Where you’ll typically find it:
- Power plant boiler and turbine remote I/O skids
- Refinery process units with distributed field modules across large areas
- Chemical plant hazardous area enclosures housing FBM I/O cards
This unit consolidates rate conversion and isolation into one DIN rail device to cut extra hardware and keep bus traffic stable.
Hardware Architecture & Under-the-Hood Logic
runs on an onboard microprocessor to handle signal translation and bus monitoring. It acts as a standalone bridge and does not rely on rack backplane processing.
- 10Mbps Ethernet signal arrives via RG-62 coax from main controller nodes.
- Internal isolation barrier separates high-speed network from low-speed fieldbus side.
- Onboard circuitry converts data frames from 10Mbps to 2Mbps for FBM communication.
- Processed data transmits out to the fieldbus segment to all connected I/O modules.
- Built-in diagnostics track link status and trigger fault indication for signal loss.
Field Service Pitfalls: What Rookies Get Wrong
Skipping Proper Bus Termination
Many technicians forget 75Ω termination resistors on the coax Ethernet line. This creates signal reflection and intermittent link drops across the entire bus.
- Field Rule: Install 75Ω terminators at both ends of the 10Mbps coax segment.
Running Excessively Long Fieldbus Cables
Fieldbus runs over 60 meters cause timing errors and slow response from connected FBM cards. Rookies often extend runs without adding repeaters.
- Field Rule: Keep 2Mbps fieldbus total length under 60 meters; add extra for longer segments.
Deploying Single Module Without Redundancy
Installing only one creates a single point of failure. A module fault will take down all remote I/O on that segment.
- Quick Fix: Always deploy two units in 1:1 redundant pair for critical process loops.
