Component Snapshot At-a-Glance

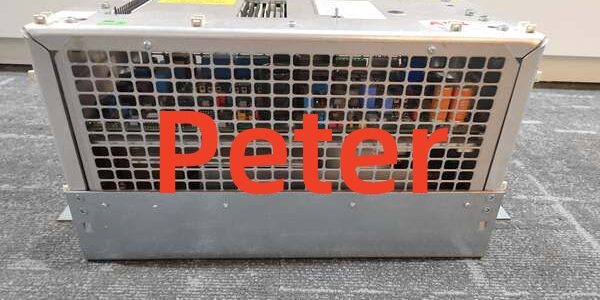

• Model: ABB PFSA140
• Alt. P/N: 3BSE006503R1
• Product Series: ABB Advant OCS, Master DCS Family
• Hardware Type: Rack-mounted Profibus DP slave adapter module
• Key Feature: Isolated Profibus interface with automatic baud rate detection
• Primary Field Use: Links Advant DCS racks to external Profibus DP field devices and remote I/O.

Hard-Numbers: Technical Specifications

• Protocol Support: Profibus DP (Slave mode only)
• Port Count: 1 × Profibus DP terminal port, internal backplane interface
• Baud/Data Rate: 9.6 kbps up to 12 Mbps, auto baud detection enabled
• Operating Temperature: 0°C to +60°C, non-condensing operation
• Isolation Rating: 1500 Vrms between fieldbus and DCS backplane
• Power Draw: 24 VDC from rack backplane, 0.4 A typical, 0.6 A maximum
• Data Exchange: Up to 244 bytes input, 244 bytes output cyclic data
• Bus Length: Max 100 m at 12 Mbps, max 1000 m at 9.6 kbps
• LED Indicators: Power, Run, Bus Fault, Diagnostics
• Form Factor: Standard ABB 8U rack module, hot-swappable

The Real-World Problem It Solves

Legacy Advant DCS racks lack native Profibus ports. Running hardwired point-to-point cables to remote I/O increases wiring labor and fault points across large process areas.

Where you’ll typically find it:

• Chemical and petrochemical plants using ABB Advant OCS DCS platforms
• Power plant balance-of-plant racks connecting Profibus VFDs and motor starters
• Pulp and paper mills linking remote field I/O clusters to main DCS cabinets

This adapter adds Profibus connectivity without full rack replacement and cuts hardwired I/O runs.

Hardware Architecture & Under-the-Hood Logic

This module operates as a dedicated bus slave with onboard protocol controller. Full galvanic isolation separates fieldbus side from DCS backplane circuits.

1. Rack backplane supplies 24 VDC power; internal regulators suppress voltage transients.
2. Profibus signal enters terminal block and passes through surge protection circuits.
3. Isolation barrier blocks ground loops between field network and DCS logic.
4. Onboard protocol controller handles Profibus DP frame processing and cyclic data exchange.
5. Data transfers between protocol chip and DCS backplane via parallel bus interface.
6. Status logic drives front panel LEDs to show power, run state and bus errors.
7. Non-volatile memory stores station address and bus parameters through power cycles.

Field Service Pitfalls: What Rookies Get Wrong

Incorrect Profibus Station AddressTechnicians set duplicate node addresses on the bus. Data collisions trigger constant Bus Fault LEDs and total loss of communication.

• Field Rule: Assign unique station numbers 1–125; document all addresses before powering the bus.

Missing or Misplaced Bus TerminationUsers skip the 120Ω termination resistor or install it on mid-bus nodes. Signal reflections cause intermittent data drops and unstable bus operation.

• Quick Fix: Place termination only at the two physical endpoints of the Profibus trunk.

Mixing Master and Slave ConfigurationsTechs attempt to set as Profibus Master. Module locks into fault state, no data exchange occurs.

• Field Rule: functions strictly as DP Slave. Use separate master hardware for bus control.
