Component Snapshot At-a-Glance

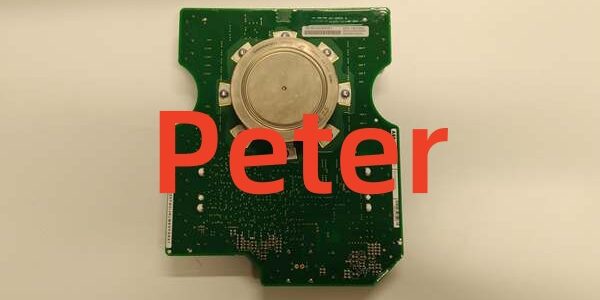

• Model: ABB 5SHX1060H0003
• Alt. P/N: 3BHB020538R0001
• Product Series: ABB 5SHX RC-IGCT family
• Hardware Type: Reverse Conducting Integrated Gate Commutated Thyristor power module
• Key Feature: Integrated freewheeling diode and fiber-optic gate interface for high noise immunity
• Primary Field Use: High power switching for medium voltage converters, reactive power compensation and DC transmission systems.

Hard-Numbers: Technical Specifications

• Blocking Voltage: 3300 V rated, 4500 V DC maximum blocking
• Continuous Current: 1000 A nominal, 1600 A peak surge current
• Operating Temperature: -40°C ambient; maximum junction temperature 125°C
• Isolation Rating: 12 kV isolation between power terminals and gate circuit
• Gate Interface: Fiber optic signal, no hard-wired electrical gate connections
• Turn-Off Time: Less than 1 µs typical switching time
• On-State Voltage: 2.5 V at rated continuous current
• Cooling Requirement: Liquid water cooling only; forced air cooling not supported
• Max Switching Frequency: 1000 Hz standard operating range
• Weight: 5.5 kg per single module

The Real-World Problem It Solves

Discrete GTO setups need extra external diodes and snubber circuits, which add cabinet size and raise failure points. Standard IGBT modules lack voltage and current ratings for medium voltage high-power applications.

Where you’ll typically find it:

• Medium voltage variable frequency drives for large fan, pump and mill loads
• Static Var Compensator units for power factor correction in substations
• HVDC Light and modular multilevel converters for power transmission

This integrated power module cuts external component count and fits standard high-power converter mechanical layouts.

Hardware Architecture & Under-the-Hood Logic

This monolithic power module combines IGCT, anti-parallel diode and gate receiver inside a single sealed package. Optical isolation separates low-voltage control from high-voltage power stages.

1. Fiber optic gate signal arrives and triggers the internal gate drive circuit.
2. Main IGCT turns on to conduct load current through primary power terminals.
3. Load current reverses direction and flows through the integrated freewheeling diode during commutation cycles.
4. Shutdown optical signal forces IGCT into blocking state within rated turn-off time.
5. Internal thermal sensors track junction temperature for over-temperature protection.
6. All power and signal paths use internal insulation to prevent arcing across terminals.

Field Service Pitfalls: What Rookies Get Wrong

Using Air Cooling Instead of Water CoolingTechnicians attempt to run this module with heat sinks and fans. Junction temperature spikes rapidly and causes permanent semiconductor damage.

• Field Rule: Install certified ABB water cooling hardware; maintain inlet water temperature below 40°C at all times.

Damaging Fiber Optic Cables During HandlingBending fiber cables below minimum radius or pinching lines breaks signal transmission. The module will not switch and stays in blocking state.

• Quick Fix: Keep fiber bend radius above 50 mm; route cables away from sharp edges and hot surfaces.

Improper Torque on Power TerminalsUnder-torque creates high resistance and hot spots. Over-torque cracks the module base plate and ruins internal connections.

• Field Rule: Torque main power terminal bolts to manufacturer specified value; recheck torque after initial thermal cycling.

Mixing Mismatched Modules in Parallel/StringsPairing different IGCT part numbers in parallel or series creates uneven current and voltage sharing. Overstress leads to sudden module failure.

• Quick Fix: Use only identical 5SHX1060H0003 modules for series or parallel configurations.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
