Component Snapshot At-a-Glance
- Model: FBM242
- Alt. P/N: RH916TA (primary factory part marking)
- Product Series: Foxboro I/A Series & EcoStruxure Foxboro Evo 200-Series FBM Platform
- Hardware Type: External field-fed solid-state discrete output FBM card
- Key Feature: Full per-channel galvanic isolation with separate field load power independent of backplane 24VDC
- Primary Field Use: Switches AC/DC solenoids, motor contactors and shutoff valves via external field power sourced from site MCC distribution.
FBM242
Hard-Numbers: Technical Specifications
- Protocol Support: 2Mbps redundant HDLC Nodebus compatible with CP60 / FCP280 host controllers
- Port Count: 16 isolated discrete output field channels + rear goldfinger backplane connector
- Baud/Data Rate: Fixed 2Mbps HDLC backplane bus speed
- Operating Temperature: -20°C ~ +70°C continuous cabinet ambient rating
- Isolation Rating: 2500VDC channel-to-backplane and channel-to-channel galvanic isolation
- Power Draw: 3.0W quiescent; max 6.5W full load drawn exclusively from backplane 24VDC SELV rail
- Load Ratings: 2A max per DC channel (15–60VDC); 0.5A max per AC channel (120/240VAC)
- Hot-Swap Rating: Hot plug allowed only on redundant dual-bus baseplate setups
- Fault Configuration: Software selectable fail state: hold, de-energize or energize per output channel
The Real-World Problem It Solves
Common internal-powered DO modules pull load current through the DCS backplane supply; shorted field solenoid coils overload rack DC power and crash adjacent I/O cards during process runtime. Non-isolated legacy output hardware lets field-side AC surge feed back into Nodebus, triggering mass FBM dropout across the entire control rack.Where you’ll typically find it:
- Coal-fired boiler cabinet controlling furnace dampers, burner ignition solenoids and auxiliary lube oil pumps
- Refinery CDU rack driving emergency block valves and pump motor starter auxiliary contact coils
- Offshore FPSO process skid enclosures managing separator drain valve and flare purge solenoid outputs
External field-powered design keeps short-circuit damage confined to individual field wiring without stressing rack backplane power resources.
Hardware Architecture & Under-the-Hood Logic
This module carries a dedicated on-board logic ASIC and independent opto-isolation per output channel; load power paths run entirely separate from DCS internal backplane circuitry to block fault propagation onto Nodebus.

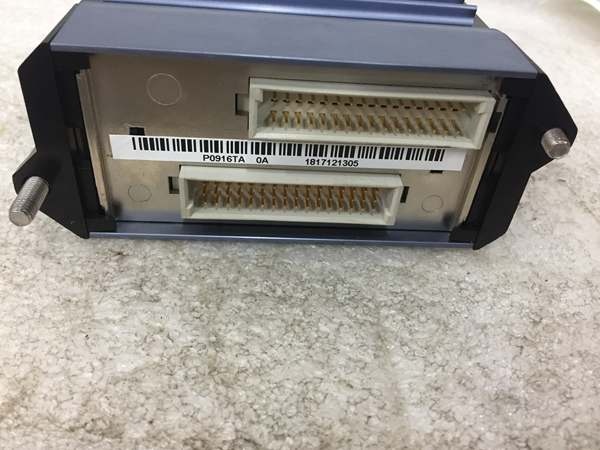

- Rear goldfinger header pulls regulated 24VDC operating power and HDLC command frames from host FCP/CP backplane bus.
- Onboard ASIC decodes DCS setpoint commands and routes individual on/off signals to each isolated optocoupler driver circuit.
- Opto barrier electrically splits low-voltage card logic from high-potential external field AC/DC load wiring.
- Solid-state power switches toggle field-supplied load voltage to connected solenoid or contactor devices per incoming control instruction.

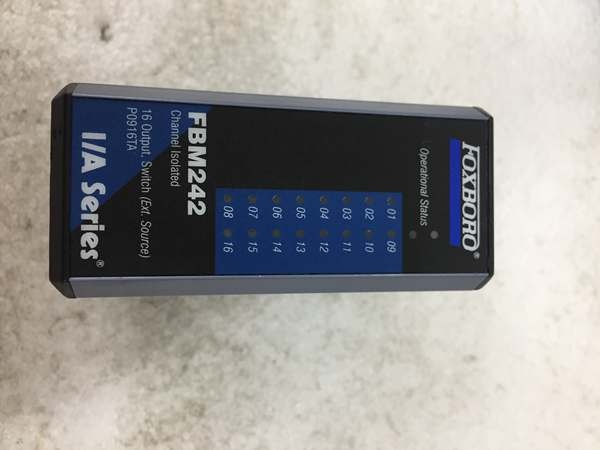

- Front panel LED bank lights per-channel switch status plus module RUN/FAULT indicators for rapid on-site troubleshooting without workstation access.
FBM242
Field Service Pitfalls: What Rookies Get Wrong
Direct Backplane 24VDC Used As Field Load Power
New tech taps rack internal 24V rail to power field solenoids instead of external MCC feed; overcurrent from coil shorts drains backplane supply and drops neighboring FBM cards offline.
- Field Rule: Source all field load power exclusively from separate site MCC derived wiring; never tie load circuits to DCS cabinet backplane DC.
Omit Channel Fusing On Field Termination Assembly
Field crew skips fuse-equipped TA terminal bases and hardwires outputs directly to loads; shorted valve coil blows internal solid-state switches and permanently disables single output channels.
- Quick Fix: Install factory fused TA terminal blocks for every field wiring run to limit short-circuit damage per channel.
Parallel AC Load Cabling Beside Nodebus Trunk Wire
Improper tray routing routes 120/240VAC output wiring alongside Nodebus data cable; radiated EMI corrupts HDLC frames leading to intermittent random output toggling.
- Field Rule: Maintain minimum 12cm physical separation between AC load conductors and all Nodebus communication cabling inside shared cable trays.
