Core Overview

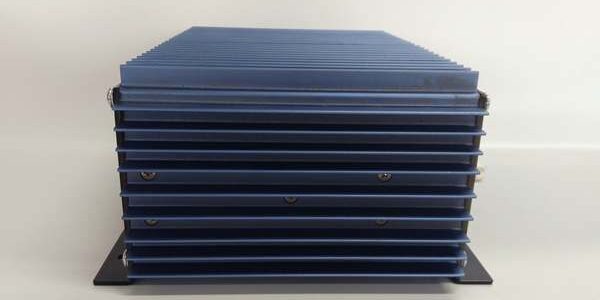

Model No.: P0922YU (Alias FPS400-24)Brand: Foxboro (Schneider Electric / Invensys legacy)Product Line: I/A Series DCS, exclusively for 200-Series FBM baseplate power feedingFunction: 400W industrial DIN-rail power supply delivering regulated 24VDC to fieldbus FBM I/O racks in petrochemical, power & refining control cabinets
Key Electrical Parameters
- Input Range: 85~265VAC (47–63Hz) / 108~145VDC, nominal 120/240VAC or 125VDC
- Output Spec: 24VDC, 16.7A continuous, total rated output power = 400W
- Efficiency: Up to 95% under full rated load; low ripple noise ≤100mV peak-peak
- Input Current: Max 5.6A@85VAC, 2.5A@230VAC
Built-in Circuit Protection
- Dual-stage overload current limiting (trip above 110% rated load @25℃)
- Overvoltage shutdown at 28VDC factory preset threshold
- Internal non-serviceable 10A slow-blow fuse
- Short-circuit auto-lock protection
- Isolation rating: 3000VAC input-output; 500VAC output-chassis ground
Mechanical & Environmental Data
- Dimension: 215×195×107mm | Net Weight: 2.67kg
- Mounting: Horizontal / vertical DIN rail or wall bracket mount (vertical needs accessory X0175TQ DIN clamp)
- Cooling: Full convection cooled, zero built-in fan for low maintenance
- Operating Temp: -30℃ ~ +71℃; Storage: -55℃ ~ +85℃; 5~95%RH non-condensing humidity
- Altitude Rating: Operate up to 3000m above sea level
Certification & Hazardous Area Approval
UL / CE / CENELEC / ATEX certified; approved for Class I Div.2 & Zone2 explosive hazardous locations (IIC T3) for oil & gas, chemical plant cabinet installation.
Field Application & Compatibility
Only factory-qualified power source for Foxboro 200-series DIN-mounted FBM baseplates (FBM201/FBM204/FBM230 etc.) inside I/A DCS marshalling cabinets; used to power both backplane logic and connected field instrument loops.Cross reference counterpart: P0922YC (24VDC input variant of FPS400-24 series)
Common On-site Troubleshooting Notes
- Red LED alarm triggers on overvoltage/overload/short-circuit cut-off; cut all rack load first before power reset
- Excess cabinet ambient over 71℃ accelerates aluminum housing heat saturation leading to intermittent shutdown
- Vertical DIN installation missing X0175TQ clamp will cause loose mounting and unstable power output under vibration
