Component Snapshot At-a-Glance

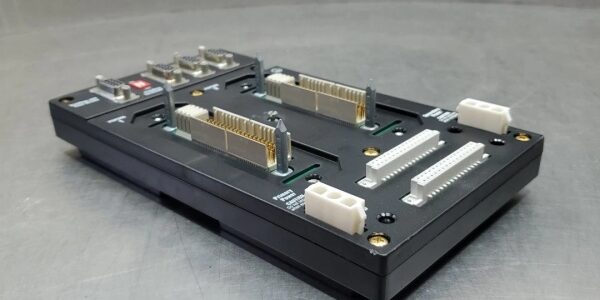

- Model: RH924YL
- Alt. P/N: No cross OEM alternate part; sibling vertical baseplate = RH924YF
- Product Series: Foxboro I/A Series FCP280 Controller Baseplate Family
- Hardware Type: Horizontal rack mount dual-slot backplane baseplate for FCP280 processor cards
- Key Feature: Built-in integrated backplane bus routing + redundant 24VDC power distribution to both controller slots
- Primary Field Use: Physical mounting and power/bus interconnect for single or redundant field controllers driving FBM I/O racks.
Hard-Numbers: Technical Specifications
- Protocol Support: Native I/A proprietary fieldbus backplane, routes signal to downstream FBM modules, 100Mbps copper control network pass-through
- Port Count: 2 FCP card edge slots; terminal block for dual redundant 24VDC input wiring; onboard bus header for FBM expansion trunk
- Baud/Data Rate: Fixed backplane bus speed matching internal fieldbus clock
- Operating Temperature: Rated 0°C ~ +60°C continuous cabinet operation; -20°C ~ +70°C short-term ambient swing
- Isolation Rating: 1500VAC galvanic isolation between fieldbus signal traces and DC power rail on PCB
- Power Draw: Baseplate idle draw ≤1.2W; full load with two populated = max 28W total from 24VDC input
- Input Power Spec: 24VDC nominal (19–30VDC acceptable), supports dual redundant feed for no-break controller power
- Slot Capacity: 2 physical slots for (RH924YA), single or hot-redundant pairing allowed
- Unit Weight & Dimension: 400×125×58mm, net 0.4kg per bare baseplate
The Real-World Problem It Solves
Custom cut makeshift wiring harnesses for standalone introduce loose crimps and ground loops that trigger intermittent controller dropouts across entire I/O racks. Vertical-only RH924YF baseplates fail to fit shallow compact cabinet footprints common in retrofit boiler and offshore MCC enclosures.
Where you’ll typically find it:
- Refinery reformer compact side cabinets: Redundant rack mounting for furnace temperature and feed flow interlock control
- Coal plant boiler BMS small footprint MCC: Horizontal baseplate installation in narrow existing cabinet cutouts during DCS upgrade
- Offshore FPSO process skid junction boxes: Space-limited enclosure mounting for crude separation loop standalone controllers
Standardized horizontal footprint eliminates custom wiring errors and fits shallow retrofit cabinets to avoid costly cabinet rebuild downtime.
Hardware Architecture & Under-the-Hood Logic
This is a passive + semi-active hybrid backplane; no onboard CPU, PCB traces route raw DC power and differential fieldbus signals between terminal blocks and card slots, with inline filtering components to suppress cabinet EMI noise.
- Dual redundant 24VDC input terminals feed shared fused DC bus across the baseplate PCB
- PCB split power rail isolates left/right FCP slot feeds to limit single slot short from taking down paired redundant controller
- Differential fieldbus traces run parallel from each card slot to a centralized expansion header for downstream FBM trunk cabling
- Surface mount ferrite beads on every bus line damp switching noise generated from adjacent VFD and relay loads inside cabinet
- Slot edge gold finger pins directly mate to ’s power and bus connectors to eliminate intermediate loose jumper wiring
Field Service Pitfalls: What Rookies Get Wrong
Daisy-Chaining Single DC Feed Across Dual Redundant Power TerminalsNew tech ties both baseplate DC input terminals to one single 24VDC supply; redundant feed design becomes useless, upstream supply fuse blow drops both redundant FCP controllers mid-running process.
- Field Rule: Run two fully isolated 24VDC source feeds from separate power supplies to each of the two baseplate input terminals.
Over-Torquing Terminal Block Screws Crimp Internal PCB TracesExcessive screwdriver torque cracks PCB copper traces under terminal lugs; thermal cycling opens cracked traces months post-commission leading to random controller fault codes.
- Quick Fix: Torque DC terminal screws to 0.8–1.0 N·m; mark set torque on terminal strip for follow-up site checks.
Vertical spec will not fully seat into horizontal pin layout; partial insertion bends gold backplane pins and creates unstable intermittent bus communication.
- Field Rule: Crosscheck part suffix before installation; YL = horizontal baseplate only, YF = vertical DIN mount only.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
