Component Snapshot At-a-Glance

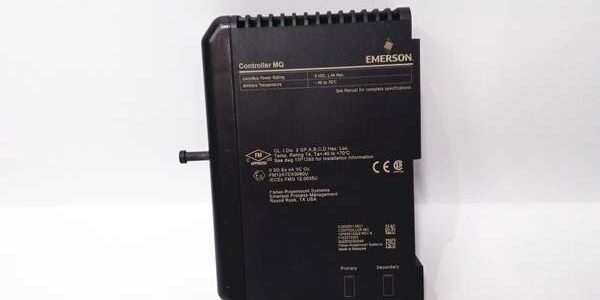

- Model: KJ2005X1-MQ1
- Alt. P/N: VE3008, 12P6381X022 / 12P6381X032
- Product Series: Emerson DeltaV MQ Compact Controller Series
- Hardware Type: Rack-mounted standalone process control CPU card
- Key Feature: Native dual-controller hot standby redundancy capability on shared backplane
- Primary Field Use: Executes loop control logic for small I/O racks across utility boiler, chemical batch and oilfield skid-mounted DCS systems
Hard-Numbers: Technical Specifications
- Protocol Support: DeltaV LocalBus, Modbus TCP/IP, Modbus RTU, Ethernet for workstation host link
- Port Count: 1 backplane LocalBus edge connector, dual RJ45 onboard Ethernet ports
- Baud/Data Rate: LocalBus 312.5kbps; Ethernet fixed 10/100Mbps auto-negotiate
- Operating Temperature: -40°C ~ +70°C continuous rack rated; 0°C~+60°C preferred steady-state run
- Isolation Rating: 2500V backplane-to-Ethernet port isolation for surge protection
- Power Draw: +5VDC LocalBus input, 1.4A max; typical dissipation 5W, peak 7W
- Memory Spec: 512KB Flash program storage, 256KB volatile runtime RAM
- Max I/O Expansion: Supports up to 8 DeltaV I/O modules on same carrier rack
- Humidity Rating: 0–95% RH non-condensing cabinet ambient only
The Real-World Problem It Solves
Small skid-mounted process units previously required full-size SX-series controllers that waste critical cabinet space and inflate spare parts inventory costs. Older fixed-logic cards lack online program download capability, forcing full process shutdown to update control code.
Where you’ll typically find it:
- Petrochemical offloading skid: Valve sequencing and flow PID control for truck unloading manifolds
- Coal plant auxiliary water cabinet: Boiler feedwater makeup pump level and pressure loop control
- Offshore well test skid: Compact DCS rack for crude sample separation process regulation
This compact MQ controller packs full DeltaV control functionality into half-size rack footprint and permits online logic edits without stopping connected field equipment.
Hardware Architecture & Under-the-Hood Logic
This card locks directly into standard DeltaV vertical I/O carrier backplane and houses an on-board dedicated 32-bit ARM core processor; all field bus and network circuits feature isolated PCB barrier to block rack-borne EMI noise.
- Backplane LocalBus pulls raw analog/digital I/O data from all installed rack I/O cards into controller onboard buffer
- Onboard CPU executes configured PID, interlock and batch logic from stored Flash program memory
- Calculated output setpoints route back across isolated LocalBus to corresponding field I/O modules
- Ethernet stack packages real-time process tags and diagnostic data to DeltaV operator workstation via TCP/IP
- Redundancy sync channel mirrors runtime RAM data to paired standby for seamless failover trigger
Field Service Pitfalls: What Rookies Get Wrong
Improper Redundancy Sync WiringNew technicians skip dedicated inter-card sync cable between paired redundant MQ controllers, triggering random 2–5 second dropouts during primary card fault events; I’ve logged 8 unplanned batch trips from this misconfiguration in chemical batch facilities.
- Field Rule: Install factory specified flat sync ribbon between adjacent slot controllers before powering rack, avoid splicing custom copper wire.
Overloading Rack LocalBus PSU CapacityStacking more than 7 high-draw HART AI modules alongside dual redundant MQ cards exceeds backplane 5VDC power budget, causing intermittent controller cold resets during peak process swings.
- Quick Fix: Split excess I/O onto secondary empty carrier rack when total calculated backplane draw exceeds 90% of PSU rated output.
Poor Cabinet Ventilation Near VFD Heat SinksMounting controller rack within 15cm of variable frequency drive heat exhaust pushes ambient above +72°C, activating internal thermal shutdown protection and blanking controller status LEDs.
- Field Rule: Maintain minimum 20cm clearance between DCS rack and all heat-generating power drive equipment; add cabinet exhaust fan for ambient exceeding +55°C.
