Product Core Brief
- Model: IS220PPDAH1B
- Brand: General Electric (GE)
- Series: Mark VIe (Speedtronic)
- Core Function: PPDA (Power Distribution Feedback) module — provides comprehensive system feedback and monitoring for the Mark VIe power distribution system, including ground fault detection, bulk power supply health, power bus voltage, and branch circuit status.
- Product Type: PPDA Power Distribution Feedback Module (I/O Pack)
- Key Specs: Dual redundant Ethernet (IONet) | 28VDC power input | Ground fault detection | Bus voltage monitoring | Branch circuit status feedback | Hazardous location rated | Conformal coated
- Condition: New Original / New Surplus
Product Introduction
The GE IS220PPDAH1B is a PPDA (Power Distribution Feedback) module in GE’s Mark VIe Speedtronic control system, serving as the critical monitoring interface for the turbine’s power distribution system. Unlike standard power distribution methods that simply route power to loads, the PPDA module provides complete system feedback — continuously monitoring power quality, detecting faults, and reporting status information back to the Mark VIe controller via the IONet network.
The module’s core function is to monitor and report on the health of the Mark VIe power distribution system. It provides feedback on:
- Ground fault detection — identifying insulation breakdown or ground faults in the DC power distribution system before they escalate into trips or equipment damage
- Bulk power supply health — monitoring the status and output of the main power supplies feeding the control system
- Power bus voltage — continuously measuring and reporting bus voltage levels to detect undervoltage or overvoltage conditions
- Branch circuit status — receiving feedback from up to six PDM (Power Distribution Module) components, monitoring the status of individual branch circuits that power field devices, solenoids, and control equipment

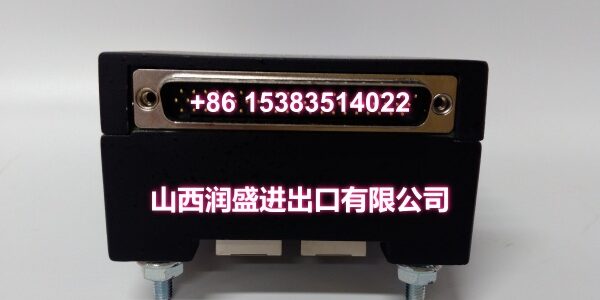

The IS220PPDAH1B communicates with the Mark VIe processor (such as the UCSAH or UCSBH series) via dual redundant 10/100Mbps Ethernet ports (IONet), ensuring that critical power system status information continues to reach the controller even if one network cable fails. The module connects to compatible power distribution terminal boards (JPDG, JPDS, JPDM, or JPDC series) via a DC-62 pin connector, which routes the power distribution signals to the module for processing.
The module is approved for use in hazardous locations (Class 1, Division 2, Groups A, B, C, D, T4A) when paired with compatible terminal boards, making it suitable for installation in turbine control cabinets and other areas where flammable gases or vapors may be present. Front-panel LEDs provide at-a-glance diagnostics for power, attention, and Ethernet communication status.
An important distinction: while the PPDA module provides feedback and monitoring for branch circuits, the branch circuits themselves do not connect directly to the PPDA pack. Instead, the PPDA receives feedback data from the PDM components (JPDx boards) that host the actual branch circuit breakers and fuses. The PPDA uses electronic ID to identify each PDM component, then populates the IONet output with the correct feedback information for the controller.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Type | PPDA Power Distribution Feedback Module (I/O Pack) |
| Series | Mark VIe (Speedtronic) |
| Communication | Dual redundant 10/100Mbps Ethernet (RJ45, IONet) |
| Terminal Board Interface | DC-62 pin female connector |
| Power Input | 28VDC, 0.24A |
| PDM Feedback Channels | Up to 6 PDM components |
| Monitoring Functions | Ground fault detection, bulk power supply health, bus voltage, branch circuit status |
| Operating Temperature | -30°C to +65°C |
| Hazardous Rating | Class 1, Div. 2, Groups A-D, T4A; ATEX Zone 2 |
| Conformal Coating | Yes (for harsh environment protection) |
| Certifications | CE, UL Listed (E207685), ATEX (DEMKO13ATEX1214780X) |
| Application | Turbine power distribution monitoring, ground fault detection, DC system health monitoring |
| Origin | USA |
Quality Control Process
Every IS220PPDAH1B goes through a full functional bench test before it ships. We start with a visual PCB inspection — checking for cold solder joints, burnt traces, swollen capacitors, and verifying the integrity of the DC-62 pin connector and both RJ45 Ethernet jacks. We also inspect the conformal coating for any cracks or peeling that could compromise environmental protection.
Then we power it up on a regulated 28VDC supply and verify the power draw is within the 0.24A spec. We test both Ethernet ports by connecting to a network switch and confirming link/activity LEDs illuminate on each port, then verifying the module registers on the IONet with its correct hardware ID. We test the redundant communication function by disconnecting one Ethernet cable and confirming the module continues to communicate over the remaining link without data loss.
We verify the ground fault detection function by simulating a ground fault condition and confirming the module correctly reports the fault status via IONet. We test the bus voltage monitoring function by applying known voltage levels and confirming the module reports accurate readings. We verify the PDM feedback function by connecting a compatible JPDx terminal board and confirming the module correctly reads and reports the PDM’s electronic ID and branch circuit status. We run a continuous monitoring test for several hours, confirming the module maintains stable communication and accurate reporting throughout. Finally, we confirm the module is compatible with the specified terminal boards (JPDG, JPDS, JPDM, JPDC series) by performing a physical connection test. Each unit ships in anti-static foam with a moisture barrier bag.
Replacement Pitfall Guide
❗ Verify the terminal board compatibility before installation. The IS220PPDAH1B must be paired with compatible power distribution terminal boards (JPDG, JPDS, JPDM, or JPDC series). Using an incompatible terminal board can result in incorrect pinouts, preventing the module from reading PDM feedback data correctly. Always confirm the terminal board model matches the PPDA module specification.
❗ Confirm the PDM electronic ID configuration. The PPDA module uses electronic ID to identify each connected PDM component. If the replacement module’s ID configuration doesn’t match the original, the module may not correctly associate feedback data with the right PDM, leading to incorrect branch circuit status reporting. After installing the replacement, verify the PDM ID configuration in ToolboxST matches your system’s power distribution layout.
❗ Check the IONet network configuration. The PPDA module communicates over IONet, and its network address must be correctly configured in the Mark VIe system. If the replacement module has a different network address than the original, the controller will not receive its feedback data. Verify the network address in ToolboxST after installation.
❗ Don’t skip the ground fault detection test. After installing the replacement, verify the ground fault detection function by simulating a ground fault condition (using a test resistor to create a controlled ground path) and confirming the module correctly reports the fault via IONet. A PPDA module that fails to detect ground faults leaves the power distribution system unprotected.
❗ Verify the bus voltage monitoring accuracy. The PPDA module’s bus voltage monitoring is critical for detecting undervoltage and overvoltage conditions that could damage control equipment. After installation, compare the module’s reported bus voltage against a calibrated multimeter reading at the power distribution bus. Significant discrepancies indicate a calibration issue that needs to be addressed.
❗ Watch for Ethernet cable routing issues. The dual Ethernet ports provide redundant communication, but both cables must be routed through separate physical paths to provide true redundancy. If both cables run through the same cable tray and that tray is damaged, you lose both communication paths simultaneously. Route the primary and backup Ethernet cables through separate conduits or cable trays.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| IS220PPDAH1C | Direct | Later revision; drop-in compatible | |
| IS220PPDAH1A | Direct | Earlier revision; verify firmware match | |
| Mark VIe legacy PPDA | Direct | Drop-in for Mark VIe power distribution racks | |
| IS420PPDAH1B | Needs Adaptation | Mark VIeS variant; requires I/O network migration |
- Monitoring: Ground fault detection, bus voltage, bulk power supply health, branch circuit status
- Feedback Channels: Receives data from up to 6 PDM components
- Communication: Dual Ethernet ports for redundant IONet connectivity
