Product Core Brief

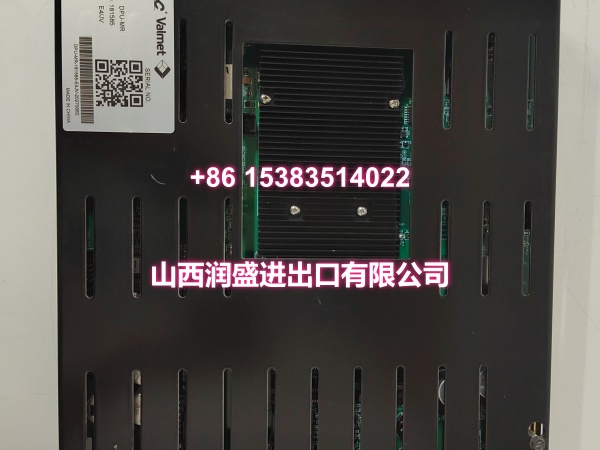

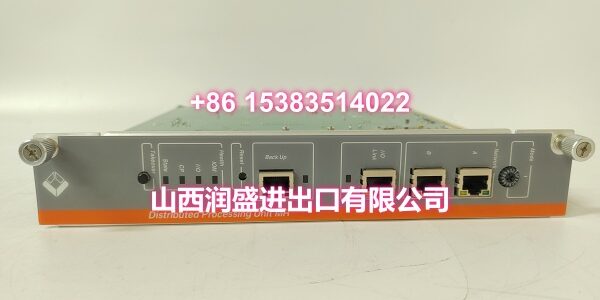

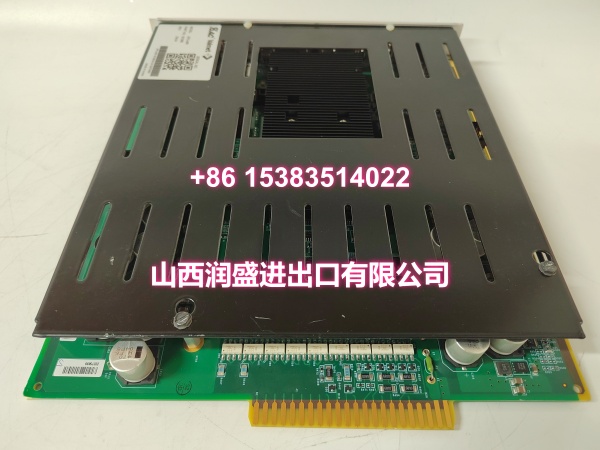

- Model: DPU-MR
- Brand: Metso
- Series: Digital Processing Unit (DPU)
- Core Function: Executes real-time control logic and processes multi-channel I/O data for mining and aggregate applications.
- Product Type: Digital Processing / I/O Controller Module
- Key Specs: Multi-Channel Input | Ethernet/Serial Comm | Real-Time Data Logging
- Condition: New Surplus / OEM Original
Key Technical Specifications
- Architecture: Distributed Control System (DCS) Node
- I/O Capacity: Multi-channel input support for simultaneous parameter recording
- Data Types: Temperature, Pressure, Flow, Current
- Communication: Ethernet, Serial Interfaces
- Processing: High-performance algorithm execution
- Storage: Internal memory with external backup capability
- Alert System: Configurable real-time monitoring and notification thresholds
- Environment: Industrial-grade rating for harsh conditions
- Integration: Compatible with broader Metso automation ecosystems
Product Introduction
Deployed in mining and aggregate processing, this unit handles critical monitoring and control loops where uptime is non-negotiable. It manages sensor inputs and executes complex algorithms directly at the edge of the network.
Operators gain immediate visibility into process variables through built-in data logging and configurable alert thresholds. This local processing reduces latency and ensures critical decisions happen before central systems even register the event.
QA & Testing SOP (Dynamic & Transparent)
We don’t just plug these in and hope. Every Metso DPU-MR goes through a specific validation protocol before it leaves our bench. First, we run a visual and electrical anti-counterfeit inspection, checking PCB revisions and component date codes against OEM manifests. Then, we perform a cold-boot stress test to verify firmware integrity and memory stability under power cycling.
Next comes signal validation. We inject full-scale 4-20mA and voltage signals across all I/O channels using calibrated process calibrators to verify linearity and response time. Finally, we establish a live Ethernet link to confirm communication stack stability and log any handshake errors. Units ship in anti-static shielding with test reports attached.
Installation Pitfalls & Guide
❗ Grounding Loops: This unit processes analog signals. If your cabinet ground and signal ground aren’t bonded at a single point, you’ll see noise in your flow or pressure readings. Check your ground busbar resistance before powering up.
❗ Backplane Seating: The connector pitch is tight. Forcing it will bend pins. Always align the guide rails first and apply even pressure. A misaligned pin can short the 5VDC rail and brick the module.
❗ Firmware Mismatch: Don’t assume “new surplus” means “plug-and-play.” Check the firmware revision on the label against your existing DPU-MR units. A version jump might require a configuration migration or parameter reset.
Replacement SOP:
- Pre-Install: Backup current configuration and verify replacement firmware version.
- Removal: Power down the backplane slot; wait 60 seconds for capacitor discharge.
- Install: Seat module evenly; verify LED status indicators before tightening.
- Power-On: Energize slot only; monitor boot sequence for 2 minutes before enabling I/O.
Technical FAQ
Q: Can I hot-swap this DPU-MR while the backplane is live?
A: No. The backplane architecture on this generation lacks individual slot isolation. Hot-swapping risks a voltage sag that can crash neighboring processors. Always de-energize the specific slot or the entire rack if individual slot switching isn’t available.
Q: Is this unit compatible with older Metso DPU revisions?
A: Generally yes, but check the suffix. Hardware compatibility is usually maintained, but firmware logic blocks may differ. We recommend running a configuration compatibility check in your engineering software before the swap to avoid silent logic failures.
Q: Why does the price fluctuate for this model?
A: Industrial surplus is a spot market. Pricing reflects real-time global inventory levels and OEM lead times. When factories are backlogged, new surplus prices rise. We update pricing daily to reflect actual replacement cost, not arbitrary markups.
Q: What warranty do you provide on these units?
A: We offer a standard 12-month functional warranty. This covers internal component failure and firmware corruption. It does not cover physical damage from improper installation, ESD events, or power surges. If it fails our bench test, we replace it. Period.
Q: How do I know if this is an obsolete part?
A: Metso has shifted to newer platforms, but the Metso DPU-MR remains in active support for legacy systems. We classify it as “New Surplus” or “OEM Refurbished” depending on stock. For new greenfield projects, we’d advise the latest generation, but for maintaining existing lines, this is still the correct, supported choice.
