Product Core Brief
- Model: SDI-1624 (also known as FC- / FS-)
- Brand: Honeywell
- Series: FSC (Fail Safe Controller) / Safety Manager
- Core Function: Monitors discrete field signals for safety-critical logic evaluation.
- Product Type: 16-Channel Safety Digital Input Module
- Key Specs: 16 Channels | 24 VDC | SIL 3 / IEC 61508
- Condition: New Original (New Surplus)
Product Introduction
The is a 16-channel safety digital input module designed for Safety Instrumented Systems (SIS) and Emergency Shutdown (ESD) applications. It serves as the critical interface for reading discrete signals from field devices such as emergency stop switches, safety relays, limit switches, and proximity sensors.
Engineered for high-integrity environments, this module processes binary signals with built-in diagnostics for open circuits, short circuits, and signal degradation. The ensures that critical safety parameters are accurately evaluated, triggering immediate shutdown protocols or alarms when predefined safety limits are breached.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 16 independent digital inputs |
| Input Voltage | 24 VDC (Nominal) |
| Input Voltage Range | 20 VDC to 30 VDC |
| Rated Input Current | 2 mA |
| Response Time | < 10 ms |
| Safety Integrity Level | SIL 3 (IEC 61508 / IEC 61511) |
| Diagnostics | Wire break, Short circuit, Safe state detection |
| Operating Temp | -15 °C to +70 °C |
| Bus Interface | FSC / Safety Manager Backplane |
| Certifications | UL, CE, IEC 61508 |

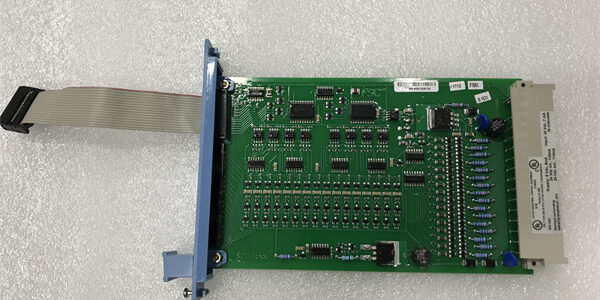

Honeywell SDI-1624
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against Honeywell’s traceability records. A visual inspection checks for bent pins on the backplane connector and ensures the DIN rail clip isn’t cracked.
- Live Functional Test: We mount the unit in a live FSC/Safety Manager test rack. We simulate 24 VDC signals on all 16 channels and verify the status bits update correctly in the controller within the <10 ms response window.
- Electrical Parameter Test: We perform a 500 V Megger test between the field wiring terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is also verified.
- Diagnostic Injection Test: We intentionally inject open-circuit and short-circuit faults on individual channels to confirm the module’s internal diagnostics trigger the correct fault codes without false tripping other channels.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on safety systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing Safety Manager CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
- DIP Switch / Jumper Misconfiguration: This module uses hardware addressing for slot and channel grouping. If you pull the old card and forget to transfer the binary address switches to the new one, the CPU will report a missing or misconfigured module.
- Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. A shorted limit switch or grounded cable in the field will immediately trip the ‘s internal protection and lock out the channel, mimicking a module failure.
- Power Supply Mismatch: Verify your external 24 VDC field power supply has at least 20% headroom over the total calculated load. Sixteen channels driving inductive loads can draw significant current during simultaneous switching.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Honeywell SDI-1624
Compatibility Matrix & Benchmarks
Compatibility
- Honeywell V1.0 → V1.1 : Direct Replacement — Verify firmware compatibility with Safety Manager CPU.
- Honeywell FC- → : Direct Replacement — Same module, different prefix nomenclature.
- Honeywell FS- → : Direct Replacement — Verify voltage rating (24 VDC).
Benchmarks
- Diagnostic Coverage: >99% (internal dangerous failure detection)
- Safe State Transition: < 10 ms (upon critical fault detection)
