Product Core Brief
- Model: CC-PCNT01
- Brand: HONEYWELL
- Series: Experion C300 / CC-Series
- Core Function: Executes deterministic control logic and acts as an I/O gateway for the Experion system.
- Product Type: Distributed Process Controller Module
- Key Specs: CEE Software | IOTA Mounting | Redundant Capable
- Condition: New Original (New Surplus)
Product Introduction

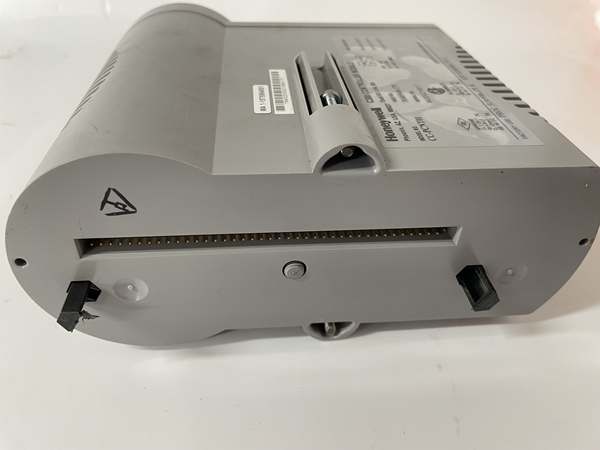

HONEYWELL CC- serves as a high-performance distributed process controller and I/O gateway for the Experion DCS. It runs the field-proven Control Execution Environment (CEE) software to provide robust and deterministic control.
This module supports standard function blocks as well as Custom Algorithm Blocks (CABs) for specialized process strategies. It mounts directly onto the C300 Input Output Termination Assembly (IOTA) base. Verify with OEM datasheet for exact memory allocation, though standard configurations easily handle complex continuous and sequential control.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Function | Distributed Process Controller / I/O Gateway |
| Software Environment | Control Execution Environment (CEE) |
| Customization | Supports Custom Algorithm Blocks (CAB) |
| Base Assembly | C300 IOTA |
| Redundancy | 1:1 Hot Standby Supported |
| Diagnostics | Status Indicators & Display |
| Series Compatibility | Experion C300 / CC-Series |
| Application | Continuous & Sequential Process Control |
| Mounting | Chassis / IOTA Base |
| Environment | Industrial Control Room |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- HONEYWELL CC- → HONEYWELL CC- : Direct — Identical replacement
- HONEYWELL CC- → HONEYWELL CC-PCNT02 : Needs Adaptation — Verify firmware compatibility and feature set differences
- HONEYWELL CC- → HONEYWELL CC-PAIH01 : Incompatible — CC-PAIH01 is an analog input module, not a controller
- HONEYWELL CC- → HONEYWELL CC-PDIS01 : Incompatible — CC-PDIS01 is a digital input module
- Logic Scan Time: < 10 ms (Typical continuous control)
- Redundancy Switchover: < 50 ms (Bumpless transfer)
