Product Core Brief
- Model: FC-IOCHAS-0002R
- Brand: HONEYWELL
- Series: Experion C300 / FCM
- Core Function: Houses redundant I/O modules with dual power and bus paths.
- Product Type: Redundant I/O Chassis
- Key Specs: 24 V DC | Redundant Bus | 16-Slot Capacity
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL FC- serves as the redundant chassis for C300 and FCM I/O cards. It provides dual backplane buses and power feeds for high availability.
This unit supports hot-swap operations without interrupting the controller. Physical keying prevents incorrect module insertion. Verify with OEM datasheet for exact power budget per slot, though typical installations stay well within limits.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Chassis Type | Redundant I/O Rack |
| Slot Capacity | 16 Slots |
| Bus Architecture | Dual Redundant |
| Input Voltage | 24 V DC (Redundant) |
| Hot Swap | Supported |
| Physical Keying | Module Specific |
| Series Compatibility | C300 / FCM |
| Mounting | 19-Inch Rack |
| Backplane Current | High Capacity |
| Environmental | Control Room Rated |

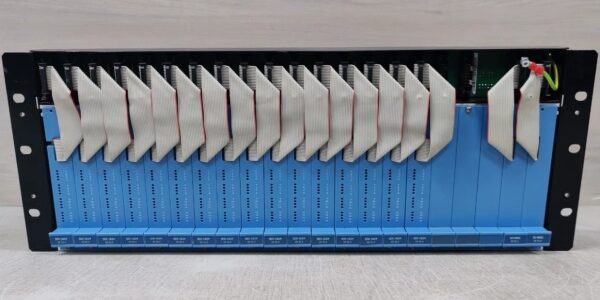

Honeywell FC-IOCHAS-0003R
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Honeywell FC-IOCHAS-0003R
Compatibility Matrix & Benchmarks
- HONEYWELL FC- → HONEYWELL FC- : Direct — Identical replacement
- HONEYWELL FC- → HONEYWELL FC-IOCHAS-0002S : Needs Adaptation — Verify bus termination and power feed
- HONEYWELL FC- → HONEYWELL FC-IOCHAS-0001R : Incompatible — Non-redundant vs redundant chassis
- HONEYWELL FC- → HONEYWELL CC-TCNT01 : Incompatible — CC-TCNT01 is a controller base, not an I/O chassis
- Bus Switchover: < 1 ms (Redundant failover)
- Hot Swap Insertion: < 500 ms (Module recognition)
