Product Core Brief
- Model: HIMA Z7138
- Brand: HIMA
- Series: H41q / HIMatrix Accessories
- Core Function: Provides field wiring interface and signal conditioning for digital output modules.
- Product Type: Digital Output Terminal Board
- Key Specs: 16 Channels | 24 V DC | Spring Clamp
- Condition: New Original (New Surplus)
Product Introduction
HIMA acts as the field wiring interface for H41q digital output modules. It converts backplane signals to field-level connections with integrated protection.
This terminal board supports up to 16 channels with spring-clamp terminals for reliable vibration resistance. Integrated flyback diodes protect against inductive load transients. Verify with OEM datasheet for exact current ratings per channel, though field practice often derates to 50% for longevity.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 16 Outputs |
| Nominal Voltage | 24 V DC |
| Max Current/Channel | 2 A (Resistive) |
| Terminal Type | Spring Clamp |
| Wire Range | 0.2 to 2.5 mm² |
| Protection | Flyback Diodes, Fuses |
| Compatibility | H41q DO Modules |
| Mounting | DIN Rail / Backplane |
| Isolation | Channel-to-Channel |
| Labeling | Integrated Marker Strips |

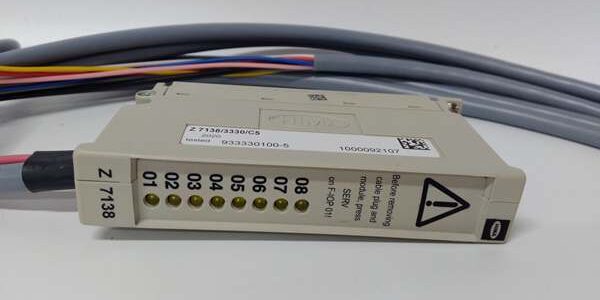

HIMA Z7138
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the bus termination resistor position on the third terminal block. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
HIMA Z7138
Compatibility Matrix & Benchmarks
- HIMA → HIMA : Direct — Identical replacement
- HIMA → HIMA -J : Direct — J-suffix denotes updated terminal block revision
- HIMA → HIMA Z7128 : Incompatible — Z7128 is for digital input modules
- HIMA → HIMA F3330 : Incompatible — F3330 is the active module, is passive wiring
- Channel Response: < 1 ms (Signal to terminal)
- Isolation Resistance: > 100 MΩ (Channel-to-backplane)
