Product Core Brief
- Model: P0916AG
- Brand: Foxboro (Invensys / Schneider Electric)
- Series: I/A Series Distributed Control System (DCS)
- Core Function: Serves as a compression terminal assembly (TA) providing secure field wiring connections for the FBM204 module.
- Product Type: Compression Terminal Assembly (TA) / Wiring Connector
- Key Specs: FBM204 Compatible | Compression Terminal | Part Number
- Condition: New Original (New Surplus) | Factory Sealed
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Compression Terminal Assembly (TA) |
| System Platform | Foxboro I/A Series DCS |
| Compatible FBM | FBM204 |
| Manufacturer Part Number | |
| Connection Type | Compression Terminal Block |
| Mounting | Mates with FBM204 Front Connector |
| Application | Field Wiring Interface for Analog I/O |
| Environmental Rating | Industrial Grade, High Precision |
| Condition | New Original (New Surplus) |
| Warranty | 1-Year Functional Warranty |

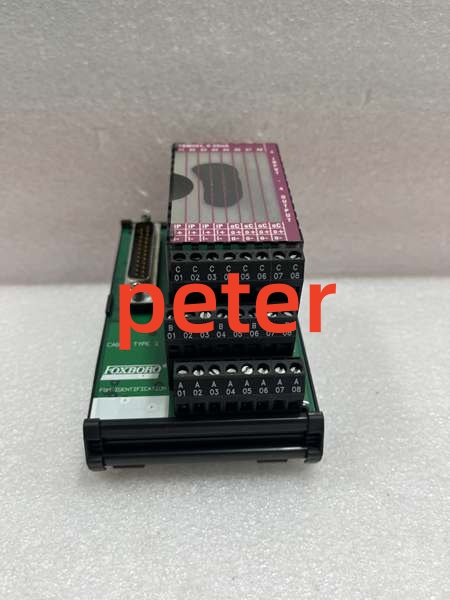

FOXBORO P0916AG
Product Introduction
Establishing reliable connections between field devices and your I/A Series control system requires precision-engineered wiring interfaces, and the is designed to deliver exactly that. Functioning as a compression terminal assembly, this component provides the critical physical interface for field wiring to connect securely to the module.
Engineered for high reliability and ease of maintenance, the ensures that field signals are transmitted accurately without intermittent connections caused by vibration or thermal cycling. Whether you are commissioning a new control panel or replacing damaged terminal blocks in an existing system, this compression terminal assembly guarantees a secure, long-lasting connection for your critical process control applications.
Key Selling Points & Differentiators
- Precision Compression Connection: Utilizes compression terminal technology to ensure gas-tight, vibration-resistant connections that eliminate the need for periodic retorquing.
- Designed specifically for use with the Foxboro module, ensuring perfect mechanical alignment and electrical continuity.
- Simplified Field Wiring: Provides a clean, organized interface for field cables, reducing wiring errors and speeding up commissioning and maintenance tasks.
- Verified Functionality: Every undergoes rigorous testing before shipping, complete with a signed test report.
- Not Recommended For: Do not use this terminal assembly with incompatible FBM modules; it is specifically designed for the . Verify your FBM model before ordering.
- Stock Availability: Current inventory is factory-sealed new surplus with traceable lot numbers; typically ships within 48 hours of order confirmation.
- Warranty Backed: Includes a 1-year functional warranty covering manufacturing defects and DOA conditions, with no restocking fees for verified failures.
FOXBORO P0916AG
FAQ
Yes. All units in stock have passed our quality inspection and include a signed test report. We ship same-day for orders placed before 2 PM EST, so you’ll have tracking before end of day.
The is specifically designed as the compression terminal assembly for the . Verify your FBM model number to ensure compatibility. Send us your FBM part number if you are unsure, and we’ll confirm within 30 minutes.
Do I need special tools to install this terminal assembly?
Yes. Compression terminal assemblies require a specific compression tool to ensure proper crimping and secure connections. Ensure you have the correct Foxboro compression tool before installation.
What if the terminal assembly fails within the warranty period?
We offer a no-questions-asked replacement for any verified manufacturing defect. Ship the failed unit back with your RMA number, and we’ll send a replacement within 24 hours of receipt.
Can this terminal handle high-vibration environments?
Yes. The uses compression terminal technology specifically designed to withstand industrial vibration without loosening, unlike traditional screw terminals that require periodic retorquing.
Is this a refurbished or new surplus unit?
This is New Original (New Surplus) – factory sealed, never installed, with full traceability to the original manufacturing lot. It is not refurbished, repaired, or pulled from a decommissioned system. We provide the original manufacturer’s lot code upon request for your quality records.
Quality Transparency SOP
- Incoming Verification: Source traceability confirmed via lot code; anti-counterfeit visual inspection; serial number cross-referenced with OEM records; accessories verified.
- Live Bench Test: Dedicated test bench; mechanical fit validation with ; compression terminal continuity test; insulation resistance verification; signed test report generated.
- Electrical Tests: Channel-to-channel continuity validated; ground continuity confirmed; contact resistance measured.
- Final QC & Packaging: QC sign-off; anti-static seal applied; shock protection installed; QC Passed label affixed with date and inspector ID.
Test photos and video available upon request. We never claim “100% failure-free” – we provide verified, tested units with documented performance.
Technical Risk Avoidance
- FBM Model Mismatch: Risk: Mechanical incompatibility. Prevention: Verify you are using this TA specifically with an module. Field Note: We’ve seen customers order the wrong TA because and FBM207 use different terminal assemblies. Always verify the FBM model.
- Improper Compression Tool: Risk: Poor connections, signal loss. Prevention: Use only the specified Foxboro compression tool. Field Note: Using an incorrect crimp tool caused intermittent signal failures that mimicked a bad FBM. Use the correct tool.
- Wire Size Mismatch: Risk: Loose or damaged connections. Prevention: Verify field wire gauge matches the terminal assembly specifications. Field Note: Oversized wires damaged the compression terminals during installation. Check wire size first.
- Missing Locking Mechanism: Risk: TA dislodged during vibration. Prevention: Ensure the TA is fully seated and locked onto the FBM. Field Note: A partially locked TA fell off during plant vibration. Push firmly until the latch clicks.
- ESD Damage: Risk: Damage to FBM during TA installation. Prevention: Use grounded wrist strap when handling FBM and TA. Field Note: Static discharge during TA installation damaged the FBM input circuits. Handle with care.
