Product Core Brief
- Model: KJ4001X1-BE1
- Brand: EMERSON (DELTAV)
- Series: DeltaV Distributed Control System (DCS)
- Core Function: Provides a local I/O interface with 8 digital channels for connecting field sensors and actuators to the DeltaV system.
- Product Type: Local I/O Interface / Digital I/O Carrier
- Key Specs: 8 Digital I/O | 12P0818X072 | Hot-Swappable | IP30
- Condition: New Original (New Surplus)
Product Introduction
EMERSON is a critical local I/O interface module for the DeltaV DCS, serving as the primary bridge between the control system and field devices. It provides 8 configurable digital I/O channels (supporting single-ended or differential configurations) to reliably acquire signals from sensors and send commands to actuators.
Designed for harsh industrial environments, this module features robust electrical isolation, integrated shielding to minimize EMI, and hot-swappable capability for maintenance without system downtime. Its modular design and clear terminal labeling ensure simplified wiring and commissioning in applications ranging from power generation to pharmaceutical manufacturing.

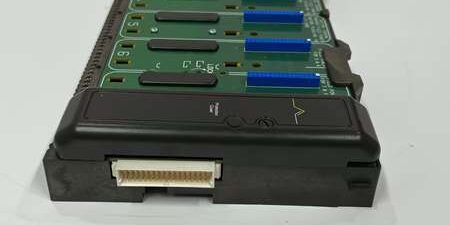

EMERSON KJ4001X1-BE1
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Local I/O Interface / Digital I/O Carrier |
| Part Number | |
| Alternate Part Number | 12P0818X072 |
| Channel Count | 8 Digital I/O (Single-ended or Differential) |
| Input Voltage | 24 V DC (Some models support 5 V DC) |
| Output Current | 2 A per channel |
| Local Bus Power | 12 V DC @ 15 A |
| Typical Power Consumption | 8 W |
| Operating Temperature | -40 °C to +85 °C |
| Protection Rating | IP30 |
| Certifications | CE, UL, FM, ATEX II 3G Ex ec IIC Gc |
| Compliance | IEC 61784-2 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, bent pins, or corrosion on the shield bar and terminals.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability under simulated process conditions.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity and channel isolation are strictly checked.
- Signal Integrity Test: We verify the functionality of all 8 channels in both single-ended and differential modes, confirming correct logic levels and switching response.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
Replacement Pitfall Guide
❗ Hot-Swap Safety: While the module supports hot-swapping, never insert or remove it while the system is powered if the local bus power is not properly managed. Always follow DeltaV hot-swap procedures to prevent backplane damage.
❗ Carrier vs. Module Confusion: The is the carrier board. Ensure you are not confusing it with the electronic I/O module that plugs into it. Verify the complete assembly part number.
❗ Wiring Configuration: This module supports both single-ended (8 channels) and differential (4 channels) wiring. Incorrect jumper settings or wiring will result in faulty readings. Always configure the channel type in DeltaV Explorer to match your physical wiring.
❗ Shield Bar Integrity: The integrated shield bar on the back of the module is critical for EMI suppression. Ensure it is fully seated and making contact with the rack ground during installation.
❗ ESD Damage: Use an anti-static mat and wrist strap during installation. The digital I/O circuits are highly sensitive to electrostatic discharge.
Keep these in mind and you’ll cut 90% of rework time.

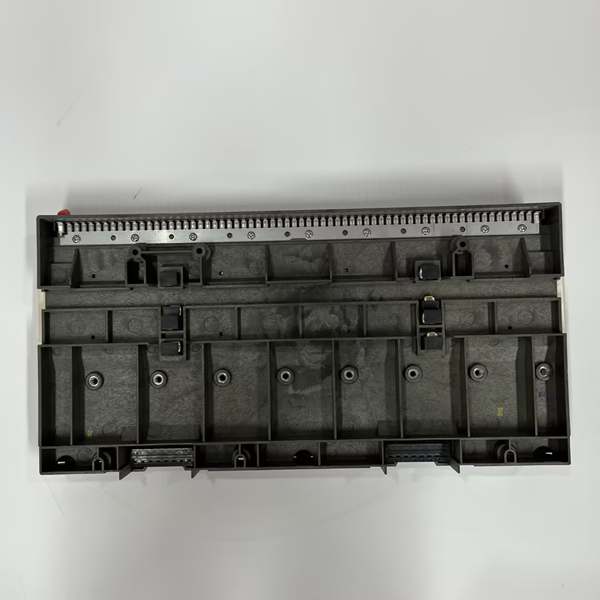

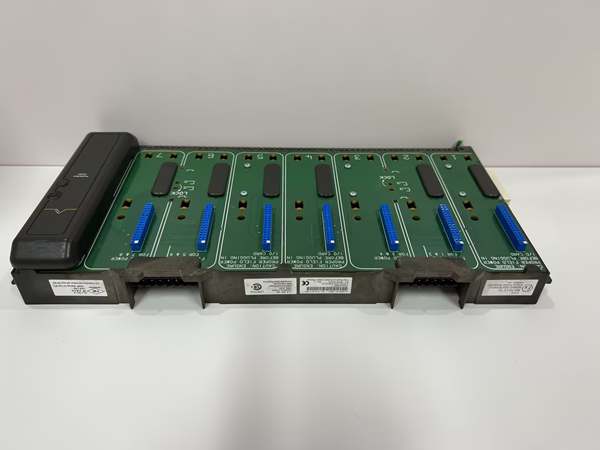

EMERSON KJ4001X1-BE1
Compatibility Matrix & Benchmarks
- → 12P0818X072 : Direct — Exact Alternate Part Number
- → DeltaV Digital I/O Module : Companion — Requires compatible electronic I/O card (e.g., KJ3002X1 series)
- → DeltaV Series 1/2 Rack : Companion — Verify rack series compatibility before installation
- Signal Response: < 1 ms (Digital I/O switching)
- Isolation: Channel-to-channel and channel-to-backplane isolation
Need the matching DeltaV digital I/O electronic module or verifying your rack series compatibility? I can confirm the exact wiring configuration and jumper settings for your DeltaV application.
