Product Core Brief
- Model: KJ3001X1-CB1
- Brand: EMERSON (DELTAV)
- Series: DeltaV Distributed Control System (DCS)
- Core Function: Provides analog output signals for precise process control and actuator positioning.
- Product Type: Analog Output (AO) Module
- Key Specs: 12P1985X062 | 220V Work Voltage | White Housing
- Condition: New Original (New Surplus)
Product Introduction
EMERSON is a specialized analog output module designed for the DeltaV Distributed Control System. It serves as a critical interface, converting digital control commands from the DCS into precise analog signals to drive final control elements like valves, dampers, and variable frequency drives.
Identified by the alternate part number 12P1985X062, this module is engineered for reliability in demanding industrial environments such as power generation, petrochemical processing, and manufacturing. Its design ensures accurate signal conditioning and fast response times for critical control loops, maintaining process stability and efficiency.

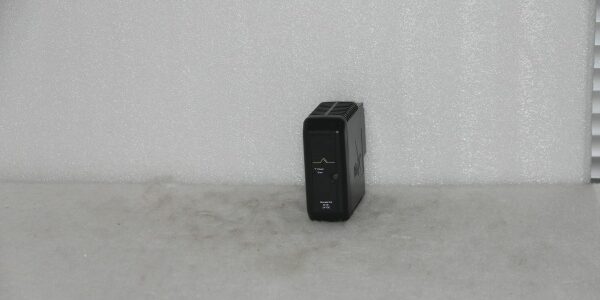

EMERSON KJ3001X1-CB1
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Analog Output (AO) Module |
| Part Number | |
| Alternate Part Number | 12P1985X062 |
| System Compatibility | Emerson DeltaV DCS |
| Work Voltage | 220V |
| Typical Application | Process Control, Valve Actuation |
| Housing Color | White |
| Origin | United States |
| Compliance | DeltaV DCS Standard |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage, cracked housings, or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability under simulated process conditions.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity and output signal accuracy are also strictly checked.
- Signal Calibration Test: We verify the analog output linearity and scaling across the full range (e.g., 4-20 mA) to ensure precise control signal delivery.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
Replacement Pitfall Guide
❗ Exact Part Number Match: The has specific revisions (e.g., -CA1, -CB1, -BC1). Always verify the complete part number, including the suffix, to guarantee mechanical and electrical compatibility with your existing DeltaV I/O carrier.
❗ Carrier Board Compatibility: Ensure this module is installed in the correct DeltaV I/O carrier (e.g., KJ4001X1 series). Mismatched carriers can cause communication failures or prevent the module from being recognized by the controller.
❗ Signal Scaling Configuration: Analog output modules require precise scaling configuration in the DeltaV control strategy. Incorrect scaling will result in valves or dampers moving to the wrong position, potentially causing process upsets.
❗ Power Supply Requirements: Verify that the I/O carrier provides adequate power for this AO module. Overloading the carrier’s power supply can cause erratic output behavior or module failure.
❗ ESD Damage: Use an anti-static mat and wrist strap during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.
EMERSON KJ3001X1-CB1
Compatibility Matrix & Benchmarks
- → KJ3001X1-CA1 : Needs Adaptation — Verify revision compatibility with DeltaV system
- → KJ3001X1-BC1 : Needs Adaptation — Verify revision compatibility with DeltaV system
- → KJ4001X1-NA1 : Companion — Requires Compatible DeltaV I/O Carrier
- → 12P1985X062 : Direct — Exact Alternate Part Number
- Signal Accuracy: High-precision analog output (typical DeltaV specification)
- Response Time: Fast response for continuous process control
Need the matching DeltaV I/O carrier or verifying your system’s control strategy scaling? I can confirm the exact carrier compatibility and signal configuration requirements for your process control application.
