Product Core Brief
- Model: KJ3001X1-CA1
- Brand: Emerson (DeltaV)
- Series: DeltaV Distributed Control System (DCS)
- Core Function: Acquires 32 channels of discrete (digital) status signals from field devices using dry contact inputs.
- Product Type: Discrete Input (DI) Electronic Module
- Key Specs: 32 Channels | 24 VDC | Dry Contact | High Density
- Condition: New Original / New Surplus

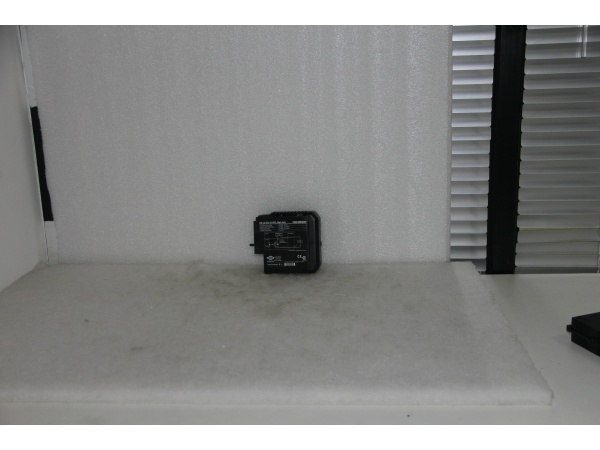

EMERSON KJ3001X1-CB1
Product Introduction
The EMERSON is a high-density discrete input module designed for the Emerson DeltaV Distributed Control System. It serves as a critical interface for monitoring the open/closed status of field devices such as limit switches, pressure switches, relay contacts, and valve positioners.
This module features 32 independent channels operating at 24 VDC with dry contact inputs, maximizing I/O density within the DeltaV I/O chassis. It is engineered for reliable signal acquisition in demanding industrial environments, providing real-time status feedback for process monitoring, interlock logic, and sequence control in power generation, oil & gas, and chemical processing facilities.
Key Technical Specifications
- Module Type: Discrete Input (DI) Electronic Module
- System: Emerson DeltaV DCS
- Channels: 32 Independent Input Channels
- Input Signal: 24 VDC Dry Contact
- Design: High-Density, Plug-in Module
- Mounting: DeltaV I/O Chassis
- Application: Limit switch monitoring, valve status, interlock logic, sequence control
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify part number . Inspect the rear Euro-connector pins for bending, corrosion, or missing pins.
- Visual Inspection: Check the front panel and PCB for physical damage. Ensure the module is clean, free from flux residue, and shows no signs of overheating.
- Live Functional Test: Install in a DeltaV I/O chassis. Verify the module is recognized by the controller and the “OK” LED illuminates.
- Signal Path Test: Short each input channel to its common return terminal. Use DeltaV configuration software to verify accurate status transitions for all 32 channels.
- Final QC & Packaging: Seal in an anti-static bag. Apply a QC Passed label with the date.

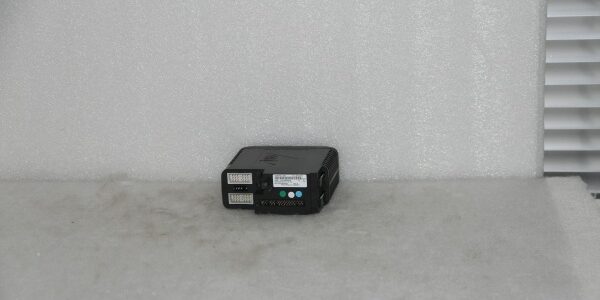

EMERSON KJ3001X1-CB1
Replacement Pitfall Guide
❗ Input Type Verification: This module is specifically for 24 VDC Dry Contact inputs. Do not connect voltage sources or wetted contacts directly to this module. Verify your field device output matches this specification.
❗ Channel Configuration: Verify the channel assignment in the DeltaV configuration database. Moving a DI module to a different slot without updating the software configuration will result in reading incorrect discrete statuses.
❗ Wiring Integrity: When replacing, inspect the field cable ends. Damaged or corroded wire ends can cause high resistance or intermittent faults even with a new module. Re-crimp if necessary.
❗ Hot-Swapping: While DeltaV modules support hot-swapping, always verify that the specific input channels are not tied to critical safety interlocks or emergency trip logic before removal to prevent unintended process upsets.
❗ Base Compatibility: Ensure the module is installed in a compatible DeltaV I/O base (e.g., KJ4001X1-CJ1 series). Incorrect base pairing can prevent proper communication or power delivery.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- → KJ4001X1-CJ1 : Complementary — DeltaV I/O Base typically used with this module
- → KJ3001X1-BA1 : Related — 8-Channel 24 VDC Isolated DI variant (lower density)
- → DeltaV DPU : System — Controlled by DeltaV Controller via the I/O bus
Benchmarks:
- Channel Density: 32 discrete inputs per module
- Signal Type: 24 VDC Dry Contact
- Diagnostics: Real-time channel status monitoring via DeltaV software
Need me to pull up the matching KJ4001X1-CJ1 I/O Base or the 8-Channel KJ3001X1-BA1 variant for your application? Let me know which one you’d like.
