Product Core Brief
- Model: 140734‑01
- Brand: BENTLY
- Series: 3500 Machinery Protection System
- Core Function: Processes eddy‑current proximity probe signals for radial vibration, thrust position, differential expansion, and eccentricity with programmable alarm thresholds.
- Product Type: 3500/40M 4‑Channel Proximitor Monitor Module
- Key Specs: 4 probe input channels | Pair‑wise channel configuration | API‑670 compliant ⚠️ EOL — limited stock remaining

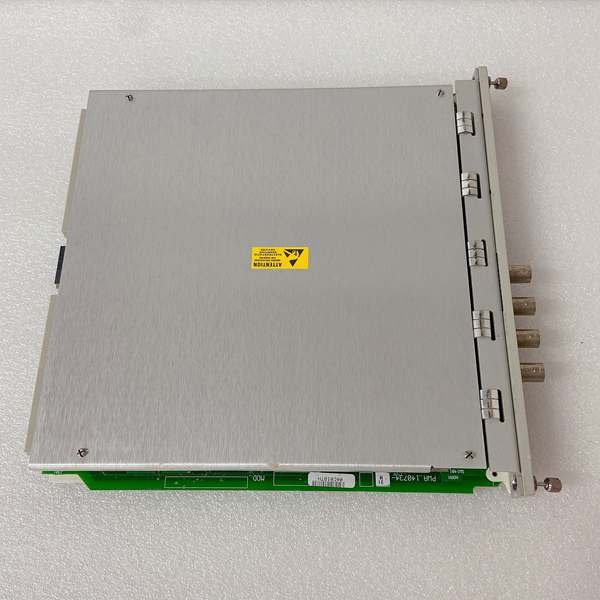

BENTLY 140734‑01
Product Introduction
BENTLY 140734‑01 slots into a 3500 rack to read proximity probe signals from rotating machinery. It generates alert and danger alarms to protect turbines, compressors, and high‑speed pumps from bearing‑related damage.
Unlike single‑function monitor cards, this unit pairs channels for mixed‑mode assignments. It delivers ±0.33 % full‑scale measurement accuracy across active inputs —though your mileage may vary with long, unbalanced extension cable runs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 4 proximity‑probe input channels, configured in channel pairs |
| Supported Measurements | Radial vibration, thrust position, differential expansion, eccentricity, REBAM |
| Measurement Accuracy | ±0.33 % full‑scale (max ±1 % FS) |
| Supported Sensitivity | 100 mV/mil, 200 mV/mil probe settings |
| Frequency Response | 0.1‑5 kHz for vibration; DC‑100 Hz for position |
| Operating Ambient Temperature | ‑30 °C to +65 °C |
| Power Draw | 7.5 W maximum, sourced from 3500 rack backplane |
| Hot‑Swap Support | Yes (3500 rack compliant) |
| Compliance | API 670 machinery‑protection standard |
| Physical Weight | 0.91 kg |
| Country of Origin | United States |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Source traceability, serial number anti‑counterfeit check, visual inspection (no corrosion/scratches). Check edge connector pins for bending or wear.
- Live Functional Test: Power‑on self‑check, backplane comms handshake, continuous load run >24 hrs with temp logging. Capture LED status snapshots every two hours.
- Electrical Parameter Test: Insulation resistance (500 V Megger, >10 MΩ), ground continuity. Flag any resistance drift below threshold.
- Firmware Verification: Read/record firmware version, photograph DIP switch/jumper settings. Well, technically it supports REBAM mode, but only on firmware v5.1+.
- Final QC & Packaging: Anti‑static bag seal, QC Passed label with date. Matching terminal hardware bagged alongside the unit.
Replacement Pitfall Guide
❗ Firmware Mismatch: The unit will lock mixed‑pair measurement modes if host rack firmware falls below minimum revision. Older releases restrict all channels to identical measurement tasks.❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Pay close attention to probe sensitivity jumpers on the second terminal block.❗ Terminal / Cable Incompatibility: Pin definitions shift across part revisions. Cross‑reference wiring drawings before connecting shield grounds for proximity probe loops.❗ Power Supply Mismatch: Recalculate total rack power with 20% headroom. Adding this module can push marginal power supplies over their continuous rating.❗ ESD Damage: Use anti‑static mat; caution in dry environments. Static discharge can degrade probe excitation circuitry with no visible physical damage.
Keep these in mind and you’ll cut 90% of rework time.

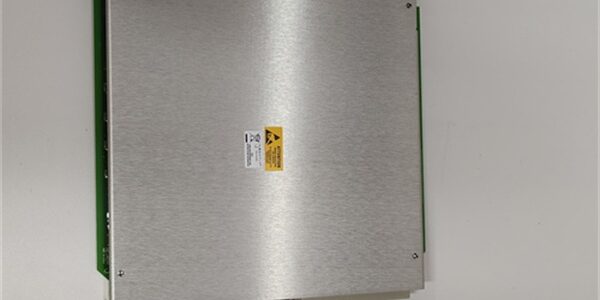

BENTLY 140734‑01
Compatibility Matrix & Benchmarks
- Scan cycle: 12 ms (simulated load, 4 active proximity‑probe input channels)
- Comms throughput: Backplane bus 384 kbps (proprietary 3500 rack bus)
