Product Core Brief
- Model: 140471‑01
- Brand: BENTLY
- Series: 3500 Machinery Protection System
- Core Function: Conditions proximity and seismic sensor signals for vibration, thrust, and eccentricity measurements with user‑configured alarm thresholds.
- Product Type: 3500/42M Proximitor Seismic I/O Module, internal termination
- Key Specs: 4 input channels | API‑670 compliant | Internal screw terminals ⚠️ EOL — limited stock remaining

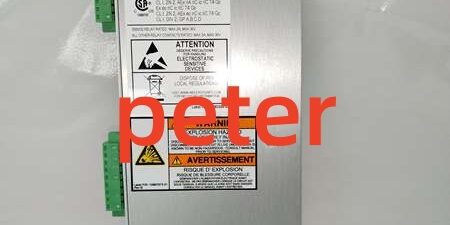

BENTLY 136294‑01
Product Introduction
BENTLY 140471‑01 fits into 3500 rack slots to process signals from proximity probes and seismic velocity transducers. It delivers alert and danger alarms for turbines, compressors, and other high‑speed rotating assets.
Compared to external‑termination variants, this unit eliminates separate terminal assemblies. It holds ±0.13 % full‑scale measurement accuracy across active channels —though your mileage may vary when using long, unshielded sensor cabling.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 4 configurable input channels |
| Supported Sensors | Proximity probes, seismic velocity / acceleration transducers |
| Measurement Types | Radial vibration, thrust position, differential expansion, eccentricity, REBAM |
| Accuracy | ±0.13 % full‑scale |
| Termination | Internal screw‑type terminal blocks |
| Operating Ambient Temperature | ‑40 °C to +70 °C |
| Power Source | 3500 rack backplane |
| Hot‑Swap Support | Yes (3500 rack compliant) |
| Compliance | API 670 machinery protection standard |
| Physical Weight | 0.41 kg |
| Country of Origin | United States |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Source traceability, serial number anti‑counterfeit check, visual inspection (no corrosion/scratches). Check edge connector pins for bending or wear.
- Live Functional Test: Power‑on self‑check, backplane comms handshake, continuous load run >24 hrs with temp logging. Capture LED status snapshots every two hours.
- Electrical Parameter Test: Insulation resistance (500 V Megger, >10 MΩ), ground continuity. Flag any resistance drift below threshold.
- Firmware Verification: Read/record firmware version, photograph DIP switch/jumper settings. Well, technically it supports REBAM measurement mode, but only on firmware v5.5+.
- Final QC & Packaging: Anti‑static bag seal, QC Passed label with date. Matching terminal hardware bagged alongside the unit.
Replacement Pitfall Guide
❗ Firmware Mismatch: The unit will lock out specialized measurement modes if host rack firmware falls below minimum revision. Older releases restrict channel configuration to basic vibration only.❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Pay close attention to sensor input jumpers on the third terminal block.❗ Terminal / Cable Incompatibility: Pin definitions shift across part revisions. Cross‑reference wiring drawings before connecting shield grounds for probe loops.❗ Power Supply Mismatch: Recalculate total rack power with 20% headroom. Adding this module can push marginal power supplies over their continuous rating.❗ ESD Damage: Use anti‑static mat; caution in dry environments. Static discharge can degrade probe‑excitation circuitry with no visible physical damage.
Keep these in mind and you’ll cut 90% of rework time.
BENTLY 136294‑01
Compatibility Matrix & Benchmarks
- Scan cycle: 11 ms (simulated load, 4 active vibration input channels)
- Comms throughput: Backplane bus 384 kbps (proprietary 3500 rack bus)
