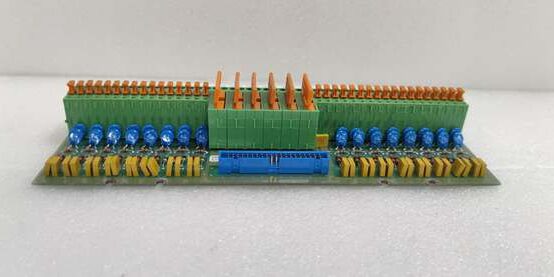

Product Core Brief
- Model: DSTA131 (57120001-CV)
- Brand: ABB
- Series: S800 I/O Advant Master DCS Termination Units
- Core Function: Provides field wiring termination, precision shunt resistors, and fuse protection for DSAI130 series 16-channel analog input boardsABB Group.
- Product Type: Analog Input Connection / Terminal Base Unit
- Key Specs: 16 differential signal channels | 0.1% precision shunt | 1 A field circuit fuses Condition: New Original (New Surplus)
Product Introduction
The ABB is a dedicated termination base engineered exclusively to pair with ABB DSAI130 12-bit analog input modules in S800 DCS racksABB Group. It routes sensor current/voltage signals while adding built-in circuit protection.Well, technically it shares DIN rail mounting with DSTK series cable adapters, yet the ABB integrates factory-calibrated 0.1% shunt resistors missing from generic terminal blocks. Its dielectric withstand rating reaches 4 kV AC to isolate low-level analog signals from noisy field wiring.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Part Code | , 57120001-CV |
| Compatible Core Module | DSAI130, DSAI130K18, DSAI130DK01 16-ch analog input boards |
| Supported Signal Types | ±10 V voltage, 4–20 mA differential current signals |
| Precision Shunt Accuracy | 0.1% tolerance for mA signal conversion |
| Field Circuit Protection | Replaceable 1 A mini fuses (3BSC770001R14) per channel groupABB Group |
| Dielectric Strength | 4 kV AC, 50 Hz one-minute withstand test |
| Rated Insulation Voltage | 750 V AC/DC between field and rack bus circuits |
| Operating Ambient Temp | -20 °C to +60 °C cabinet mounted |
| Storage Temperature Range | -40 °C to +85 °C non-operating |
| Terminal Wire Gauge Max | 2.5 mm² solid copper field cable |
| Unit Net Weight | 0.36 kg fully assembled |
| Physical Mount Format | Standard S800 I/O backplane base slot |
| Enclosure Protection Class | IP20 for cabinet interior installation |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match unit serial codes to ABB S800 termination unit batch logs to reject counterfeit assemblies. Visual inspection checks for cracked terminal housings, corroded gold contact pins, or loose shunt resistor solder joints (—minor plastic molding flash passes QA standards).
- Live Functional Test: Mate the unit to a calibrated DSAI130 analog input card on an test backplane, supply regulated 24 V rack power, and complete ModuleBus handshake with an AC800M controller. Run a 24-hour continuous analog signal injection test with hourly voltage drift logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate cross-circuit insulation resistance; all signal paths must register above 10 MΩ. Confirm rack protective earth continuity via Fluke 115 multimeter across the chassis ground terminal.
- Firmware Verification: The base carries no onboard firmware; verify DSAI130 paired card firmware revision through Advant Engineering Workbench, photograph factory fuse placement for field replacement reference.
- Final QC & Packaging: Remove installed test fuses and re-seat new OEM spare fuses, cap unused terminal openings with plastic dust plugs, seal the unit inside anti-static shielding bag, and attach a dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: Legacy AC800M controllers running firmware v4.4 or older cannot correctly scale shunt-converted mA signals when paired with newer ABB hardware. Upgrade controller runtime or source matching vintage input boards.
- DIP Switch / Jumper Misconfiguration: The has no onboard DIP switches, but paired card jumpers set single/differential mode; misconfigured jumpers create full-scale signal offset errors exceeding 2%.
- Terminal / Cable Incompatibility: Field terminal pin mapping differs between ABB and DSTK generic cable adapters. Route all analog shield drain wires to the rack master earth bar, not local terminal ground lugs.
- Power Supply Mismatch: Sum total backplane draw of all analog module assemblies and add 20% power headroom to the rack 24 V PSU. Undervoltage supply widens shunt measurement error past acceptable 0.2% process tolerance.
- ESD Damage: Static discharge risk spikes heavily at plant humidity below 30%. Rest the unit on an anti-static mat during card swaps; bare contact with shunt resistor traces permanently shifts analog measurement calibration.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → : Direct — Exact pinout, shunt circuit, and fuse layout drop-in replacement
- → DSTK150 : Needs Adaptation — No integrated precision shunts, external signal conditioning wiring required
- → DSPC174 : Incompatible — DSP processor board cannot mate with analog termination base footprints
- → DSSR122 : Incompatible — Relay output terminal block lacks analog signal shunt hardware
Benchmarks
- Analog signal conversion error: 0.1% (4–20 mA full scale load)
- ModuleBus scan cycle: 0.4 ms (16 active differential analog input channels)
