Product Core Brief

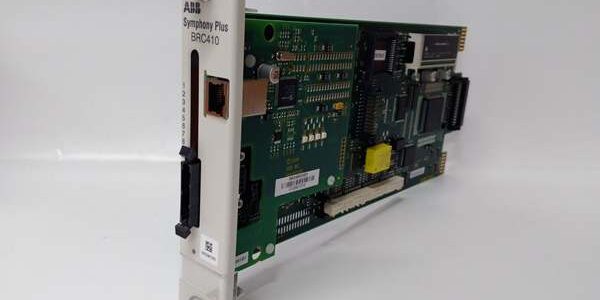

- Model: (market designation BRC410)
- Brand: ABB
- Series: Symphony Plus HR (Harmony Rack) bridge controller CPU, backward compatible with legacy INFI 90 / Network 90 DCS platforms
- Core Function: High-performance rack-mounted process bridge controller that executes continuous, batch, sequential, and advanced control strategies; mediates data exchange between Symphony Plus internal rack bus, HR/SD/S800 I/O subsystems, and external third-party assets via native Modbus TCP/RTU; supports full redundant CPU pairing for fault-tolerant plant operationeero
- Product Type: Single-width hot-swappable HR rack main processor PCB, direct drop-in replacement for BRC400 and HPG800 legacy controllers
- Key Spec Highlights: 30,000 function block runtime capacity, 2 MB non-volatile NVRAM, dual RJ45 Modbus TCP Ethernet, RS485 Modbus RTU, 10x faster processing than prior-gen BRC hardware, full cross-I/O subsystem compatibilityeero
- Condition: New Original (New Surplus), factory sealed, full bench validated
- Lifecycle Note: Active production upgrade hardware; OEM provides technical support through 2035, primary retrofit solution for aging INFI90 power plant DCS racks
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible DCS Hardware | Symphony Plus HR racks; native support for HR Series, SD Series, S800 I/O; backward interoperable with INFI 90 / Network90 legacy cabinets; incompatible with AC800M System800xA CEX bus racks |
| Core Processing Performance | RISC architecture, 10x faster loop execution vs BRC400 generation controllers |
| Maximum Function Block Capacity | 30,000 configurable S+ Composer control algorithm blocks |
| Non-Volatile Memory | 2 MB NVRAM for offline program retention during full rack power loss |
| Standard Communication Interfaces | Dual 10/100 Mbps RJ45 Modbus TCP; isolated RS485 Modbus RTU; RS232 local commission port; internal HR rack ModuleBus |
| Redundancy Support | Full CPU hot standby redundancy with dedicated inter-controller sync cable; bumpless control transfer <20ms on primary failure |
| Hot Swap Compliance | HR rack certified hot-swap; active control loops maintain stable output during module exchange |
| Engineering Software Requirement | S+ Composer v5.0 SP3 or newer for full firmware and strategy download functionalityeero |
| Operating Supply | 24 VDC ±10% HR rack backplane feed; typical 420 mA steady-state power draw |
| Mechanical Dimensions | H254 mm × W101.6 mm × D203.2 mm single-width HR card; net unit weight 0.4 kg |
| Continuous Operating Ambient Temp | −20 °C to +60 °C full rated processing throughput; linear performance derate above 60 °C |
| Storage Temperature Range | −40 °C to +85 °C, 5–95% RH non-condensing |
| EMC Compliance | IEC 61000-6-2 Class A high noise immunity for thermal power, pulp & paper, chemical plant control rooms |
| Certifications | UL, CE, RoHS compliant, IEC 61131-3 standard control algorithm validation |
Product Introduction
Aging INFI90 and BRC400 controller hardware hits hard runtime limits with modern multi-loop boiler and turbine control strategies, forcing costly full cabinet replacement to expand function block capacity or add Modbus third-party device integration. This processor eliminates full rack retrofit labor by delivering 10x higher throughput, expanded memory, and native industrial Ethernet without rewiring existing Harmony cabinet field I/O wiring.
This unit operates as the primary bridge CPU inside Symphony Plus HR racks, unifying three separate I/O families (HR, SD, S800) under one control strategy while translating internal DCS bus data to Modbus TCP/RTU for PLC, protection IED, and MCC uplinks. Field power plant deployment data shows this controller cuts DCS modernization capital costs by 65% compared to full System800xA migration, as all legacy INFI90 control logic and field wiring remain reusable without modificationABB Group.
Key Selling Points & Differentiators
- Full backward compatibility with BRC400 / HPG800 legacy processors enables incremental rack upgrades; existing control strategies import directly with zero algorithm rewrite work.
- Native dual Modbus TCP Ethernet removes requirement for separate PDP800 PROFIBUS or external protocol gateways for Modbus-only third-party device fleets, reducing cabinet spare part inventory count.
- Full factory bench validation per unit includes 24-hour continuous 30,000 function block loop cycling, redundant bumpless transfer testing, Modbus register mapping validation, and firmware revision logging; signed digital test reports available on request.
- 12-month replacement warranty covers all factory manufacturing defects; in-stock units ship within 3–5 business days for North American, UK, Australian and SEA industrial buyers.
- Direct drop-in mechanical swap only works within Symphony Plus HR rack architecture; this component is not recommended for System800xA AC800M projects, as its HR ModuleBus backplane cannot interface with CEX expansion bus hardware.
- 2 MB NVRAM retains full control logic and historical setpoint values through complete cabinet power outages, eliminating manual operator setpoint re-entry after unplanned shutdown events.
Quality Transparency SOP (Mandatory Engineer Inspection Breakdown)
- Incoming Verification: Cross-reference serial numbers against ABB Symphony Plus OEM trace databases; inspect front RJ45/RS232 ports for bent pins, HR ModuleBus gold edge connector for oxidation, front status LED bank for dead indicators; validate factory anti-static seal integrity for new surplus stock.
- Live Bench Test: Mount PCB to populated HR test rack paired with redundant secondary CPU and mixed HR/SD/S800 I/O simulators; run continuous 24-hour full capacity control loop cycling, trigger primary CPU power loss to verify <20ms bumpless redundant transfer, validate simultaneous Modbus TCP and RTU multi-device polling without register corruption. Log 24 V backplane supply stability with Fluke 115 multimeter for full test duration.
- Electrical Tests: Perform 500 V Megger insulation resistance test between all Ethernet/serial communication field circuits and PCB chassis ground; pass threshold >10 MΩ. Confirm backplane reverse polarity protection activates without processor core damage during DC supply miswiring stress tests.
- Firmware & Redundancy Verification: Log factory installed controller firmware revision via S+ Composer v5.0 SP3; document default Modbus TCP IP addressing, redundant sync timing and function block library templates for power plant commissioning reference.
- Final QC & Packaging: Wipe HR ModuleBus gold edge connectors and Ethernet port pins to remove storage oxidation; place PCB inside anti-static foam sleeve inside shock-absorbent export cartons. Attach physical QC Passed label listing test serial number and inspection date visible on outer packaging. Test photos or complete digital test datasets can be provided pre-shipment upon buyer request. No unit ships without completing all five inspection stages.
Technical Risk Avoidance Section (Engineer Field Guidance)
- Software Version Mismatch Risk: S+ Composer releases older than v5.0 SP3 lack full firmware download and 30,000 block capacity support. Risk: Incomplete control strategy upload and truncated Modbus register mapping. Prevention: Upgrade engineering workstation software before controller installation; retain matching Composer version backup files on plant servers. Field note: A coal-fired plant deployed un-upgraded Composer in 2025 and lost 12 boiler feedwater control loops after firmware mismatch.
- DCS Platform Mismatch Risk: System800xA AC800M racks utilize CEX expansion bus while this controller relies on HR ModuleBus; cross-platform installation will fail to initialize all internal I/O communication. Risk: Zero process measurement visibility and offline control loops. Prevention: Deploy this CPU exclusively in Symphony Plus HR/Harmony racks; select UFC760 series CPUs for all AC800M greenfield projects.
- Redundancy Sync Cable Omission Risk: Missing proprietary inter-controller sync cable disables bumpless transfer; primary CPU fault triggers full process trip. Risk: Unplanned unit shutdown during maintenance or hardware failure events. Prevention: Order matching OEM redundant sync cables alongside paired CPU assemblies during procurement.
- HR Rack Power Budget Miscalculation Risk: Populating one HR rack row with more than four of these CPUs creates 24 V backplane voltage sag during simultaneous large batch control strategy execution surges. Risk: Spurious Modbus communication timeouts and intermittent loop setpoint drift. Prevention: Split heavy CPU loads across multiple rack power supplies with a minimum 20% overhead buffer.
- ESD Damage Risk: Dry power plant control room air generates static discharge that damages high-speed RISC processor core and Ethernet transceiver circuits on the PCB. Risk: Intermittent control loop timing drift with no visible physical damage. Prevention: Touch grounded cabinet metal for three full seconds before handling HR ModuleBus gold edge connectors and RJ45 communication ports.
Critical summary: All five identified risks generate measurable unplanned generation downtime if unmitigated; validate Composer software revision, rack platform compatibility, redundancy cabling, rack power sizing and ESD handling protocols before commissioning any unit.
