Component Snapshot At-a-Glance

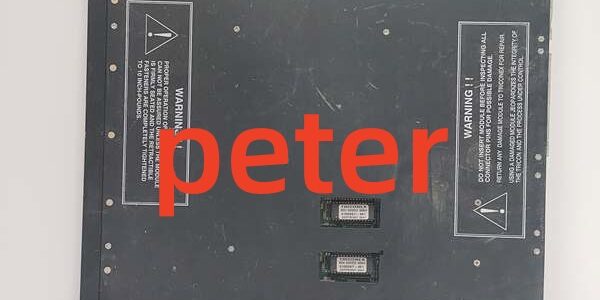

• Model: Triconex 5351 TriPak analog input module; coated harsh environment variant 5351C
• Alt. P/N: 5352 (RTD/TC dedicated AI card, non-interchangeable drop-in)
• Product Series: Triconex Trident TMR SIL3 Safety Instrumented System
• Hardware Type: Hot-swappable triple redundant 4-channel analog input rack card
• Key Feature: 4 fully triplicated 4–20mA/0–10V input channels, hardware 2oo3 voting, per-channel wire break detection, 16-bit ADC resolution
• Primary Field Use: Capture SIL3 safety pressure, temperature, flow transmitter signals for ESD, depressurization and burner management logic in refinery, power, offshore SIS racks.

Hard-Numbers: Technical Specifications

• Protocol Support: Trident proprietary triplicated backplane bus; paired with 3008 main processor
• Port Count: 4 field analog input channel paths; triple isolated backplane edge connector; front per-channel status/fault LEDs
• Baud/Data Rate: Global chassis scan cycle 0.5ms; analog sample rate 100Hz per channel; millisecond SOE timestamping
• Operating Temperature: 0°C to +60°C standard 5351; 5351C rated -40°C to +70°C salt fog/oil mist enclosures
• Isolation Rating: 2500VAC opto-galvanic isolation between field wiring and three independent TMR slices
• Power Draw: Max 10W full channel load; rack baseplate supply 19.2–30VDC nominal 24V
• Input Electrical: Configurable 4–20mA current / 0–10VDC voltage; 250Ω internal loop resistor for current conversion; 0.1% full scale static accuracy
• Diagnostic Hardware: Per-channel wire break / short circuit monitoring, slice mismatch detection, continuous power-up self-test
• Safety Rating: IEC 61508 SIL3 TÜV certified; Class I Div 2 / ATEX Zone 2 non-incendive approval
• Physical: Standard Trident SmartSlot form factor; weight 0.98kg; fully hot-swappable live rack replacement

The Real-World Problem It Solves

Low-channel count TMR analog input cards force stacking multiple modules for large safety transmitter racks, adding dozens of vibration-prone wiring terminations that drift under compressor/turbine runtime. Mixed RTD and standard 4–20mA on one card creates signal offset errors without dedicated channel conditioning circuits.

• Where you’ll typically find it:
  • Refinery hydrocracker SIS racks monitoring high-pressure vessel safety pressure transmitters
  • Combined-cycle power plant burner management safety cabinets for furnace gas pressure and fuel flow analog loops
  • Offshore platform hazardous zone ESD control racks using 5351C coated hardware to resist salt fog and condensation corrosionFour high-density triplicated channels consolidate safety analog measurement hardware, per-channel wire break diagnostics expose broken field wiring before safety trip failure, and hot-swap capability lets technicians replace the card without full SIS rack shutdown.

Hardware Architecture & Under-the-Hood Logic

This card houses three fully independent lock-step signal processing slices on a single PCB; every analog sample read passes simultaneous evaluation and hardware 2-out-of-3 voting before value delivery to the Trident main processor.

1. Rack 24VDC baseplate power splits to three electrically isolated power rails, one dedicated to each TMR slice to eliminate cross-slice electrical noise crosstalk.
2. Each of the four field analog inputs feeds three parallel anti-aliasing filters and TVS surge suppression circuits before reaching matched 16-bit ADCs per slice.
3. Three identical ADC readings from one field channel feed onboard hardware comparator; 2oo3 voting discards single-slice outlier faulty measurements without dropping valid process values.
4. Continuous slice cross-check runs every scan cycle; any voltage/current mismatch between slices latches a module FAULT LED while voting logic remains active on two healthy slices.
5. Per-channel loop current sensing detects open transmitter wiring or shorted field cables; all fault events log millisecond SOE timestamps to flash memory for incident root-cause analysis.
6. 5351C full acrylic conformal coating seals ADCs, opto-isolators and PCB traces to block salt fog, oil mist, and humidity in unconditioned offshore/refinery control rooms.

Field Service Pitfalls: What Rookies Get Wrong

Double-End Grounding Transmitter Signal Shield Cables

New techs ground shield braid at both the FTA terminal block and remote field transmitter junction boxes. Ground loop AC noise skews 4–20mA current readings, generating constant false high/low safety pre-trips during VFD compressor cycling.

• Field Rule: Terminate cable shield only at the Trident SIS rack chassis ground bar; tape and fully isolate shield conductors at all remote instrument enclosures.

Substituting 5352 RTD Card In Place Of 5351 4–20mA Module

Rookies swap a spare 5352 RTD card into a slot wired for standard current transmitters. Mismatched internal signal conditioning creates severe measurement offset, triggering persistent slice discrepancy fault alarms and invalid safety trip calculations.

• Quick Fix: Match part number strictly: 5351 for 4–20mA/0–10V transmitters; 5352 reserved exclusively for RTD/thermocouple temperature loops.

Mismatched 5351 Firmware With 3008 Main Processor Post Hot-Swap

Rookies replace a faulty 5351 without flashing unified matching firmware to the rack main processor. Version incompatibility breaks triplicated backplane voting, lights steady module FAULT LED, and disables all safety analog measurement tags.

• Field Rule: Flash identical firmware revisions for 3008 CPU and all 5351/5352 I/O cards; run full channel injection test before returning SIS to automatic protection logic.
