Component Snapshot At-a-Glance

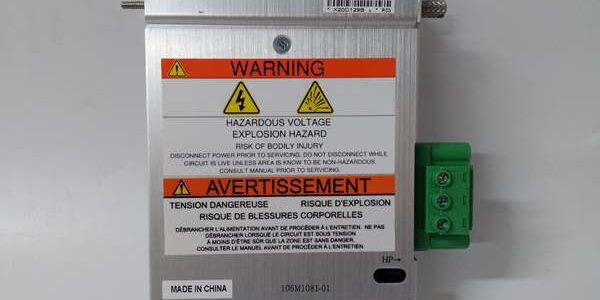

- Model: 106M1081-01
- Alt. P/N: 3500/15-05-05-00
- Product Series: Bently Nevada 3500 Machinery Protection System
- Hardware Type: Rack-mount universal AC power supply module
- Key Feature: 85–264V AC wide-range input; hot-swap capable
- Primary Field Use: Provides regulated 24VDC power to entire 3500 rack monitoring cards.
Hard-Numbers: Technical Specifications
- Input Voltage: 85–264V AC, 47–63Hz, 2.8A max
- Output: 24VDC, 7.5A continuous (180VA max)
- Efficiency: >85%
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Isolation Rating: 1500V AC (input-to-backplane)
- Protection: Overvoltage, overload, short-circuit, surge suppression
- Dimensions (W×H×D): 50.8mm × 120.7mm × 251.5mm
- Weight: ~0.9kg
- Mounting: 3500 rack leftmost slot, hot-swap enabled
The Real-World Problem It Solves
Field power fluctuations and dirty AC cause 3500 rack resets, false trips, and card damage. Unregulated power kills vibration monitoring uptime in turbines and compressors.
Where you’ll typically find it:
- Power plant steam/gas turbine 3500 monitoring racks
- Offshore oil & gas compressor machinery protection systems
- Refinery critical pump and fan vibration monitoring cabinets
This supply cleans and regulates AC to 24VDC, isolates noise, and lets you swap it live without tripping the rack.
Hardware Architecture & Under-the-Hood Logic
No onboard monitoring CPU; it’s a dedicated AC–DC converter with isolated front end and backplane DC distribution.
- Wide-range AC input passes through EMI filter and surge suppressors.
- Rectifier and PFC stage convert AC to regulated DC bus.
- DC–DC converter steps down to 24VDC with current limiting.
- Isolation barrier (1500V AC) separates input from rack backplane.
- Backplane distributes 24VDC to all I/O and monitor cards.
- Front-panel LED: ON = healthy; OFF/flashing = fault.
- Hot-swap logic maintains backplane voltage during replacement.
Field Service Pitfalls: What Rookies Get Wrong
Forgetting minimum load causes voltage driftTechs install it with too few cards in the rack. Underloaded, output drifts above 26VDC, damaging I/O and monitor cards.
- Field Rule: Maintain ≥30% load (≥2.25A); add dummy loads if rack is lightly populated.
Poor AC wiring and loose terminals cause overheatingRookies use 18AWG wire and torque terminals too low. High resistance creates heat, leading to intermittent shutdowns and burned terminals.
- Quick Fix: Use 14–16AWG stranded wire; torque terminals to 1.2Nm; avoid daisy-chaining AC feeds.
Ignoring rack ventilation leads to thermal shutdownCrowding the left slot with other hot modules blocks airflow. At >60°C, it shuts down to protect itself.
- Field Rule: Keep 25mm clearance left/right; no high-wattage supplies adjacent; clean filters quarterly.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
