Component Snapshot At-a-Glance

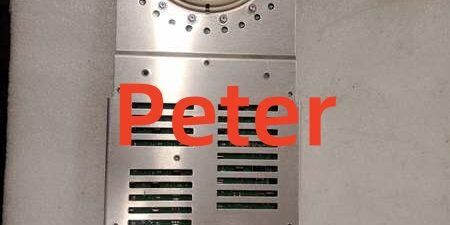

• Model: ABB 5SHY3545L0020
• Alt. P/N: 5SXE08-0166, 3BHE014105R0001
• Product Series: ABB 5SHY High-Power IGCT Family
• Hardware Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT)
• Key Feature: 4500V / 4000A RMS with sub-1.8V on-state voltage
• Primary Field Use: Medium-voltage grid stabilization, traction, and high-power drives.

Hard-Numbers: Technical Specifications

• Blocking Voltage: 4500V asymmetric (VCEO)
• Continuous Current: 4000A RMS, 4500A peak
• Operating Temperature: -40°C ambient, 150°C max junction
• Isolation Rating: 3000V AC (power-to-gate)
• Gate Interface: Fiber-optic trigger, integrated gate drive
• Max Switching Frequency: 10kHz (derated at full current)
• On-State Voltage: <1.8V @ 4000A
• Cooling: Liquid-cooled base (water/glycol)
• Dimensions: 100×75×40mm
• Weight: 1.5kg
• Protection: Overcurrent, overvoltage, overtemperature (<5ms response)

The Real-World Problem It Solves

Standard IGBTs lack the current density and ruggedness for 3–10MW continuous operation. Conventional thyristors need bulky commutation circuits and run slow.

Where you’ll typically find it:

• Static Var Compensators (SVC) and STATCOMs in utility substations
• Railway traction converters (metro/high-speed rail)
• Medium-voltage ACS6000 drives for mining conveyors and ball mills

This IGCT drops external commutation hardware and cuts conduction losses by 30% vs. IGBTs at high current.

Hardware Architecture & Under-the-Hood Logic

Housed in a sealed press-pack with direct liquid cooling; integrates main IGCT, freewheeling diode, and gate drive. Optical isolation eliminates ground loops.

1. Fiber-optic ON pulse fires the integrated gate drive unit.
2. IGCT turns on; load current flows anode-to-cathode through low-loss silicon.
3. During commutation, current transfers to the integrated freewheeling diode.
4. Fiber-optic OFF pulse commutates the IGCT to blocking state.
5. Internal NTC thermistor reports junction temperature for thermal protection.
6. High-voltage potting and creepage barriers prevent arcing in polluted cabinets.

Field Service Pitfalls: What Rookies Get Wrong

Inadequate Cooling Causes Thermal RunawayTechs use undersized chillers or poor flow; at 4000A, junction spikes past 150°C in minutes.

• Field Rule: Maintain 6–8 L/min flow; coolant inlet <45°C; monitor ΔT across module.

Poor Torque & Uneven PressureUneven baseplate torque warps the press-pack, cracking internal silicon. Under-torque causes hot spots.

• Quick Fix: Torque to 8–10 Nm in crisscross pattern; re-torque after first heat cycle.

Mixing IGCT Types in ParallelPairing 5SHY3545L0020 with lower-rated 5SHX or older 5SNA parts creates severe current imbalance.

• Field Rule: Parallel only with identical 5SHY3545L0020 modules; match gate fiber lengths.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
