Component Snapshot At-a-Glance

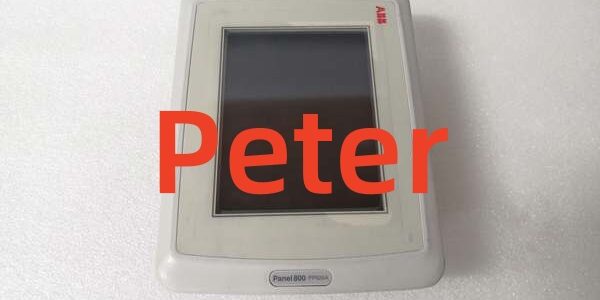

- Model: ABB PP825A
- Alt. P/N: 3BSE042240R3
- Product Series: ABB Panel 800, compatible with 800xA, AC800M and Freelance DCS
- Hardware Type: 5.7 inch CSTN color resistive touch HMI, no physical function keys
- Key Feature: Balanced size with combined Ethernet and serial ports for flexible communication
- Primary Field Use: Local process monitoring, setpoint adjustment and alarm handling for standard industrial control enclosures.
Hard-Numbers: Technical Specifications
- Protocol Support: ABB CS31, Modbus RTU/TCP, Ethernet TCP/IP
- Port Count: 1 × RJ45 Ethernet, 1 × RS-232, 1 × RS-485, 1 × USB 2.0, 1 × 24VDC power
- Baud/Data Rate: 10/100 Mbps Ethernet; up to 115.2 kbps serial
- Operating Temperature: -20°C to +55°C operational; -25°C to +65°C storage
- Isolation Rating: 1500V AC isolation across power and communication circuits
- Power Draw: 10 W maximum, 24 VDC nominal input (18–32 VDC range)
- Display: 5.7” CSTN color, 320×240 resolution, LED backlight
- Panel Rating: IP65 front face, IP20 rear side
- Touch Type: 4-wire resistive touch, compatible with glove operation
- Hot Swap: Not supported; power down fully before removal or replacement
The Real-World Problem It Solves
Small 3.5” HMIs lack screen area for basic graphics and full alarm lists. Larger 6.5” or 10.4” panels take extra cabinet depth and increase material cost for general-duty applications.
Where you’ll typically find it:
- Power plant auxiliary equipment local control cabinets
- Chemical plant standalone process skids and field operation panels
- Water treatment facilities and general manufacturing control stations
This mid-size touch panel fits standard cutouts and supports multiple protocols for routine local control tasks.
Hardware Architecture & Under-the-Hood Logic
This standalone unit uses a dedicated onboard microprocessor. Integrated isolation separates field wiring from core logic to suppress voltage transients.
- Resistive touch layer captures operator inputs and sends signals to the main processor.
- Processor sends data requests over Ethernet or serial lines to connected AC800M controllers.
- Incoming process values and alarm data are parsed and buffered for display.
- Display driver refreshes the 5.7” CSTN screen with live readings and graphical elements.
- Operator commands are encoded into communication frames and transmitted back to the host controller.
- Watchdog circuit triggers a hard reset if communication links lock up for extended periods.
Field Service Pitfalls: What Rookies Get Wrong
Serial Line Polarity Errors Cause Communication LossTechnicians swap RS-485 A and B terminals during wiring. The panel powers on but never establishes data link with the controller.
- Field Rule: Maintain A-to-A and B-to-B polarity at both ends; label all conductors after routing.
Dual Shield Grounding Triggers Unstable ReadingsGrounding cable shield at both HMI and controller creates ground loops. EMI from nearby motor drives leads to flickering values and signal noise.
- Field Rule: Connect shield only at the controller cabinet; leave shield floating at terminals.
Over-Tightening Mounting Screws Damages Front SealExcessive torque warps the panel bezel. This breaks the IP65 rating and lets dust or moisture enter the unit.
- Quick Fix: Torque mounting screws to 0.7–0.9 Nm; install spring washers for vibration resistance.
Incorrect Firmware Cross-Load Causes Boot FailuresLoading firmware built for PP815A or PP836A onto results in blank screens or continuous boot loops.
- Field Rule: Use Panel Builder 800 v5 or newer; flash only firmware designated for hardware.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
