Primary Field Use: Monitor 24VDC safety-critical sensors, ESD switches, and F&G contacts in SIL3 SIS systems.

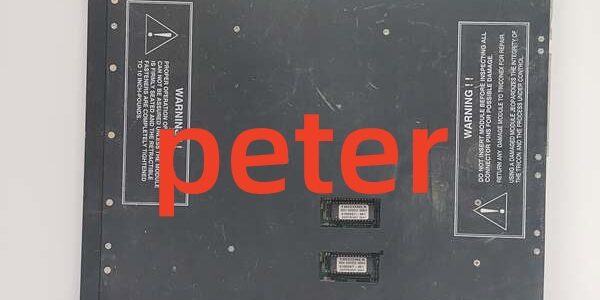

TRICONEX 3564
The Real-World Problem It Solves
Non-isolated DI modules (e.g., 3504E) share a common ground, creating ground loops and cross-talk in mixed-signal panels. Safety circuits need isolation to contain field faults and avoid tripping entire racks.Where you’ll typically find it:
Power plant BMS cabinets for flame detectors, pressure interlocks, and turbine trip contacts
Offshore F&G systems collecting smoke/heat detector inputs and fire damper statusThis module delivers isolated, fast 24VDC sensing with per-channel diagnostics to pinpoint field faults instantly.
Hardware Architecture & Under-the-Hood Logic
Three independent TMR logic legs with opto-isolated input circuits. No shared return paths; each channel has its own optocoupler and sense resistor.
Field 24VDC signal enters channel terminal, passes through current-limiting resistor.
Optocoupler provides 1500VDC isolation, converts field voltage to logic-level pulse.
All three TMR legs sample the signal simultaneously; 2-out-of-3 vote validates state.
Onboard diagnostics check for open/short circuits; flags bad channel to TriBus.
Hot-swap logic maintains rack operation during replacement; inputs default to safe OFF state.
Field Service Pitfalls: What Rookies Get Wrong
Mixing 24VDC and 120VAC Field WiringTechs route AC power cables alongside 24VDC input wires. Breaks isolation, induces noise, triggers false trips.
Field Rule: Run isolated DI wiring in dedicated trays; maintain 15cm minimum separation from AC cables.
Ignoring Per-Channel Diagnostics AlarmsRookies reset faults without troubleshooting. Blown field fuses or corroded contacts stay hidden, risking safety gaps.
Quick Fix: Map every channel fault to a DCS alarm; inspect wiring/terminals within 24 hours.
Field Rule: Tie field 24VDC negative to instrument ground at one end only; avoid multiple grounding points.
TRICONEX 3564
