Component Snapshot At-a-Glance

• Model: Triconex 3700A; base non-upgraded predecessor = original 3700
• Alt. P/N: Direct 0-10VDC upgrade = 3701; isolated upgrade = 3703E
• Product Series: Tricon 3700 Legacy TMR I/O family, fits CX/EX/RX Tricon chassis, pale cream front panel fascia
• Hardware Type: Triple Modular Redundant non-galvanically isolated high-density analog input PCB, single-slot hot-swappable rack module
• Key Feature: Fixed 0–5VDC DC-coupled differential input only, no onboard shunt for direct 4-20mA conversion
• Primary Field Use: Collect low-voltage conditioned sensor signals for non-critical auxiliary SIS monitoring on aging refinery and power plant legacy racks

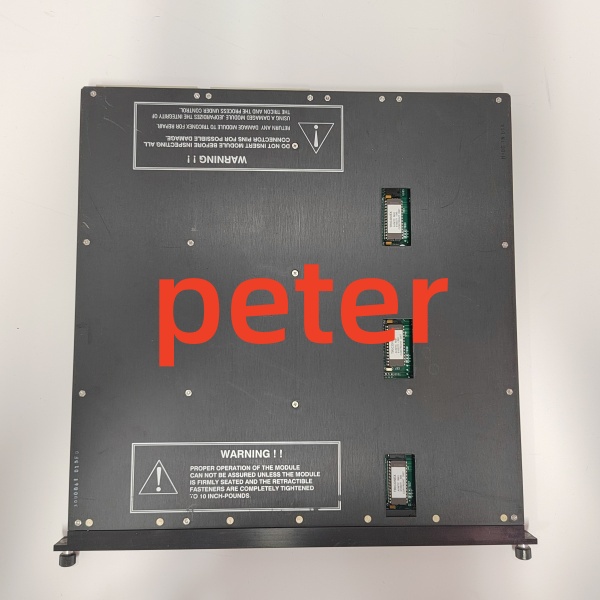

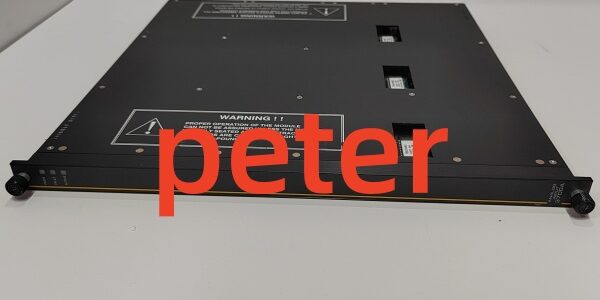

TRICONEX 3700A

Hard-Numbers: Technical Specifications

• Protocol Support: Exclusive proprietary Tricon TriBus redundant backplane bus; no onboard external fieldbus/Ethernet ports
• Port Count: 32 differential analog input channels per single module
• Data Rate: Full-card scan cycle ≤55ms, 12-bit native ADC conversion resolution
• Operating Temperature: 0°C ~ +60°C continuous cabinet operation; -40°C ~ +85°C component storage rating
• Isolation Rating: Zero per-channel galvanic isolation; bulk backplane-to-field surge protection rated 1500VAC only
• Power Draw: 4.7W typical at 5VDC backplane feed, ~940mA nominal operating current
• Supported Input Ranges: Fixed software-locked 0–5VDC with +6% overrange tolerance; no native mA loop support
• CMRR Rating: -80dB @ DC~100Hz common mode rejection, drops sharply with cross-ground wiring mismatch
• Input Impedance: ≥30MΩ DC per differential input leg to limit source loading drift
• Overvoltage Tolerance: Continuous 115VAC/150VDC transient surge withstand on field terminal bank
• Certifications: IEC61508 SIL3, UL Class I Div 2 hazardous location approval

The Real-World Problem It Solves

Early single-density 16-point 3700 base cards ate excess chassis rack slots when plant upgrades added dozens of 5V conditioned transmitters. The 32-point 3700A cuts required rack real estate in half for dense low-voltage signal banks on space-limited legacy CX racks.Where you’ll typically find it:

• Aging coal-fired power plant boiler auxiliary non-SIL critical monitoring cabinets with conditioned RTD 5V converters
• Mid-life refinery off-gas non-hazardous side tank level sensor rack with pre-scaled 0-5V output transmitters
• Legacy natural gas plant utility compressor auxiliary monitoring panels using conditioned low-voltage outputsIt consolidates bulk low-voltage analog points without full chassis rewiring during incremental plant SIS modernization.

Hardware Architecture & Under-the-Hood Logic

Three independent TMR processing legs share a unified common analog ground plane across all 32 input channels; shared ground layout enables high channel density but eliminates any per-channel noise separation capability.

1. Incoming differential 0–5VDC field signals feed front-end amplifier circuits all tied to the module’s single shared analog ground rail.
2. No onboard precision shunt components; 4–20mA transmitters require external 250Ω field shunt to convert current to valid 5VDC input range.
3. Each of three separate redundant TMR legs runs standalone 12-bit analog-to-digital sampling and fixed-range engineering scaling.
4. Three unique converted analog values feed internal hardware voter circuit; 2-out-of-3 majority value routes across TriBus backplane to rack host CPU.
5. Global module-level fault diagnostics flag full-bank overrange or total open loop; cannot pinpoint isolated single-channel ground fault due to shared ground design.

TRICONEX 3700A

Field Service Pitfalls: What Rookies Get Wrong

Unapproved Field Shunt Installation Direct On Module TerminalsNew tech clamps random-value external shunt resistors across input terminals to run 4-20mA transmitters, off-spec resistance pushes signal outside 0-5V span and triggers persistent full-card upscale fault alarms.

• Field Rule: Mount required 250Ω shunt at field transmitter terminal only; never add passive components directly onto 3700A module wiring terminals.

Mixed Earth-Grid Transmitters Loaded On Same Single 3700A CardTechnician wires sensors fed from separate MCC grounding grids onto identical 3700A module, differing earth potentials create wide ground loops causing ±4~9% floating signal drift across all 32 channels.

• Quick Fix: Restrict all devices per single card to one unified plant grounding node; split disparate ground feeds across separate 3700A modules.

Blind Direct Swap 3700A Into 3701 Card Slot Without TriStation ReconfigurationRookie drops 3700A into slot previously occupied by 3701 (0-10VDC calibrated), mismatched input span makes all readings scale 50% low and populate continuous out-of-range diagnostics.

• Field Rule: Update TriStation channel input range parameters offline before any cross-model card replacement between 3700A / 3701 hardware variants.
