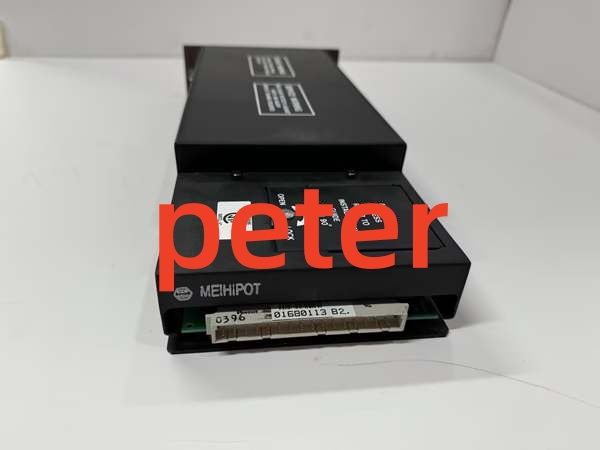

Component Snapshot At-a-Glance
- Model: 8302A
- Alt. P/N: No direct interchange; sibling parts:8300A(85–264V universal AC)、8301A(24VDC input), cannot direct plug replacement without terminal rewiring
- Product Series: Triconex Tricon V9/V10 SIL3 TMR main rack power family

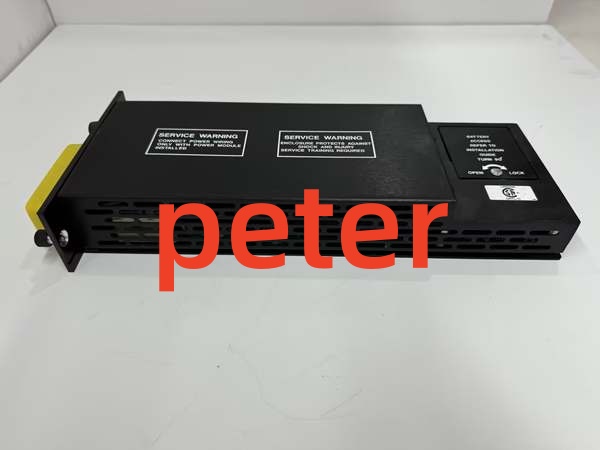

- Hardware Type: Hot-swappable rack-mount AC-DC switching mainframe power supply
- Key Feature: Narrow fixed 230VAC input with passive auto load-sharing for dual redundant parallel pairing
- Primary Field Use: Converts EU standard industrial 230V mains into multi-regulated DC rails to feed main rack CPU and full chassis I/O backplane power
Hard-Numbers: Technical Specifications
- AC Input Range: 185VAC~285VAC,47Hz–63Hz, nominal 230V fixed rating
- Rated Continuous Output Power: 175W @60°C ambient; linear power derate above 60℃ cabinet temp
- DC Output Rails: +5V, ±12V, +24V three isolated regulated backplane outputs
- Isolation Rating: 2000VAC dielectric isolation between AC primary and DC secondary windings
- Operating Temperature: 0℃~+70℃ continuous run; -40℃~+85℃ storage non-operational
- Idle No-Load Draw: 13W typical under nominal 230V mains input
- Hold-Up Time: Min 20ms output retention during brief mains dip events
- Hot-Swap: Full live pluggable on energized SIS main rack without triggering safety trip
- Fault Relay: Form-C dry contact, rated 24VDC/1A for remote cabinet fault alarm wiring
- Certification: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous location approval
The Real-World Problem It Solves
Wide-range 8300A fluctuates excessively on tight-tolerance European 230V fixed grids, generating periodic DC ripple spikes that trigger random analog input channel dropouts. DC-only 8301A requires dedicated site 24VDC UPS cabinets, which adds high installation cost for EU refineries and thermal power plants without pre-existing DC distribution.
Where you’ll typically find it:
- EU onshore natural gas HIPPS SIS main racks hardwired to 230V plant MCC switchgear
- North Sea offshore platform SIS cabinets running off vessel standard 230V shipboard power feed
Narrow fixed input tuning stabilizes DC output against European grid drift and eliminates extra UPS infrastructure investment for AC-only SIS installations.
Hardware Architecture & Under-the-Hood Logic
No onboard CPU; all regulation and cross-unit load balance uses discrete analog PWM circuits calibrated exclusively for 230V fixed mains window.
- Incoming 230VAC first flows through multi-stage common-mode EMI choke to filter VFD and large motor switching induced line noise.
- Isolated high-frequency switching transformer converts filtered AC into unregulated bulk intermediate DC before splitting into three independent rail regulation branches.
- Separate OVP, OCP, thermal shutdown circuits monitor each DC rail individually; single rail fault locks only affected output instead of full module shutdown.
- Backplane edge interlock pins enable passive automatic load balance between paired dual 8302A, zero external jumper required for N+1 redundancy.
- Internal NTC thermistor gradually cuts available output power once PCB core temperature exceeds 58℃ to slow electrolytic capacitor degradation.
- Front panel LED logic: solid green = all output nominal; amber = thermal derate active; red = full fault with remote alarm contact open.
Field Service Pitfalls: What Rookies Get Wrong
Improper cross swap with universal 8300A PSU on fixed 230V terminalsNew field tech installs wide-input 8300A into pre-wired 230V fixed rack slots; overvoltage stress raises internal core temperature slowly, leading to intermittent chassis resets after months of continuous runtime.
- Field Rule: Mark each power terminal block with matching model number; mount 8302A only on fixed 230VAC designated rack positions.
Overloading single standalone 8302A beyond derated continuous wattage limitTechnician fully populates chassis with high-current AI and high-speed communication modules on a single non-redundant supply; sustained overload triggers persistent thermal derate and random DO dropout during high-temperature summer cabinet runtime.
- Quick Fix: Cap single unit continuous chassis load below 155W; add redundant second 8302A once total rack load passes 140W threshold.
Parallel input cabling alongside 400V three-phase high-power conduitsInstaller routes unshielded 230V input wire adjacent to plant high-voltage power trays; induced line distortion creates AC ripple fluctuation, causing PWR-GOOD relay flicker during large pump startup transients.
- Field Rule: Separate 230V input wiring minimum 30cm from high voltage cable runs; fit ferrite clamp on PSU input terminals for high-EMI control room environments.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
