Component Snapshot At-a-Glance
- Model: FBM201 (sub variants: FBM201B mV, FBM201C 0-5V, FBM201D 0-10V)
- Alt. P/N: Matching TA = P0916AA(compression terminal), P0917JK(ring lug terminal)
- Product Series: Foxboro I/A Series DCS, FBM200 standalone analog input family
- Hardware Type: Single rack-slot 8-channel fully galvanic isolated analog input module, current/voltage configurable per hardware variant
- Key Feature: Per-channel independent sigma-delta ADC + onboard jumper selectable HART pass-through without extra add-on boards
- Primary Field Use: Collect 4-20mA pressure/temp/flow transmitter readings across power plant boiler racks and refinery process monitoring cabinets

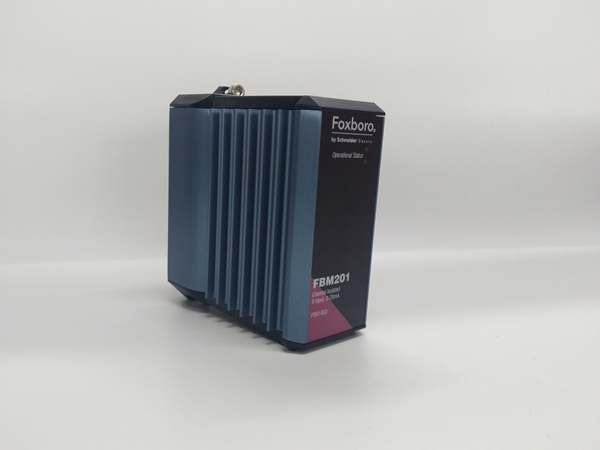

Foxboro FBM201
Hard-Numbers: Technical Specifications
- Protocol Support: 2Mbps Nodebus HDLC backplane + Jumper-enabled HART 31.25kbps field overlay
- Port Count: 8 fully isolated analog input channels per single module slot
- Baud/Data Rate: Fixed 2Mbps Nodebus rack cycle; HART fixed 31.25kbps field speed
- Operating Temperature: 0°C ~ +60°C operational; -40°C ~ +85°C non-operational storage
- Isolation Rating: 600VAC channel-to-channel + channel-to-backplane galvanic isolation per UL spec
- Power Draw: Nominal 3.5W, all operating power pulled from I/A rack backplane 24VDC rail
- ADC Spec: 16-bit sigma-delta per channel, base accuracy ±0.05% full scale
- Input Impedance: 61.5Ω for 4-20mA current mode; 10MΩ for voltage input variants
- Channel Protection: Per-channel <40mA current limiting, short-circuit auto-foldback protection
- Terminal Wire Limit: P0916AA accepts max 1.5mm² stranded copper per compression terminal
The Real-World Problem It Solves
Stacking smaller 4-channel AI cards inflates rack space usage and expands spare parts inventory for bulk transmitter monitoring. Unisolated low-cost input cards regularly generate drifting PV and full-span noise from field ground loop differences across long instrument cable runs.
Where you’ll typically find it:
- Coal-fired utility boiler furnace thermocouple converted 4-20mA input DCS racks
- Refinery crude distillation unit side draw flow & pressure consolidated monitoring panels
- LNG plant storage tank level transmitter bulk I/O cabinet assemblies
Per-channel isolation cuts ground-loop triggered unplanned DCS bad input alarms and shrinks required cabinet footprint for multi-point field sensing.
Hardware Architecture & Under-the-Hood Logic
holds one dedicated onboard microcontroller managing all 8-channel ADC sampling, HART data stripping and Nodebus payload packing; every input channel has standalone opto-isolation circuitry separating field wiring from module internal logic rail, no shared signal conditioning between adjacent channels.
- Field 2-wire transmitter 4-20mA signal lands onto assigned P0916AA terminal block pin and feeds dedicated channel input resistor.
- Isolated front-end filters suppress 50/60Hz mains noise before feeding analog value to independent sigma-delta ADC per channel.
- Onboard HART jumper closes to extract superimposed digital HART instrument data off analog waveform before conversion.
- MCU averages sampled ADC values per software-configured scan window and compiles digital register data into standard Nodebus transmission frames.
- Compiled packet transfers across gold-plated edge connector into rack backplane for controller polling and HMI PV display update.

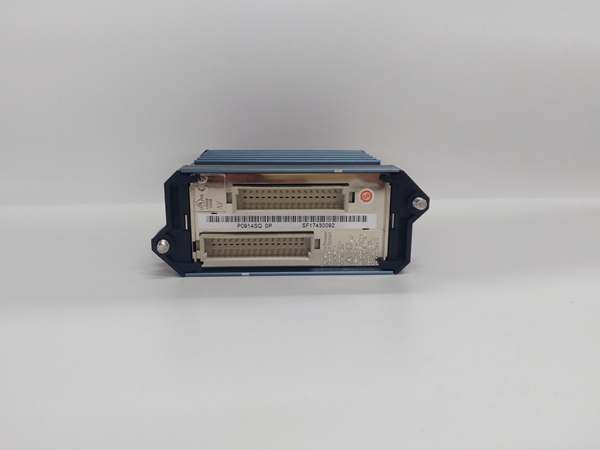

Foxboro FBM201
Field Service Pitfalls: What Rookies Get Wrong
Improper HART Jumper Installation on Unspecified ChannelsNew tech installs HART jumpers across all 8 channels indiscriminately; unused jumpers add stray capacitance, trigger random analog fluctuation and intermittent HART communication dropouts.
- Field Rule: Only fit jumpers to channels wired for HART-capable transmitters; leave unused channel jumper pads open.
Technician inserts onto P0916FH (FBM240 TA base); mismatched pinout routes excess loop voltage into input front end and blows per-channel protection resistors.
- Quick Fix: Restrict exclusive pairing with P0916AA/P0917JK only; discard mismatched base immediately.
Mixed AC power & analog signal cabling inside shared cable trayField crew runs 220V control wiring parallel with instrument leads; induced EMI creates periodic PV swing and sporadic FAULT channel flags at cabinet high ambient heat.
- Field Rule: Separate AC power and analog cabling by minimum 12cm physical gap per ISA wiring guidelines.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
