Component Snapshot At-a-Glance
- Model: FCM2F2
- Alt. P/N: P0914YZ, RH914YZ
- Product Series: Foxboro I/A Series DCS 200-Series FBM Platform
- Hardware Type: Plug-in fiber optic fieldbus repeater / rack extender module
- Key Feature: Dual SC multimode fiber ports with full galvanic isolation between copper backplane and optical bus
- Primary Field Use: Extends proprietary FBM fieldbus up to 2km via fiber to connect remote FBM I/O racks away from main controller cabinet.

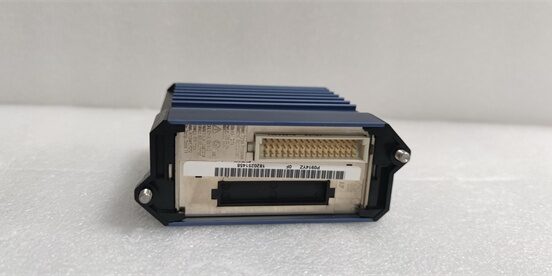

Foxboro FCM2F2
Hard-Numbers: Technical Specifications
- Protocol Support: Foxboro proprietary I/A Fieldbus protocol
- Port Count: 2×SC multimode fiber transceiver ports; single fieldbus copper backplane interface
- Baud/Data Rate: Fixed 2 Mbps native fieldbus transmission speed
- Operating Temperature: -20°C to +70°C continuous cabinet ambient
- Isolation Rating: 2500VAC isolation between backplane copper circuit and fiber transceiver electronics
- Power Draw: 5.2W typical, fed from FBM baseplate 24VDC SELV rail
- Max Rated Fiber Distance: 2000 meters with standard 62.5/125μm multimode fiber
- Hot-Swap Rating: Live insertion/removal permitted on powered baseplate without full rack shutdown
- Vibration Compliance: ISA-S71.04 G3 industrial corrosive environment rated
The Real-World Problem It Solves
Long copper fieldbus runs pick up heavy VFD and high-voltage induced noise, triggering intermittent bus dropouts and offline remote I/O cards in noisy plant areas. Copper cable ground potential differences create large loop currents that fry FBM backplane bus drivers over seasonal temperature shifts.Where you’ll typically find it:
- Refinery off-site tank farm remote FBM I/O instrument racks separated from main control room
- Coal-fired power plant boiler side auxiliary I/O cabinets positioned near high-current motor control centers
- Chemical plant outdoor reactor field I/O enclosures with elevated lightning surge risk
It breaks ground loops and blocks EMI by converting copper bus to fiber, cutting unplanned I/O downtime from cabling interference.
Hardware Architecture & Under-the-Hood Logic
This module uses dedicated bus transceiver IC plus independent fiber transmit/receive chips; all optical circuitry sits behind reinforced isolation barriers separated from backplane power and signal paths.
- Rear gold-finger edge pulls 24VDC baseplate power and raw 2Mbps fieldbus data from FBM rack backplane.
- Onboard bus transceiver cleans incoming electrical bus signal and feeds formatted data to fiber transmit driver.
- Transmit LED chip converts electrical pulses into modulated light for outbound multimode fiber transmission to paired remote .
- Opposite-side receive photodiode converts incoming light signal back to clean electrical fieldbus waveform at remote rack end.
- Local fault monitoring circuit samples fiber link and bus health, driving corresponding front-panel LED alarm states for field troubleshooting.

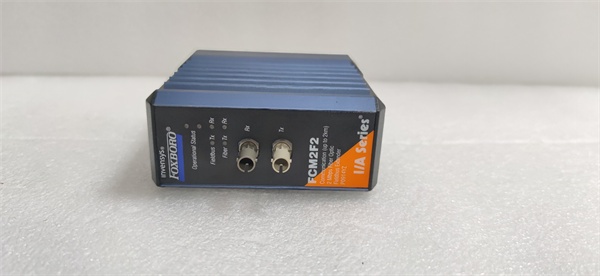

Foxboro FCM2F2
Field Service Pitfalls: What Rookies Get Wrong
Mismatch Multimode/Single-Mode Fiber On SC Ports
New tech plugs single-mode fiber into ’s multimode-only transceiver ports; fiber link LED stays solid red with zero bus traffic even after connector cleaning.
- Field Rule: Restrict installation exclusively to 62.5/125μm multimode fiber; swap to FCM2F10 if single-mode long-distance runs are required.
Ignore Dirty SC Connector End Faces Causing Random Link Dropouts
Oil residue and cabinet dust coats fiber end surfaces after repeated cabinet door swings, creating intermittent light loss that triggers sporadic remote rack full offline faults.
- Quick Fix: Clean SC end faces with certified fiber cleaning wipes before reseating; cap unused fiber ports with dust protection caps.
Pair Non-Matching FCM Variant Between Master/Remote Racks
Installing FCM2F4 or FCM2F10 opposite breaks bus handshake; bus fault LED locks red and all downstream FBM modules fail to communicate.
- Field Rule: Match identical FCM part numbers point-to-point; only pairs with another unit for 2km rated runs.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
