Component Snapshot At-a-Glance

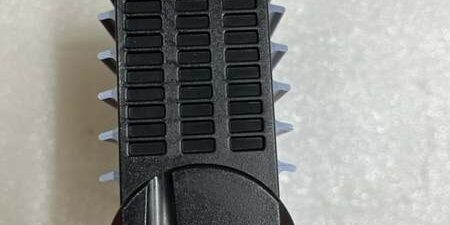

- Model: FCM10E, factory marked alternate PN P0914YM
- Alt. P/N: FCM10EF (fiber optic variant, non-direct drop-in replacement)
- Product Series: Foxboro I/A Series Fieldbus Communication family
- Hardware Type: DIN/rack mount galvanically isolated protocol bridge module, extruded aluminum chassis
- Key Feature: Converts 10Mbps trunk Ethernet ↔ 2Mbps FBM proprietary fieldbus in single compact unit
- Primary Field Use: Aggregate up to 30 field FBM I/O cards and route process data to I/A control processors over system backbone network
Hard-Numbers: Technical Specifications
- Protocol Support: 10Mbps IEEE802.3 Ethernet + proprietary 2Mbps HDLC FBM Fieldbus, galvanically separated bus domains
- Port Count: 1x Coax Ethernet trunk port + 1x multi-drop FBM fieldbus terminal connector
- Baud/Data Rate: Ethernet fixed 10Mbps; FBM fieldbus locked 2Mbps HDLC framing
- Operating Temperature: -20°C ~ +70°C continuous rated; condensation triggers intermittent bus dropouts above 95%RH
- Isolation Rating: 1500VAC galvanic isolation between Ethernet trunk side and FBM fieldbus circuitry
- Power Draw: Max 7W @24VDC, fed from DIN backplane shared 24V redundant rack supply
- Max FBM Loading: Single or redundant paired unit supports maximum 30 individual FBM modules per fieldbus drop
- Status Indicators: Six front-panel LED’s for power, link, bus activity, fault and redundant switchover state
The Real-World Problem It Solves
Legacy I/A layouts without require hardwiring every FBM directly to controller backplane, eating critical rack slots and limiting field cabinet remote placement. Long parallel backplane wiring introduces induced VFD noise that spikes analog signal fluctuation across entire I/O banks.Where you’ll typically find it:
- Coal-fired utility boiler remote field cabinet linking furnace pressure FBM banks to central control room FCP
- Refinery crude fractionation rack grouping tower level/flow FBMs onto single Ethernet backbone drop
- Offshore platform wellhead DCS junction cabinets consolidating dispersed well site analog/discrete FBM clustersConsolidating up to 30 FBM onto one FCM pair drastically cuts cabinet wiring runs and lowers noise-related unplanned loop trips.
Hardware Architecture & Under-the-Hood Logic
This module carries dedicated dual ASIC transceiver chips to handle bidirectional protocol translation; internal isolation barrier blocks surge transients from field wiring from penetrating core Ethernet trunk network circuitry.
- Field-side 2Mbps HDLC data from daisy-chained FBM stack enters fieldbus edge connector
- Onboard receive ASIC buffers incoming FBM frames and repackages payload into standard 10Mbps Ethernet packet formatting
- Trunk-side transmit ASIC routes reformatted data out coaxial Ethernet port toward central DCS control processor
- Downbound setpoint commands from controller Ethernet packets get parsed and re-encoded to native 2Mbps FBM bus framing
- Built-in fault monitor flags bus overload, shorted fieldbus or trunk link loss and illuminates front panel fault LED for field inspection
Field Service Pitfalls: What Rookies Get Wrong
Overloading Single FCM Bus Above 30 Connected FBM UnitsNew techs stack extra spare FBM onto existing drop without secondary FCM split; bus throughput saturates causing random FBM offline and intermittent HMI PV freeze with no consistent fault code logged.
- Quick Fix: Split bus load across second paired once total FBM count hits 27 units to retain safety margin.
Improper Coax Ethernet Termination & Shield GroundingLoose BNC coax crimp or dual-ended shield grounding creates RF reflection; trunk link LED cycles on/off randomly and paired redundant FCM continuously toggles active/standby status.
- Field Rule: Install 50Ω terminator at unused far-end trunk tap; ground coax shield only at control room main earth bar.
Hot-Swap During Live Bus Peak Load ConditionsPulling active primary FCM while all 30 FBMs run full scan spikes instantaneous bus surge; occasional standby unit fails auto-switchover triggering full drop of entire field I/O cluster.
- Field Rule: Toggle redundant FCM to standby via DCS diagnostic menu before card removal to gracefully transfer bus load.
