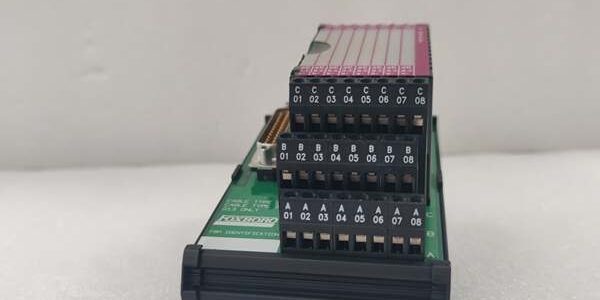

Component Snapshot At-a-Glance
- Model: 0301068B
- Alt. P/N: Factory order code SF09050057, identical mechanical/electrical build, no alternate OEM cross part
- Product Series: Foxboro I/A Series / Evo DCS FBM TA (Termination Assembly) family
- Hardware Type: Passive DIN rail snap-fit terminal base, top edge spring pin connector for plug-in FBM I/O card
- Key Feature: 8 fully independent channels with per-channel galvanic isolation embedded on base PCB
- Primary Field Use: Route field 4-20mA, RTD, discrete digital wiring between site instruments and paired upper FBM I/O module inside control cabinets
Hard-Numbers: Technical Specifications
- Protocol Support: Passive signal routing only; follows 2Mbps redundant I/A backplane bus via mated FBM module
- Port Count: 8 isolated screw-terminal field channels per single TA unit
- Baud/Data Rate: No onboard signal processing; all timing set by mounted FBM upper card
- Operating Temperature: 0°C ~ +60°C continuous cabinet operating; -40°C ~ +85°C non-operational storage
- Isolation Rating: 1500VAC 1-minute dielectric withstand per field channel to backplane connector circuit
- Power Draw: 0W standalone consumption; all loop/bias power supplied downward from installed FBM module
- Supported Wire Gauge: 18AWG ~ 24AWG solid/stranded copper for screw terminal termination
- Physical Dimension: 45mm × 110mm × 115mm; unit net weight 0.34kg
- Mount Standard: 35mm standard DIN rail clip-on installation, side-by-side cabinet stacking compatible
The Real-World Problem It Solves
Field technicians used to direct-terminate field cables onto exposed FBM gold pins, cabinet vibration and thermal expansion loosened bare wiring to trigger intermittent shorted inputs across plant run cycles.Where you’ll typically find it:
- Coal-fired boiler DCS rack: RTD furnace temperature input wiring paired with FBM analog input cards
- Refinery distillation cabinet: Flow transmitter 4-20mA loop termination for process control FBM modules
- Petrochemical compressor MCC panel: Solenoid discrete output wiring for digital FBM output hardwareModular TA design lets single-channel field cable repair happen without pulling full FBM out of rack backplane.
Hardware Architecture & Under-the-Hood Logic
No onboard microcontroller or active power components; PCB integrates discrete opto-isolator stacks separating field wiring side from FBM mating connector circuitry, fully passive signal path only.
- Field instrument wiring locks into individual screw terminal blocks and routes copper traces to dedicated channel isolation components
- Per-channel galvanic barrier blocks field-side ground loop surge and variable cabinet common-mode noise before reaching top connector pins
- Gold-plated spring pin header on TA upper surface mechanically locks and electrically mates to bottom edge of matching FBM I/O card
- All loop excitation and digital supply voltage feeds downward through connector pins from FBM into base’s internal PCB traces
- Physical PCB channel partitioning restricts short-circuit leakage from faulty field wiring to only affected single channel, no cross-channel damage spread
Field Service Pitfalls: What Rookies Get Wrong
Excessive Terminal Screw Torque DamageNew field hands over-tighten terminal screws beyond factory spec, cracking internal PCB copper pads leading to intermittent open signals after cabinet heat cycling.Field Rule: Torque all terminal fasteners to 0.8~1.0 N·m; discard base once cracked PCB pads are visible.
Unused Terminals Left Open to Cabinet EMIApprentices leave empty channel terminal slots uncovered; stray inverter/VFD cabinet noise bleeds into adjacent live measurement circuits and creates erratic DCS readings.Quick Fix: Fit blank plastic filler plugs into every unused terminal position to block airborne electrical interference.
Zero Spacing Between Stacked DIN Rail TA BasesInstallers mount multiple 0301068B units flush together with no clearance; trapped confined heat accelerates isolation component insulation degradation over long runtime.Field Rule: Maintain minimum 5mm vertical/horizontal air gap between adjacent TA assemblies for passive convection cooling.
