Product Core Brief

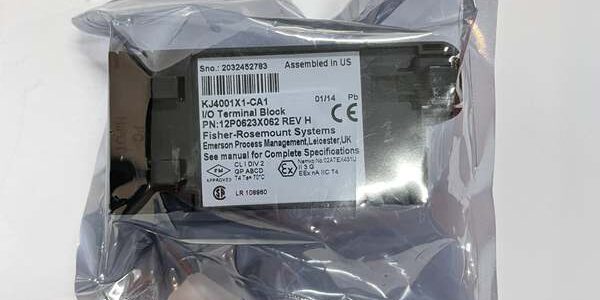

- Model: KJ4001X1‑CA1
- Brand: Emerson
- Series: DeltaV S‑Series
- Core Function: Terminate analog/discrete field signals to DeltaV I/O modules
- Product Type: Passive I/O Terminal Block
- Key Specs: 24 VDC | 1 A/channel | ‑40°C to +70°C | Class I Div 2 / Zone 2
- Note: Discontinued by Emerson; available as new surplus or used tested stock
Key Technical Specifications
- Signal Types: Analog (4–20 mA, 1–5 VDC); discrete (24 VDC dry/wet contact)
- Voltage Ratings: 250 VAC / 60 VDC (system); 30 VDC (field)
- Current Rating: 1 A per channel continuous
- Wire Range: 14–22 AWG, screw‑clamp terminals
- Operating Temperature: ‑40°C to +70°C
- Shock: 10 g, 11 ms half‑sine
- Vibration: 1 mm pp (2–13.2 Hz); 0.7 g (13.2–150 Hz)
- Certifications: CE, UL, CSA; Class I Div 2, Zone 2 (ATEX)
- Dimensions: 120 × 80 × 25 mm
- Weight: ~0.09 kg
- Mounting: Latches to DeltaV S‑Series I/O carriers (passive, no firmware)
Product Introduction
The Emerson ‑CA1 is a passive I/O terminal block for DeltaV S‑Series systems. It provides a secure, field‑wiring interface between sensors/actuators and DeltaV I/O modules in process industries.It uses screw‑clamp connections and clear channel labeling to reduce wiring errors. The unit is hot‑swappable and requires no configuration, enabling fast replacement during maintenance.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify Emerson branding, terminal screw integrity, and latch condition. Cross‑check part number and lot codes against Emerson records.
- Continuity & Isolation Test: Use Fluke 115 to confirm <0.1Ω contact resistance; verify no shorts between channels or to ground.
- Torque & Pull Test: Torque screws to 0.8–1.0 Nm; apply 5 N pull to each wire to confirm retention.
- Fit Check: Test latching/unlatching on a DeltaV S‑Series carrier 10 times to ensure smooth operation.
- Final QC & Packaging: Clean terminals; place in anti‑static bag with test report and 12‑month warranty card.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Wrong Carrier Compatibility: The ‑CA1 only fits S‑Series carriers. M‑Series or older carriers have different latch geometry and will not lock.❗ Overcurrent on Field Circuits: Exceeding 1 A per channel can damage traces and cause intermittent faults. Do not parallel channels for higher current.❗ Incorrect Wire Gauge: Using wire outside 14–22 AWG causes loose connections or stripped screws. Torque to 0.8–1.0 Nm.❗ ESD Damage to Adjacent Modules: While the block is passive, nearby I/O modules are ESD‑sensitive. Always ground via ESD wrist strap.❗ Missing Label Documentation: Unlabeled field wires increase troubleshooting time. Photograph all connections before removal.
Replacement Guide
- Pre‑install: Power down the I/O carrier; lockout/tagout. Photograph wiring and terminal labels.
- Removal: Release side latches; pull the block straight out (no force needed).
- Install: Align with carrier slots; push until latches click. Reconnect wires per photos.
- Power‑on Test: Restore power; verify no I/O module fault LEDs. Test all channels for correct signal readings.
FAQ
A: Passive. No electronics, no firmware, no power draw. It only provides mechanical termination and safety isolation.
Q: Can I hot‑swap it while the carrier is powered?A: Yes. The block is hot‑swap rated. No process interruption occurs during replacement.
A: It is the S‑Series high‑density, hazardous‑area rated model. Other blocks (e.g., KJ3000 series) have different form factors or ratings.
Q: Is this part still in production?A: No. Emerson discontinued the ‑CA1. It is available as new surplus or tested used stock.
Q: Can it be used in Class I Div 1 areas?A: No. It is rated for Class I Div 2 and Zone 2 only. Div 1 requires intrinsically safe barriers or explosion‑proof enclosures.
Q: Does it support both analog and discrete signals?A: Yes. It terminates 4–20 mA analog, 24 VDC discrete, and pulse signals when mated with the correct DeltaV I/O module.
Q: What is the recommended spare part strategy?A: Stock 1–2 units per cabinet. Cross‑reference with Emerson’s recommended replacement part (if available) for long‑term support.
