Hardware Architecture & Under-the-Hood Logic

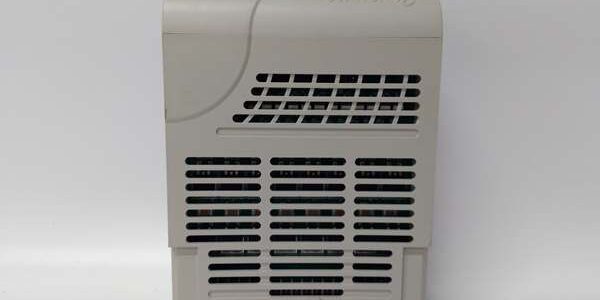

The 1C31122G01 is an electronic module (E-Mod) that plugs directly into the Ovation backplane. It doesn’t process complex logic itself; instead, it acts as a high-speed, isolated switch bank. It takes low-power digital commands from the controller and uses them to close high-power circuits on the field side, all while maintaining 1000V of optical isolation to protect the rest of the rack.

Here is the internal signal flow when the module is doing its job:

1. Command Reception: The Ovation controller sends a digital “close” command over the high-speed backplane to the specific channel on the 1C31122G01.
2. Optical Isolation: The command triggers an internal opto-coupler, which uses light to bridge the gap between the sensitive backplane electronics and the field-side wiring.
3. Switching Action: The opto-coupler activates a solid-state switch (transistor), closing the circuit for that specific channel.
4. Field Current Flow: External field power (e.g., 24VDC) flows through the now-closed channel, energizing the connected device like a relay coil or solenoid.
5. Status Feedback: Simultaneously, the channel’s front-face LED lights up (usually green) to give you a visual confirmation that the output is active.

Field Service Pitfalls: What Rookies Get Wrong

Ignoring Total Current Draw
A classic mistake is assuming you can pull 500mA out of all 16 channels simultaneously. If you energize 16 high-current solenoids at once, you will overload the card’s internal power bus or blow the backplane fuses, taking down the whole module.

• Field Rule: Always calculate your worst-case scenario load. If you have high-current devices, spread them across multiple DO cards to balance the load.

Mixing Up Personality Modules
The 1C31122G01 is just the brain; it often needs a personality module (P-Mod) like the 1C31125G02 or G03 to handle the physical wiring and power sourcing. Plugging field wires directly into the wrong setup or mismatching the P-Mod means your outputs will never energize.

• Field Rule: Check the hardware tree in your Ovation database before you terminate a single wire. Verify if your setup requires a P-Mod for system供电 (system power) or field供电 (field power).

Skipping the Fuse Check
When an output LED is on but the field device isn’t moving, rookies often condemn the card immediately. 9 times out of 10, the issue is a blown fuse in the external marshalling panel or a tripped 24VDC power supply.

• Quick Fix: Grab your multimeter. Verify you have 24VDC present at the terminal block before you even think about pulling the card.
