Description
Product Overview

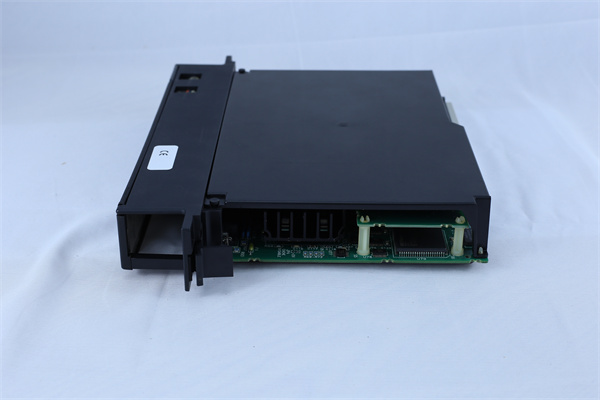

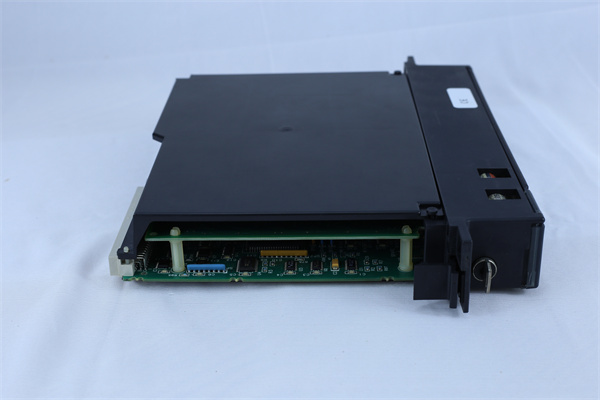

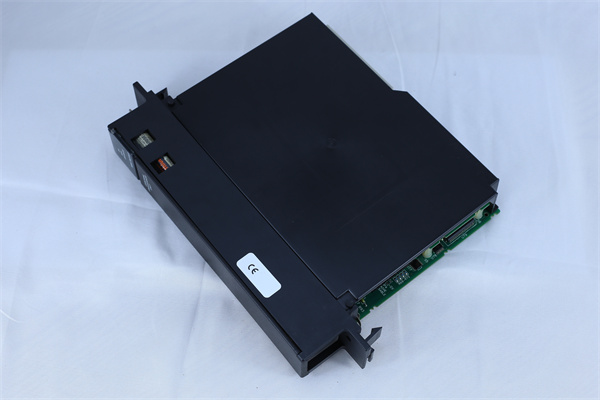

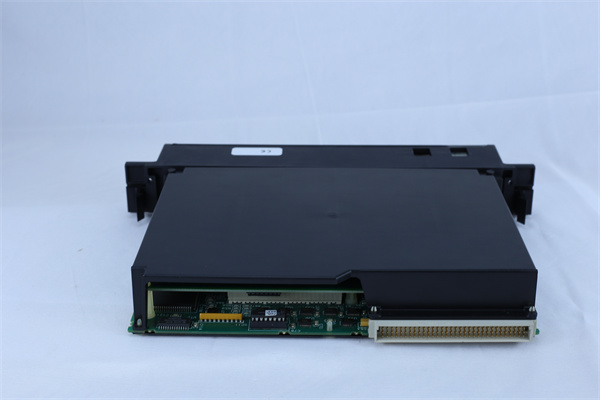

The GE IC697CPM925 is a single – slot programmable logic controller (PLC) CPU module, a product of GE Fanuc as part of the esteemed Series 90 – 70. It is designed to be the brains of industrial control systems, providing real – time control capabilities for a wide range of industrial machinery, processes, and material handling systems. This module serves as the central hub, coordinating operations and ensuring seamless interaction between various components within an industrial setup.
Equipped with a 64 – megahertz 80486dx2 microprocessor, the IC697CPM925 is capable of performing floating – point decimal calculations at an impressive speed of 0.4 microseconds per boolean function. This high – speed processing power enables it to handle complex control algorithms and data processing tasks with ease. Communication with input/output (I/O) and “smart option” modules is achieved through a rack – mounted connection backplane, allowing for a flexible and expandable system configuration. It can support up to 8 k analog I/O and any mixture of 12 k inputs and outputs, making it suitable for diverse industrial applications that require extensive sensor and actuator connectivity.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC697CPM925 |
| Manufacturer | GE |
| Product Type | PLC CPU Module |
| Microprocessor | 64 – MHz 80486dx2 |
| Boolean Function Execution Time | 0.4 microseconds |
| Analog I/O Support | Up to 8 k |
| Digital I/O Support | Up to 12 k (any mix) |
| Input Voltage | 5 volts DC |
| Operating Temperature (Forced Air) | 0 °C – 60 °C |
| Operating Temperature (No Forced Air) | 0 °C – 40 °C |
| Memory | 1 megabyte of battery – backed memory |
| Status LEDs | 4 |
| Power Consumption | 3.3 amps nominal |
| Number of Serial Ports | 1 |
| Mounting Type | Single – slot in compatible rack |
| Firmware Storage | Flash memory (for operating system) |
| Battery – backed Component | Calendar clock |
IC697CPM925
Main Features and Advantages
High – Performance Processing
The 64 – MHz 80486dx2 microprocessor in the GE IC697CPM925 empowers it with rapid processing capabilities. This high – speed operation ensures that it can execute complex control programs and make real – time decisions promptly. For example, in high – speed manufacturing lines where split – second responses are crucial, the IC697CPM925 can quickly process sensor data and issue control commands to actuators, maintaining the smooth flow of production.
Flexible Configuration
With support for a wide range of I/O modules including discrete and analog I/O from the IC 697 family, as well as IC 660 and IC 661 I/O modules, the IC697CPM925 offers great flexibility. It allows users to tailor the system according to specific industrial requirements. Whether it’s a simple system with a few sensors and actuators or a large – scale industrial setup with hundreds of I/O points, this module can be configured to meet the needs.
User – Friendly Setup
The module can be configured using a three – position run or stop switch or programming software. It also supports configuration via serial, parallel, or ethernet interfaces. The software – based setup eliminates the need for dip switches and jumpers, simplifying the installation and configuration process. Password – controlled access and a memory protection key switch enhance security, protecting the device setup from unauthorized changes.
Reliable Memory Management
Featuring 1 megabyte of battery – backed memory, the IC697CPM925 ensures that important data and programs are retained even during power outages. The integrated CMOS battery also powers the calendar clock, maintaining accurate timekeeping. Additionally, the flash memory for operating system firmware allows for easy firmware updates without the need to disassemble the device or replace EPROMs.
IC697CPM925
Application Field
In manufacturing industries, the GE IC697CPM925 is extensively used to control automated production lines. It can manage the operation of robotic arms, conveyor belts, and other manufacturing equipment. For instance, in an automotive assembly plant, it coordinates the movement of robotic arms that assemble car parts, ensuring precise and efficient assembly. By processing data from sensors that detect the position and orientation of parts, it controls the robotic arms to perform accurate pick – and – place operations.
The power generation sector also benefits from the IC697CPM925. In power plants, it can monitor and control various aspects of power generation, such as the operation of turbines and generators. It receives data from sensors measuring parameters like temperature, pressure, and voltage, and based on this data, it adjusts the operation of the equipment to optimize power generation efficiency and ensure stable power output.
In the oil and gas industry, the module is used to control and monitor oil rigs, refineries, and pipelines. It can manage the operation of pumps, valves, and compressors. For example, in a pipeline system, it controls the opening and closing of valves based on pressure and flow rate data, ensuring the safe and efficient transportation of oil and gas.
Related Products
- GE IC697CPX928: A central processor module similar to the IC697CPM925 but with an 80486DX4 microprocessor running at 96 MHz, offering potentially higher processing power for more demanding applications. It can handle up to 12K of I/O and 8K of analog I/O, similar to the IC697CPM925, but may have additional features or enhanced capabilities.
- GE IC693CMM321: A communication module that can work in tandem with the IC697CPM925 to enable communication within industrial networks. It focuses on Genius bus – based communication, which can be useful in systems where this specific communication protocol is required for seamless data transfer between different components.
- GE IC697CMM731: This module provides advanced communication features. It may offer higher data transfer rates and more comprehensive protocol support compared to some other communication – related modules. It can be used in combination with the IC697CPM925 in large – scale industrial automation projects where extensive and high – speed communication is essential.
- GE IC660 and IC661 I/O Modules: These I/O modules are compatible with the IC697CPM925. The IC660 and IC661 series offer a variety of input and output options, such as discrete and analog I/O, allowing users to expand the I/O capabilities of the system based on their specific industrial application requirements.
- GE IC697CPU731: Another CPU – related module in the GE product line. It may have different processing speeds, memory capacities, or feature sets compared to the IC697CPM925. It can be considered as an alternative or used in different sections of a complex industrial control system depending on the specific performance and functionality needs.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC697CPM925, ensure that the power to the rack is switched off to avoid electrical hazards. Familiarize yourself with the installation manual provided by GE. The memory protection key switch should be in the off position, and the toggle switch should be set to the stop position. Check the compatibility of the module with the existing rack and other components in the system. Make sure the rack has an available single – slot for the IC697CPM925 installation.
Maintenance recommendations: Regularly monitor the status LEDs on the GE IC697CPM925 to check for any operational issues. If the module is operating with forced air cooling, ensure that the 70 cfm fan is working properly to prevent overheating. Keep an eye on the battery – backed memory to ensure data integrity; replace the CMOS battery as per the manufacturer’s recommendations. Periodically update the firmware by connecting the module to a compatible computer, inserting the firmware floppy disk, and running the appropriate loader software to keep the module’s performance optimized and to ensure compatibility with other system components.
Maintenance recommendations: Regularly monitor the status LEDs on the GE IC697CPM925 to check for any operational issues. If the module is operating with forced air cooling, ensure that the 70 cfm fan is working properly to prevent overheating. Keep an eye on the battery – backed memory to ensure data integrity; replace the CMOS battery as per the manufacturer’s recommendations. Periodically update the firmware by connecting the module to a compatible computer, inserting the firmware floppy disk, and running the appropriate loader software to keep the module’s performance optimized and to ensure compatibility with other system components.
Product Guarantee
GE stands firmly behind the quality of the GE IC697CPM925. The module typically comes with a standard one – year warranty. During this period, if there are any defects in materials or workmanship, GE will provide repair or replacement services free of charge. GE also offers comprehensive technical support to assist customers with installation, configuration, and troubleshooting. Their team of experts is available to answer any questions and provide solutions to ensure the seamless operation of the IC697CPM925 in industrial control systems. This commitment to quality and after – sales support gives customers the confidence to rely on the GE IC697CPM925 for their critical industrial applications.
