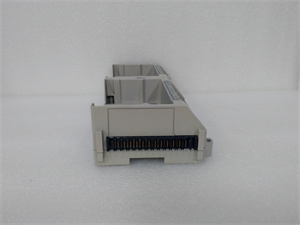

Emerson 1B30035H01: High-Density Digital Input Module for Industrial Control Systems
Emerson 1B30035H01 is a robust digital input module designed for Emerson’s Ovation Distributed Control System (DCS). This module specializes in acquiring and processing digital signals from field devices such as switches, sensors, and relays, ensuring reliable data transmission for real-time monitoring and control. Engineered for harsh industrial environments, Emerson 1B30035H01 is widely used in power generation, oil and gas, and manufacturing industries. Its high channel density, fault-tolerant design, and seamless integration with Emerson Ovation DCS make it a critical component for enhancing operational safety and efficiency.
Technical Parameters
| Category | Specifications |
|---|---|
| Digital Inputs | 16 channels (24 V DC, dry/wet contact) |
| Input Voltage | 24 V DC ±10% |
| Isolation | 1500 V AC between channels and system |
| Response Time | ≤5 ms per channel |
| Communication | RS-485, integrates with Ovation DCS via backplane |
| Power Consumption | 3.5 W (typical) |
| Dimensions | 130 mm × 30 mm × 25 mm |
| Weight | 180 g |
| Material | Aluminum alloy, corrosion-resistant coating |
| Protection Rating | IP65 |
| Operating Temp. | -40°C to +70°C |
Emerson 1B30035H01
Key Advantages and Features
- High Channel Density: 16 digital inputs in a compact form factor reduce cabinet space and wiring complexity.
- Advanced Isolation: 1500 V AC isolation prevents signal interference and equipment damage in high-noise environments.
- Fast Response: ≤5 ms per channel ensures real-time feedback for critical safety systems.
- Durability: Aluminum alloy housing with IP65 rating protects against dust, moisture, and chemical exposure.
- Plug-and-Play Integration: Pre-configured for Emerson Ovation DCS, minimizing setup time.
- Case Study: A European steel plant reduced unplanned downtime by 22% after deploying Emerson 1B30035H01 to monitor conveyor belt safety interlocks.
Applications and Use Cases
Primary Industries:
- Power Generation: Turbine valve status monitoring, grid protection systems.
- Oil & Gas: Wellhead safety shutdown (SSD) systems, pump station control.
- Manufacturing: Machine tool interlocks, production line fault detection.
Application Example:
In a U.S. chemical processing facility, Emerson 1B30035H01 was deployed to monitor emergency shutdown (ESD) valves. The module’s rapid response time and isolation capabilities ensured zero false triggers during voltage fluctuations, enhancing plant safety compliance.
Competitive Differentiation
Compared to standard digital input modules, Emerson 1B30035H01 provides:
- Higher Isolation Voltage: 1500 V AC vs. typical 1000 V AC in similar modules.
- Superior Noise Immunity: Optimized for electromagnetic interference (EMI)-heavy environments.
- Lower Total Cost of Ownership: Reduced maintenance needs due to ruggedized construction.
Emerson 1B30035H01
Selection Guidelines
- System Compatibility: Confirm integration with Emerson Ovation DCS or third-party controllers via supported protocols.
- Environmental Suitability: Ensure IP65 rating aligns with installation area (e.g., outdoor vs. controlled indoor settings).
- Signal Type: Verify compatibility with dry/wet contact field devices.
- Future Scalability: Consider spare channels for system expansion.
Installation and Usage Notes
- Wiring: Use twisted-pair cables for noise-sensitive applications.
- Grounding: Properly ground the module to avoid electrostatic discharge (ESD) risks.
- Firmware Updates: Regularly check for firmware upgrades via Emerson’s support portal.
- Diagnostics: Leverage built-in LED indicators for quick fault identification.
