Description
Hard-Numbers: Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 16, isolated, standard switch-over response in redundant configuration |
| Output Signal Range | 4 to 20 mA DC |
| Withstanding Voltage | Between output and system: 1500 V AC for 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA (approximately ±0.24% of 20 mA full scale) |
| Data Update Period | 10 ms |
| Drift due to Ambient Temperature Change | ±16 µA per 10°C change |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Weight | Approximately 0.4 kg |
| External Communication | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| HART Communication | Available (supports one HART device per channel) |
| HART Firmware Requirement | EB401 firmware must be rev.2 or later when installed in ER bus node unit with HART function |
| Redundant Configuration Support | Yes (dual-redundant with two identical modules of same suffix codes) |
| Switch-Over Response Time | Standard type (suffix 5) ≤ 100 ms maximum output dip below 4 mA during failover; Fast type (suffix 6) ≤ 2 ms for fast-responding field devices |
| Operating Temperature | 0°C to +60°C (when installed in ER bus node unit; extended temperature options available with suffix codes 1 and 3) |
| Channel Isolation | Galvanic isolation per channel |

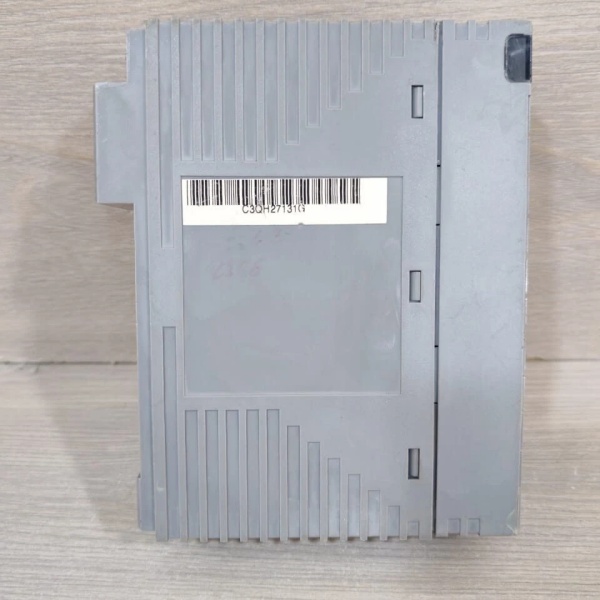

YOKOGAWA AAI543-S50
The Real-World Problem It Solves
Your process control system requires analog output to smart valve positioners with HART communication for diagnostics, configuration, and partial stroke testing (PST), but conventional analog output modules lack digital communication capability. The AAI543-H50 solves this by providing 16 isolated 4-20 mA outputs with HART protocol superimposition on each channel, enabling seamless integration with HART-enabled smart field devices while maintaining analog signal integrity for process control.
Where you’ll typically find it:
- CENTUM VP Field Control Station (FCS) FIO racks for controlling HART-enabled smart valve positioners, actuators, and smart instruments in process control applications (oil & gas refining, chemical processing, power generation)
- ProSafe-RS Safety Control Station (SCS) for non-safety-critical analog outputs with HART communication in safety instrumented systems (note: for SIL3 safety functions, use dedicated ProSafe-RS N-IO safety modules)
- ER bus node units (ANB10S/D, ANB11S/D) with EB401 firmware rev.2 or later for HART communication functionality
- Plant Resource Manager (PRM) integration for remote device diagnostics, configuration, and partial stroke testing (PST) of HART valve positioners
You get a compact, hot-swappable module with 16 isolated channels that prevents ground loops and crosstalk between outputs, dual-redundant support for high availability, and HART communication per channel for digital integration with smart field devices without requiring separate HART multiplexers.
Hardware Architecture & Under-the-Hood Logic
The AAI543-H50 is a 16-channel analog output module designed for Yokogawa’s FIO (Field Input/Output) architecture with HART communication capability. Each output channel is electrically isolated from system and from other channels using galvanic isolation, preventing ground loops and enabling direct connection to field devices without isolation barriers. The module converts digital control values from the FCS or SCS into a 4-20 mA current signal using a precision digital-to-analog converter (DAC) per channel. HART communication is superimposed on the 4-20 mA analog output using Frequency Shift Keying (FSK) modulation, enabling bidirectional digital communication with HART-compatible smart devices. Each channel supports one HART device, allowing diagnostics, configuration, and partial stroke testing (PST) of valve positioners. In dual-redundant configuration, two identical modules operate in active-standby mode with synchronized output values; upon detecting a failure in the active module, standby module takes over control with a maximum switch-over time of 100 ms (standard type).
- Digital control value from FCS/SCS CPU is converted to 4-20 mA analog output by DAC per channel (16 channels)
- HART modem superimposes FSK digital signals on the 4-20 mA analog output for communication with smart field devices
- Output isolation barrier provides 1500 V AC galvanic isolation between each output channel and system ground, preventing ground loops
- Current output driver delivers 4-20 mA to load resistances up to 750 Ω, compatible with most HART-enabled valve positioners and I/P converters
- HART communication channel handles bidirectional digital data exchange with one HART device per channel (diagnostics, configuration, PST)
- Redundancy controller synchronizes output values between active and standby modules via backplane bus; failover occurs when active module fault detected
- Watchdog timer and self-diagnostics continuously monitor module health; fault status reported to FCS/SCS for alarm notification
Field Service Pitfalls: What Rookies Get Wrong
Insufficient EB401 Firmware Version for HARTInstalling AAI543-H50 in an ER bus node unit without verifying EB401 firmware is at rev.2 or later results in non-functional HART communication. The module may operate correctly for analog 4-20 mA outputs, but HART commands fail intermittently or completely, preventing diagnostics and partial stroke testing of smart valve positioners.
- Field Rule: Verify ER bus node unit (EB401) firmware version before installing AAI543-H50; upgrade to rev.2 or later if required for HART communication functionality.
Mixing Suffix Codes in Redundant HART ConfigurationInstalling one AAI543-H50 (HART, standard switch-over) with a different suffix variant (e.g., AAI543-H60 HART fast switch-over) in a dual-redundant setup creates HART communication incompatibility during failover. The two modules have different failover response times and may not synchronize HART sessions correctly, causing loss of HART communication during module failover.
- Field Rule: For redundant HART analog output configuration, both modules must have identical suffix codes (model, HART protocol, switch-over response type, explosion protection rating).
Exceeding HART Device Load per ChannelConnecting multiple HART devices to a single output channel using HART splitters or multidrop configuration causes communication conflicts and unreliable HART data. Each AAI543-H50 channel supports only one HART device; multidrop connections result in intermittent or failed HART communication.
- Field Rule: Connect only one HART device per AAI543-H50 channel; for multiple HART devices, use additional channels or dedicated HART multiplexer modules.
Ignoring HART Communication Timing ConstraintsHART communication requires minimum timing intervals between commands to ensure reliable data transmission. Rapid polling from host systems (PRM, DCS) can overload the HART communication channel, causing missed commands or incomplete diagnostic data from smart valve positioners.
- Field Rule: Configure HART polling intervals according to device manufacturer recommendations; typical minimum interval is 500 ms between commands for reliable HART communication.
Neglecting HART Communication During Module FailoverDuring redundant module failover, HART communication sessions are not automatically transferred to the standby module. Smart valve positioners may lose HART connection temporarily, causing partial stroke test (PST) failures or diagnostic data loss during failover.
- Field Rule: Configure HART communication reconnection delays in host systems (PRM, DCS) to allow re-establishment of HART sessions after module failover; typically allow 2-5 seconds for reconnection.
YOKOGAWA AAI543-S50
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
- Reference Price: Approximately USD2,36 for AAI543-H50/K4A00 variant with KS cable interface adapter (retail price for AAI543-H50/A4S00 with pressure clamp terminal block is approximately USD2,988.00; actual pricing may vary significantly based on supplier, quantity, and options)
- Lead Time: Typically in stock for immediate shipment; 7-10 working days for some suppliers with specific option codes
- Warranty: Usually 12 months from date of shipment (varies by supplier)
- Condition: New and original (factory sealed); refurbished or used options may be available at lower cost
- Availability: Widely available from Yokogawa authorized distributors and industrial automation spare parts suppliers
Reference Documents
- General Specifications: Analog I/O Modules (for FIO), GS 33K50F60-50E, Yokogawa Electric Corporation
- Product Information: Yokogawa AAI543-H50 Analog Output Module, various suppliers (6G Controls, Measuring Instruments, Triconex1, Quicktime Online)
- HART Communication Requirements: ER bus node unit EB401 firmware must be rev.2 or later for HART functionality
- Application Notes: ProSafe-RS HART Communication with Plant Resource Manager (PRM) for Partial Stroke Testing (PST) of valve positioners
Important Note: The AAI543-H50 is designed for process control applications (CENTUM VP) and non-safety-critical outputs with HART communication in ProSafe-RS systems. For safety instrumented functions requiring SIL3 compliance with HART communication, use Yokogawa’s dedicated ProSafe-RS N-IO safety modules with appropriate safety certifications.
