Description
Hard Numbers: Technical Specifications
- Module Type: TMR Analog Combo I/O
- Analog Inputs: 16 channels (supports 4–20 mA, 0–5 V, or ±10 V configurations)
- Analog Outputs: 8 channels (supports 4–20 mA or 0–5 V configurations)
- Resolution: 16-bit for inputs, 14-bit for outputs
- Accuracy: ±0.1% of full scale
- Input Impedance: 250 Ω (for 4–20 mA), >1 MΩ (for voltage inputs)
- Output Load: ≤ 600 Ω (for 4–20 mA), ≥ 2 kΩ (for voltage outputs)
- Response Time: ≤ 10 ms (typical for input to output processing)
- Isolation: Optically isolated inputs/outputs (up to 1500 V)
- Communication: Internal MicroNet proprietary bus protocol
- Power Supply: 18–32 VDC (24 VDC nominal via backplane)
- Power Consumption: Approx. 15–25 W
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Certifications: CE, UL, CSA, ATEX (configuration-dependent), marine certifications (e.g., DNV, ABS)

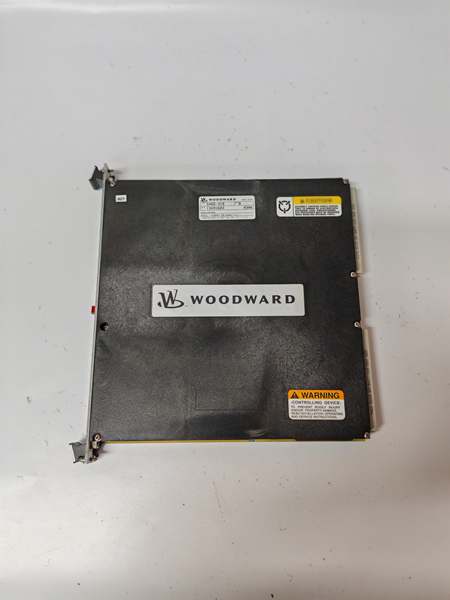

Woodward 5466-316
The Real-World Problem It Solves
In mission-critical power generation or oil & gas facilities, a single faulty sensor, frayed wire, or electrical noise can trigger a catastrophic false trip, costing millions in downtime. The Woodward 5466-316 is engineered specifically to eliminate this vulnerability.
By employing TMR architecture, the 5466-316 takes three independent readings for every critical process variable (e.g., turbine exhaust temperature, fuel valve position, or pressure). It then uses hardware-based 2oo3 voting logic to instantly identify and discard erroneous or drifting signals. This ensures that the control system always acts on clean, validated data, allowing the plant to tolerate single-point sensor failures without shutting down. Furthermore, as a “Combo” module, it reduces the number of physical modules required in the chassis, saving valuable panel space while maintaining high integrity.
Where you’ll typically find it:
- In the I/O racks of gas and steam turbine control panels (e.g., Frame 7EA/9E), processing critical temperature and pressure transmitters.
- Managing the analog feedback loops for steam turbine control valves (servo positioning).
- Handling critical actuator controls and sensor feedback in offshore platform compressor stations.
Hardware Architecture & Under-the-Hood Logic
Unlike standard PLC I/O cards that merely pass raw data to the main CPU, the 5466-316 features localized intelligence, hardware-level voting, and robust signal conditioning.
- Localized Signal Processing: Each channel features dedicated sigma-delta ADCs (Analog-to-Digital Converters) for inputs and precision DACs (Digital-to-Analog Converters) for outputs. This offloads the heavy lifting from the main CPU, guaranteeing deterministic scan times regardless of system load.
- Hardware 2oo3 Voting: For TMR configurations, the module evaluates the three incoming signals against predefined tolerance bands. If Channel A reads 50.1%, Channel B reads 50.2%, and Channel C reads 12.5% (a failed sensor), the module automatically votes out Channel C and presents the averaged A/B value to the CPU.
- Advanced Diagnostics: The module continuously performs open-circuit detection (for 4-20mA loops), short-circuit protection, and watchdog timing. Any anomaly is instantly flagged to the CPU via the backplane, long before it can impact the physical process.

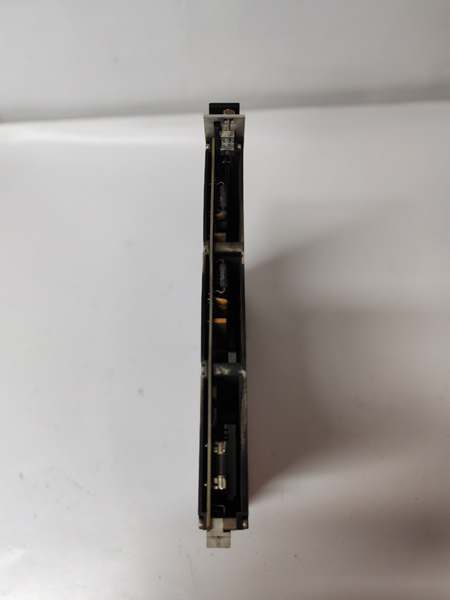

Woodward 5466-316
Field Service Pitfalls: What Rookies Get Wrong
Assuming All “5466” Modules Are Interchangeable
Rookies often see a spare 5466-314 or 5466-322 on the shelf and assume it’s a direct drop-in replacement for a failed 5466-316. While they share the same form factor and backplane connector, the internal channel configurations (e.g., Combo I/O vs. Input-only, current vs. voltage) differ drastically.
- Field Rule: Never swap a failed I/O module with a different sub-variant unless you have verified the exact wiring schematic and GAP (Graphical Application Programmer) configuration. Mismatched I/O types can lead to blown fuses on the module or, worse, a short circuit that takes down the entire 24VDC distribution panel.
Neglecting Loop Calibration After a Hot-Swap
Woodward 5466 modules are factory-calibrated with high-precision resistors and store their calibration coefficients in non-volatile memory. However, rookiеs often assume that because the module is “digital,” it requires no calibration after replacement. While the module itself is highly accurate, the entire control loop(including field transmitters and actuator springs) may drift over time.
- Quick Fix: After hot-swapping a 5466-316 module, always perform a “forced calibration” or “trim” routine from the main CPU (using Woodward Toolkit or GAP). Compare the new module’s readings against a known calibrated source. If the new module reads even 0.5% differently than the old one, adjust the software scaling factors to ensure a bumpless transfer and prevent actuator movement.
Creating Ground Loops with Improper Shielding
In TMR systems, signal integrity is everything. Rookies often connect the shield drain wire of a 4-20mA transmitter to the module’s ground terminal andthe sensor’s local ground at the turbine. This creates a ground loop. The 5466-316’s high-precision ADCs will pick up this stray AC noise, causing the turbine’s exhaust temperature spread or vibration readings to fluctuate wildly, which can artificially trigger a turbine trip.
- Field Rule: For any analog input connected to a 5466-316, ground the shield drain wire at the module end ONLY. Keep all 24VDC power supplies and signal commons meticulously isolated from earth ground unless specifically dictated by the panel’s single-point grounding scheme.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
